Barreira, Ceará, Brazil presents an excellent location for year-round solar energy generation through photovoltaic (PV) systems. Located in the tropical region where sunlight remains consistent throughout most of the year, this area experiences seasons characterized more by wet and dry periods rather than the traditional temperature-based seasons found in temperate climates.

Solar Energy Production Potential

The solar energy output data for Barreira demonstrates strong and consistent performance across all seasons. The location generates between 5.90 and 7.09 kWh per day for each kilowatt of installed solar capacity, indicating reliable energy production throughout the year. Spring emerges as the peak season for solar generation, producing 7.09 kWh/day per kW of installed capacity. Winter follows closely with 6.23 kWh/day, while summer provides 6.06 kWh/day. Autumn shows the lowest output at 5.90 kWh/day, though this still represents strong production levels that many locations would consider excellent. For optimal year-round energy production, solar panels should be installed with a fixed tilt angle of 4 degrees facing north. This angle maximizes total annual solar output by accounting for the sun's path throughout the year and the location's proximity to the equator.

Environmental and Weather Challenges

Several environmental factors in Barreira could potentially impact solar energy production, though most can be effectively managed with proper planning and maintenance. Dust and Particulate Accumulation: The tropical climate and potential for dust storms or high particulate matter in the air can reduce panel efficiency by blocking sunlight from reaching the photovoltaic cells. Regular cleaning schedules and automated cleaning systems can help maintain optimal performance. High Humidity and Moisture: Tropical locations experience elevated humidity levels that can lead to corrosion of metal components and degradation of electrical connections over time. Using marine-grade or tropical-rated equipment with proper sealing and ventilation helps prevent moisture-related issues. Intense UV Radiation: While beneficial for energy production, the strong tropical sun can accelerate the degradation of panel materials and mounting systems. Selecting high-quality panels with robust anti-reflective coatings and UV-resistant materials extends system lifespan.

Seasonal Weather Patterns

Wet Season Impacts: Heavy rainfall during wet seasons can temporarily reduce solar output due to cloud cover, though it also provides natural panel cleaning. Proper drainage systems around installations prevent water accumulation that could damage equipment. Potential for Extreme Weather: Tropical regions may experience severe storms or high winds. Robust mounting systems designed for local wind loads and proper structural engineering ensure panels remain secure during adverse weather events.

Preventative Measures for Optimal Performance

Installing solar systems in Barreira requires specific considerations to maximize energy production:

• Implement regular cleaning protocols to remove dust, pollen, and debris
• Use corrosion-resistant mounting hardware and electrical components rated for tropical conditions
• Install proper drainage and ventilation systems to manage moisture
• Select panels and inverters with high temperature coefficients and cooling systems
• Design mounting structures to withstand local wind and weather conditions

Overall Assessment

Despite these environmental considerations, Barreira represents a highly favorable location for solar energy generation. The consistent year-round production levels, with spring offering peak generation opportunities, make this location well-suited for both residential and commercial solar installations. With proper equipment selection and maintenance practices, solar systems can operate efficiently and reliably in this tropical environment while delivering excellent energy returns throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

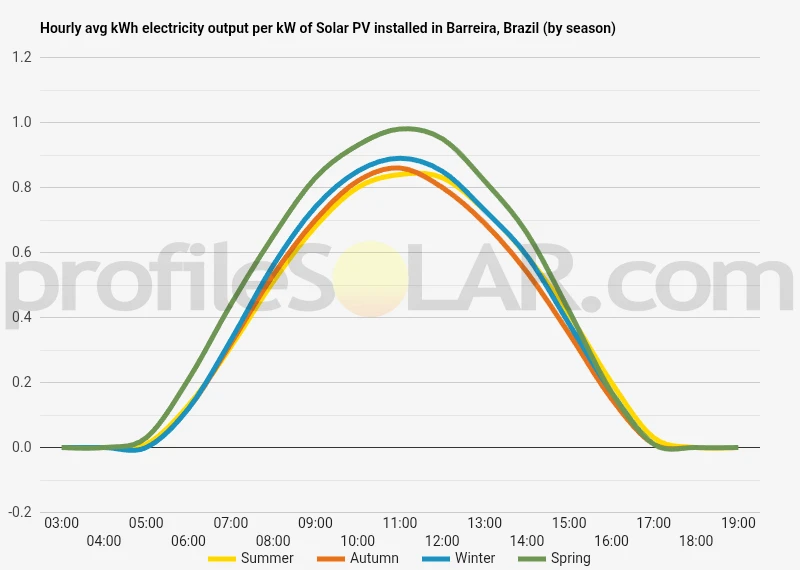

Solar output per kW of installed solar PV by season in Barreira

Seasonal solar PV output for Latitude: -4.3724, Longitude: -38.6117 (Barreira, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 4° North in Barreira, Brazil

To maximize your solar PV system's energy output in Barreira, Brazil (Lat/Long -4.3724, -38.6117) throughout the year, you should tilt your panels at an angle of 4° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Barreira, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Barreira, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 4° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	11° North in Autumn	20° North in Winter	2° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Barreira, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Barreira, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Barreira, Brazil

Topographical Overview of Barreira Region

The area surrounding Barreira in Ceará state, northeastern Brazil, is characterized by relatively flat to gently rolling terrain typical of the Brazilian caatinga landscape. This semi-arid region sits at a modest elevation, with the local topography featuring low hills and broad valleys that create a generally favorable environment for large-scale development projects. The terrain consists primarily of sedimentary formations with occasional rocky outcrops and weathered granite intrusions that add subtle variation to the otherwise gentle landscape.

The region experiences a tropical semi-arid climate with distinct wet and dry seasons. During the dry season, which extends for much of the year, the landscape takes on a characteristic appearance with sparse vegetation and clear atmospheric conditions. The wet season brings temporary transformation to the area, though the overall topographical features remain consistent throughout the year.

Drainage and Water Features

The local drainage pattern consists of seasonal streams and small rivers that flow primarily during the rainy season. These waterways have carved shallow valleys and depressions across the landscape, creating a network of low-lying areas interspersed with slightly elevated plateaus and ridges. The intermittent nature of most water features in this semi-arid environment means that large areas remain dry and stable for extended periods.

Small reservoirs and seasonal lakes dot the landscape, most of which are human-made structures designed to capture and store rainwater during the wet season. These water features are typically surrounded by relatively flat areas that extend outward from their shores, creating expansive zones of level terrain.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Barreira region would be the elevated plateaus and gentle ridges that offer good drainage and minimal flood risk. These areas typically feature stable soils and gradual slopes that facilitate construction and maintenance activities while providing excellent exposure to solar radiation throughout the day.

The broad valley floors between the low hills present another excellent opportunity for solar development, particularly in areas that remain well-drained and are not subject to seasonal flooding. These locations often provide the largest contiguous areas of relatively flat land, which is ideal for maximizing the efficiency of solar array layouts and minimizing construction costs.

Areas with southern-facing gentle slopes would be particularly advantageous, as they can optimize solar panel orientation while maintaining manageable terrain for installation and maintenance equipment. The region's generally open landscape, with minimal tree cover due to the semi-arid climate, means that shading concerns are typically minimal across most potential development sites.

The stable geological conditions and low seismic activity in this part of Brazil make it well-suited for the concrete foundations and mounting systems required for large solar installations. Additionally, the relatively sparse population density in rural areas around Barreira means that extensive tracts of suitable land are potentially available for development without significant displacement of existing communities or agricultural operations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
