Solar Energy Potential in Batatais, São Paulo, Brazil

Batatais, São Paulo, Brazil, located at latitude -20.892 and longitude -47.5839, offers promising conditions for solar energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns, making it suitable for photovoltaic (PV) solar installations. The seasonal solar production data shows a favorable pattern with moderate variations across the year. During summer months, solar panels can generate approximately 6.70kWh per day for each kilowatt of installed capacity. This drops slightly to 5.80kWh/day during autumn and reaches its lowest point in winter at 5.23kWh/day. Production then increases to 6.22kWh/day in spring as daylight hours extend.

Seasonal Variations and Optimal Times

The difference between the best season (summer) and the worst season (winter) is only about 1.47kWh/day per installed kilowatt, representing a relatively modest 22% seasonal variation. This consistency is advantageous compared to locations at higher latitudes where winter production can drop dramatically. The most productive periods for solar generation in Batatais occur during the summer months (December through February), followed by spring (September through November). Even during the less productive winter season, the output remains reasonably good, making year-round solar electricity generation viable.

Optimal Panel Installation

For fixed solar panel installations in Batatais, São Paulo, the ideal tilt angle to maximize year-round production is 20 degrees facing North. This orientation optimizes the angle of incidence between the sun's rays and the panels throughout the year, accounting for the location's position in the Southern Hemisphere.

Environmental and Weather Considerations

While Batatais enjoys favorable solar conditions overall, there are some environmental factors that could impact solar production. The region experiences a distinct wet season, typically during summer months, when increased cloud cover and rainfall may occasionally reduce solar efficiency despite the longer daylight hours. Dust accumulation can also be a concern during dry seasons, as the region may experience periods of drought and increased airborne particles. Agricultural activities in the surrounding areas might contribute to dust that settles on panels, gradually reducing their efficiency.

Preventative Measures

To maximize solar energy production in Batatais, São Paulo, several preventative measures are recommended:

• Install an automated cleaning system or implement a regular cleaning schedule to remove dust and debris, particularly during dry seasons
• Use anti-reflective coated solar panels that perform better in diffuse light conditions during cloudy days of the wet season
• Consider slightly adjusting the tilt angle seasonally if the mounting system allows, to optimize for winter production when output is naturally lower
• Install lightning protection systems, as tropical regions can experience intense thunderstorms
• Select panels with good heat tolerance, as high temperatures can slightly reduce PV efficiency

With these considerations addressed, Batatais represents an excellent location for solar PV installations, offering consistent and substantial energy production throughout the year with relatively minor seasonal fluctuations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

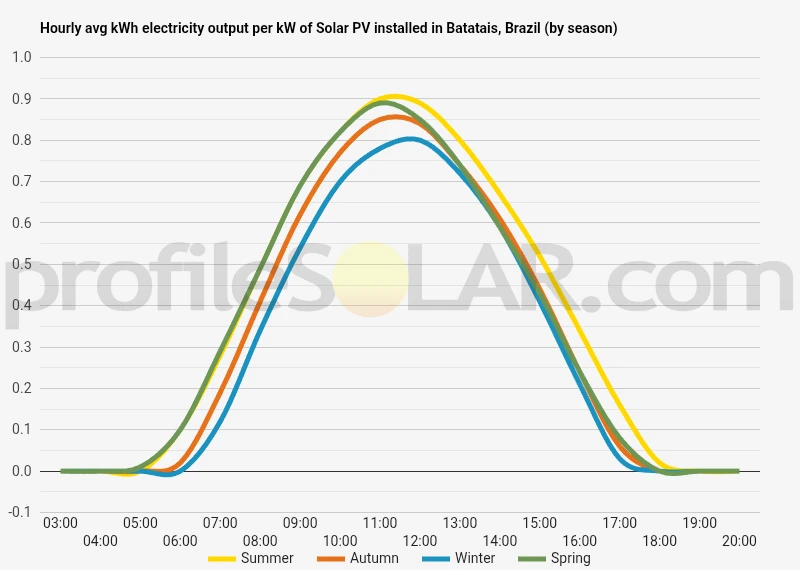

Solar output per kW of installed solar PV by season in Batatais

Seasonal solar PV output for Latitude: -20.892, Longitude: -47.5839 (Batatais, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Batatais, Brazil

To maximize your solar PV system's energy output in Batatais, Brazil (Lat/Long -20.892, -47.5839) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Batatais, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Batatais, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	27° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Batatais, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Batatais, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Batatais, Brazil

The topography around Batatais, Brazil presents a varied landscape characterized by gently rolling hills and plateaus typical of the interior region of São Paulo state. Situated at an elevation of approximately 862 meters above sea level, Batatais lies within the Paraná River basin, one of Brazil's major hydrographic regions. The terrain features moderate undulations rather than steep mountains, creating an open landscape with good exposure to the sky.

Regional Landscape Features

The area surrounding Batatais forms part of the larger physiographic unit known as the Paulista Peripheral Depression, which transitions into the Western Plateau of São Paulo. This region is marked by smooth, rolling hills with gradual slopes generally not exceeding 15 degrees. The local relief is punctuated by shallow valleys formed by numerous streams and small rivers that flow through the municipality, eventually feeding into the Grande River system. The soil composition is predominantly latosols (oxisols), which are reddish in color due to their high iron oxide content. These soils developed from basaltic rock weathering, which is common throughout this region. The natural vegetation was originally cerrado (savanna) and tropical forest, though much has been converted to agricultural use over the centuries.

Suitability for Solar Development

For large-scale solar photovoltaic installations, the most favorable areas near Batatais would be the elevated plateaus and gentle slopes with southern exposures. The northwestern portion of the municipality, extending toward Franca, offers particularly promising terrain for solar development. These areas feature: Relatively flat plateaus with slopes generally between 0-5 degrees, minimizing the need for extensive grading or terracing during construction. The gently rolling topography actually provides natural advantages for panel placement with minimal shadowing effects between rows. The elevated nature of the region (800-900 meters above sea level) contributes to clearer atmospheric conditions with less haze than lower elevations. This higher altitude positioning helps maximize solar irradiance capture. Limited natural obstacles that would cast shadows across potential installation sites, with sparse tree coverage in many of the agricultural areas surrounding the city.

Topographical Considerations

The eastern outskirts of Batatais, extending toward Brodowski, present open landscapes with minimal topographical barriers. These areas have historically been utilized for agriculture, particularly coffee and sugar cane cultivation, indicating good solar exposure and workable terrain. Areas to potentially avoid include the more deeply incised stream valleys, particularly those running north-south through the region. These locations can experience more morning and evening shadowing effects from the adjacent slopes. Similarly, the more densely forested patches that remain in the region would require clearing, potentially increasing environmental impact and development costs. The region experiences minimal risk of flooding on the higher ground, with good natural drainage patterns across most of the elevated plateaus. This drainage characteristic helps reduce concerns about erosion or water accumulation around solar infrastructure. Overall, the moderate topography around Batatais presents favorable conditions for large-scale solar PV development, with ample suitable land featuring the necessary combination of gentle slopes, good drainage, and open exposure to the Brazilian sun.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
