Solar Energy Potential in Bismarque, Mato Grosso, Brazil

Bismarque, Mato Grosso, Brazil, located in the tropical region at latitude -16.8128 and longitude -57.0017, offers promising conditions for solar energy generation throughout the year. This location benefits from being in the tropics, where sunlight remains relatively consistent across seasons, though variations between wet and dry periods do occur. The solar energy production potential at this location shows a moderate seasonal pattern. During summer months, each kilowatt of installed solar capacity can generate approximately 6.31 kWh per day, making this the most productive season. Spring follows with 5.85 kWh per day, while autumn and winter show slightly lower but still substantial outputs of 5.41 kWh and 5.30 kWh per day respectively.

Seasonal Variations and Optimal Times

The data reveals that summer provides the peak solar generation period in Bismarque, Mato Grosso, with nearly 19% more energy production compared to the winter months. While the difference between seasons isn't extreme, it does suggest that major maintenance activities would be best scheduled during the less productive winter period to minimize production losses. Spring represents the second-best season for solar generation, with autumn and winter showing similar output levels. This relatively balanced year-round production profile makes Bismarque an excellent location for solar PV installations that need consistent output throughout the year.

Optimal Panel Installation Angle

For fixed solar panel installations in Bismarque, Mato Grosso, the ideal tilt angle to maximize year-round energy production is 16 degrees facing North. This specific angle has been calculated by analyzing the solar elevation patterns throughout the year, weighted by the daily PV potential at this location. This optimal angle accounts for the Earth's elliptical orbit and the specific latitude of Bismarque to ensure maximum solar capture across all seasons.

Environmental and Weather Considerations

The tropical location of Bismarque presents some challenges that could potentially impact solar energy production. The region experiences a distinct wet season, which typically brings increased cloud cover and rainfall that can temporarily reduce solar output. Additionally, high humidity levels may lead to faster degradation of equipment if not properly protected. Dust accumulation can also be significant in this region, particularly during dry seasons, potentially reducing panel efficiency by 5-15% if left unaddressed. The tropical climate may also accelerate the growth of algae or moss on panels in humid conditions.

Preventative Measures

Several preventative measures can help mitigate these environmental challenges:

• Installing panels with high-quality anti-reflective coatings and tempered glass that can withstand tropical conditions
• Implementing regular cleaning schedules, particularly after the dry season when dust accumulation is highest
• Using automated cleaning systems or scheduling manual cleaning during early morning or evening hours
• Ensuring proper drainage systems around the installation to prevent water accumulation during heavy rainfall
• Installing lightning protection systems, as tropical regions often experience frequent thunderstorms
• Using corrosion-resistant mounting hardware and components designed for high-humidity environments

With these considerations addressed through proper design and maintenance, a solar PV system in Bismarque can achieve excellent year-round performance, taking full advantage of the consistent tropical sunlight available at this location.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

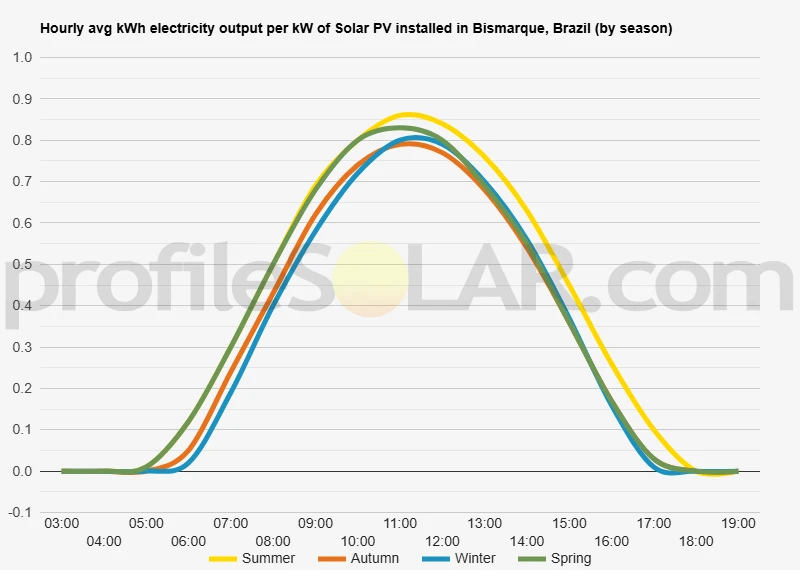

Solar output per kW of installed solar PV by season in Bismarque

Seasonal solar PV output for Latitude: -16.8128, Longitude: -57.0017 (Bismarque, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 16° North in Bismarque, Brazil

To maximize your solar PV system's energy output in Bismarque, Brazil (Lat/Long -16.8128, -57.0017) throughout the year, you should tilt your panels at an angle of 16° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Bismarque, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Bismarque, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 16° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
1° North in Summer	23° North in Autumn	32° North in Winter	11° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Bismarque, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Bismarque, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Bismarque, Brazil

The region surrounding Bismarque, Brazil, located at coordinates -16.8128, -57.0017, is characterized by its position within the Pantanal, one of the world's largest tropical wetland areas. The topography is predominantly flat, with elevations typically ranging between 80 and 150 meters above sea level. This relatively low-lying landscape is part of the greater Paraguay River basin, which experiences seasonal flooding that transforms the area dramatically throughout the year. The terrain consists of a mosaic of permanently flooded areas, seasonally inundated plains, and slightly elevated areas known locally as "cordilheiras" (forest-covered ridges) and "capões" (forest islands). These elevated areas, though modest in height, represent critical dry land during the wet season when much of the surrounding landscape becomes submerged.

Seasonal Variations in Landscape

The Pantanal region undergoes remarkable seasonal transformations. During the rainy season (approximately November to April), vast areas become flooded, creating an intricate network of shallow lakes, marshes, and waterways. During the dry season (May to October), the waters recede, revealing grasslands and exposing previously submerged terrain. This hydrological cycle significantly impacts the region's accessibility and land use potential throughout the year. The seasonal flooding serves as a natural constraint for permanent infrastructure development in many areas.

Suitable Areas for Solar PV Development

For large-scale solar photovoltaic installations, the most appropriate locations near Bismarque would be the permanently elevated areas that remain dry year-round. These include: The "cordilheiras" or natural ridges that typically rise 1-3 meters above the flood plains. These forested strips provide stable ground that doesn't flood during the wet season. The transition zones between the Pantanal wetlands and the surrounding higher plateaus, particularly toward the east, offer more consistent dry land conditions suitable for infrastructure development. Areas along the established transportation corridors, such as the Transpantaneira Highway, where some land has been modified and built up to withstand seasonal flooding. The slightly higher elevation regions to the northeast of Bismarque, approaching the Cuiabá region, feature more stable terrain less affected by the Pantanal's flooding cycles.

Topographical Considerations for Solar Development

When evaluating potential solar PV sites in this region, several topographical factors require consideration. The flat terrain generally provides excellent solar exposure without shadowing from natural features. However, the seasonal flooding presents significant challenges for infrastructure stability and access. The ideal solar development areas would combine good solar exposure with year-round accessibility, stable ground conditions, and proximity to existing electrical infrastructure. The elevated forest patches ("capões") and ridges ("cordilheiras") offer natural platforms that remain dry even during flood seasons. Additionally, the transition zones between the Pantanal wetlands proper and the surrounding highlands present opportunities for development, as these areas benefit from the flat, open exposure characteristics of the Pantanal while avoiding the most severe flooding issues. The region's natural drainage patterns must be carefully considered in any development planning, as altering these patterns could exacerbate flooding issues or create new hydrological problems that might ultimately affect solar infrastructure.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
