Bocaina, São Paulo, Brazil is a reasonably good location for year-round solar energy generation, though it experiences notable seasonal variations in solar output. The area produces moderate to good solar electricity throughout the year, with performance varying significantly between seasons.

Seasonal Solar Performance

Summer delivers the strongest solar performance at 6.26 kWh per day per kW of installed capacity, making it the optimal season for solar generation. Spring follows as the second-best performing season with 5.75 kWh per day per kW. Autumn sees a decline to 5.38 kWh per day per kW, while winter represents the lowest production period at 4.82 kWh per day per kW. The variation between the best and worst performing seasons is approximately 30%, which is quite substantial and reflects the location's position in the Southern Hemisphere where winter months receive considerably less solar energy.

Optimal Panel Configuration

For fixed panel installations at Bocaina, São Paulo, the ideal tilt angle is 21 degrees facing North to maximize total year-round solar production. This angle has been calculated to optimize energy capture across all seasons by accounting for the sun's changing position throughout the year and weighting the angles based on actual solar irradiance data.

Environmental and Weather Factors

Several local factors could potentially impact solar energy production at this location:

• Tropical humidity and moisture: High humidity levels can reduce solar panel efficiency and may lead to more frequent cleaning requirements due to moisture-related debris accumulation
• Wet season impacts: Extended periods of cloud cover and rain during wet seasons can significantly reduce solar output beyond the seasonal variations already noted
• Vegetation growth: The tropical climate promotes rapid plant growth, which could create shading issues if not properly managed around solar installations
• Dust and organic debris: The combination of dry periods followed by wet seasons can lead to dust accumulation and organic matter (leaves, pollen) settling on panels

Preventative Measures for Better Performance

To maximize solar energy production at Bocaina, São Paulo, several installation strategies should be considered: Regular maintenance schedules become crucial in this climate, with more frequent panel cleaning recommended during and after wet seasons to remove accumulated debris and organic matter. Installing panels with adequate spacing and ventilation helps combat efficiency losses from high humidity and heat buildup. Careful site selection and ongoing vegetation management around solar installations prevents shading issues as tropical plants grow rapidly. Consider installing automated cleaning systems or ensuring easy access for manual cleaning, as the humid tropical environment will require more frequent maintenance than drier climates. Proper drainage around ground-mounted systems helps prevent water pooling during heavy rains, while robust mounting systems designed for tropical weather conditions ensure long-term stability and performance.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

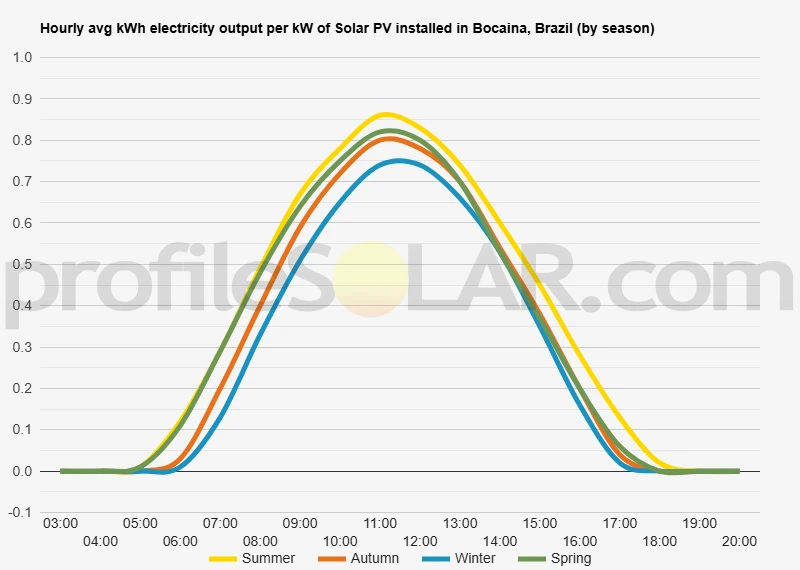

Solar output per kW of installed solar PV by season in Bocaina

Seasonal solar PV output for Latitude: -22.644, Longitude: -45.6958 (Bocaina, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Bocaina, Brazil

To maximize your solar PV system's energy output in Bocaina, Brazil (Lat/Long -22.644, -45.6958) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Bocaina, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Bocaina, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Bocaina, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Bocaina, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Bocaina, Brazil

Topographical Features of the Bocaina Region

The area around Bocaina, Brazil is characterized by mountainous terrain that forms part of the Serra da Bocaina mountain range, located in the southeastern region of the country near the border between São Paulo and Rio de Janeiro states. This region sits within the broader Serra do Mar mountain system, which runs parallel to Brazil's Atlantic coast. The landscape features steep slopes, deep valleys, and elevated ridges that create a dramatically varied topography with significant elevation changes over relatively short distances. The terrain around Bocaina is predominantly rugged, with dense Atlantic Forest (Mata Atlântica) covering much of the mountainous areas. The region experiences a complex interplay of elevation and coastal proximity, resulting in varied microclimates throughout different elevations and aspects of the mountains. The steep gradients and forested nature of much of this area present challenges for large-scale development projects, as the natural vegetation serves important ecological functions and much of the region falls under environmental protection.

Optimal Areas for Large-Scale Solar Development

Within this mountainous region, the most suitable areas for large-scale solar photovoltaic installations would be found on the gentler slopes and plateau areas at moderate elevations, particularly those with southern or southeastern exposures that can capture optimal solar radiation throughout the day. Areas that have been previously cleared for agricultural use, such as pasturelands or former coffee plantations, would present fewer environmental concerns and easier development access compared to pristine forested areas. The valleys and lower-lying areas between the mountain ridges could offer more stable terrain for solar installations, provided they are not prone to flooding or excessive moisture accumulation. These locations would also benefit from easier access for construction equipment and maintenance vehicles, which is crucial for the economic viability of large-scale solar projects in this challenging terrain. Areas closer to existing infrastructure, including roads and electrical transmission lines, would be particularly advantageous for solar development. The region's proximity to major population centers in São Paulo and Rio de Janeiro states means that well-positioned solar installations could potentially feed into existing electrical grid infrastructure, though the mountainous terrain may require careful consideration of transmission line routing and grid connection points.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
