Bom Retiro, Santa Catarina, Brazil shows good potential for year-round solar energy generation, though with notable seasonal variations that are typical for its Southern Sub-tropical location at latitude -27.759, longitude -49.6213.

Seasonal Solar Performance

The location delivers its strongest solar performance during summer months, generating 6.22 kWh per day for each kW of installed solar capacity. This represents the peak production period when the sun is highest in the sky and daylight hours are longest. Spring provides the second-best performance at 4.68 kWh/day per kW, making it another excellent season for solar generation. Autumn drops to 4.40 kWh/day per kW, while winter shows the lowest output at 3.22 kWh/day per kW installed. Even during the weakest winter period, the location still produces about half the energy output compared to summer, indicating that solar remains viable year-round rather than being completely seasonal.

Optimal Panel Configuration

For maximum year-round energy production at this location, solar panels should be installed at a fixed tilt angle of 25 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's position throughout the year and weighting for actual solar energy potential.

Environmental and Weather Factors

Several local factors could potentially impact solar energy production in this Southern Sub-tropical region:

• High humidity and frequent cloud cover during certain periods can reduce solar irradiance
• Heavy rainfall, particularly during summer months, may temporarily decrease output
• Atmospheric haze and moisture can scatter sunlight before it reaches panels
• Potential for severe weather events including strong winds and hail

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies can help:

• Install panels with adequate spacing to allow air circulation and prevent overheating in humid conditions
• Use high-quality mounting systems rated for local wind loads and weather conditions
• Implement regular cleaning schedules to remove dust, pollen, and debris that accumulate more quickly in humid climates
• Choose panels with good low-light performance to maintain output during cloudy periods
• Consider micro-inverters or power optimizers to minimize impact when some panels are shaded by clouds

The location's consistent year-round production, even with seasonal variations, makes it quite suitable for solar energy generation when proper installation practices are followed.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

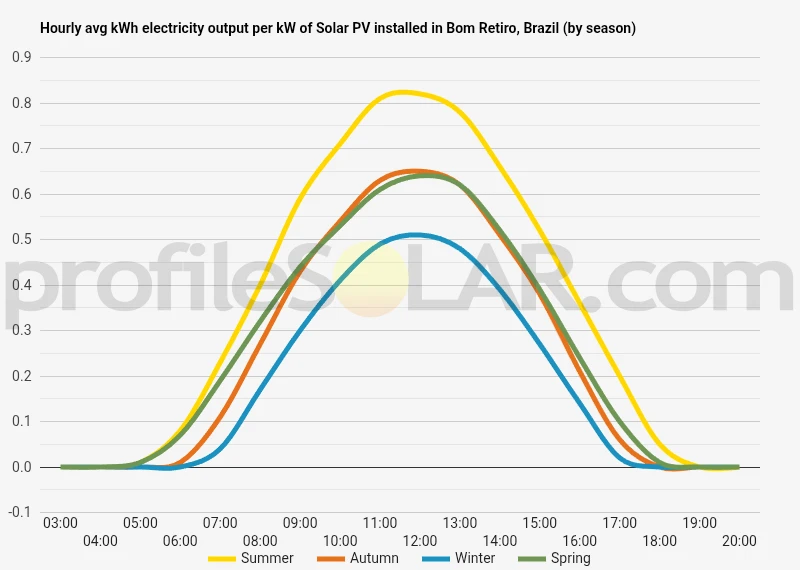

Solar output per kW of installed solar PV by season in Bom Retiro

Seasonal solar PV output for Latitude: -27.759, Longitude: -49.6213 (Bom Retiro, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Bom Retiro, Brazil

To maximize your solar PV system's energy output in Bom Retiro, Brazil (Lat/Long -27.759, -49.6213) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Bom Retiro, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Bom Retiro, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° North in Summer	34° North in Autumn	43° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Bom Retiro, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Bom Retiro, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Bom Retiro, Brazil

Topographical Features of Bom Retiro

Bom Retiro sits in the mountainous terrain of Santa Catarina state in southern Brazil, positioned within the Serra Geral mountain range. The municipality occupies an elevated plateau region characterized by rolling hills, steep valleys, and dramatic elevation changes that are typical of Brazil's southern highlands. The landscape features a mix of forested ridgelines and open grassland areas, with the terrain generally sloping from higher elevations in the west toward lower areas in the east. The region experiences significant topographical variation, with elevations ranging from approximately 900 to 1,400 meters above sea level. Deep river valleys cut through the landscape, creating a complex pattern of ridges and hollows. The Canoas River system drains much of the area, flowing through carved valleys that separate the higher plateau areas. These waterways have created steep-sided valleys with narrow flood plains, while the interfluves between valleys form broad, gently undulating upland surfaces.

Climate and Environmental Conditions

The elevated position of Bom Retiro results in a subtropical highland climate with cooler temperatures than surrounding lowland areas. The region experiences distinct wet and dry seasons, with the topography significantly influencing local weather patterns. Cloud formation is common along the mountain ridges, particularly during certain seasons, which can affect solar radiation patterns across different elevations and aspects of the terrain. The area receives substantial rainfall, especially during the warmer months, with the mountainous topography creating orographic precipitation effects. Fog and low cloud cover frequently occur in the valleys and along ridgelines, particularly during early morning periods. Wind patterns are influenced by the complex terrain, with valley breezes and mountain winds creating localized circulation patterns.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Bom Retiro region would be the elevated plateau areas and gently sloping ridgelines that offer several key advantages. These higher elevation sites typically experience less fog and cloud cover compared to the valley bottoms, providing clearer atmospheric conditions for solar energy generation. The plateau surfaces also offer relatively flat to gently sloping terrain that minimizes the need for extensive grading and reduces installation costs. South-facing slopes with gradual inclines would be particularly favorable, as they receive optimal solar exposure throughout the day while maintaining manageable terrain for construction and maintenance access. The ridgeline areas often provide good road access potential and are typically removed from prime agricultural lands, reducing land use conflicts. Areas to avoid for solar development include the steep valley sides, which present challenging terrain for installation and maintenance, and the valley bottoms, which tend to experience more frequent fog and reduced solar exposure due to topographical shading. The narrow flood plains along the river systems would also be unsuitable due to flooding risks and environmental sensitivities. The eastern portions of the municipality, where elevations are generally lower and the terrain transitions toward gentler topography, may offer good compromise locations. These areas combine reasonable solar exposure with more accessible terrain while avoiding the steepest mountain slopes and deepest valleys that characterize the western sections of the region.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
