Borda da Mata, Brazil represents a moderately favorable location for year-round solar PV energy generation. Located in the southern part of Brazil's tropical and subtropical region, this area experiences seasonal variations in solar output that are typical for locations at this latitude.

Seasonal Solar Performance

The solar energy production at Borda da Mata shows clear seasonal patterns throughout the year. Summer delivers the highest output at 6.62 kWh per day per kW of installed capacity, making it the peak season for solar generation. Spring follows as the second-best performing season with 6.08 kWh per day per kW. Autumn sees a decline in solar production to 5.49 kWh per day per kW, while winter represents the lowest production period at 4.83 kWh per day per kW of installed capacity. Despite this seasonal variation, the location maintains reasonably consistent solar output year-round, with winter production still reaching about 73% of summer peak levels. For optimal year-round performance, solar panels should be installed at a fixed tilt angle of 21 degrees facing north. This angle maximizes total annual energy production by accounting for the sun's varying position throughout the seasons and the location's specific latitude.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at Borda da Mata and require consideration during installation planning. The region's tropical climate brings significant rainfall, particularly during the wet season, which can reduce solar output through cloud cover and atmospheric moisture. Heavy rains can also leave water spots and debris on solar panels, reducing their efficiency if not properly managed. High humidity levels common in this climate can accelerate corrosion of metal components and potentially affect electrical connections over time. The combination of heat and moisture creates challenging conditions for solar equipment longevity. Dust accumulation during drier periods can coat solar panels and significantly reduce their light absorption capacity. Agricultural activities in the surrounding area may contribute additional particulate matter that settles on panel surfaces.

Preventative Installation Measures

Several strategies can help maximize solar energy production despite these environmental challenges:

• Install panels with adequate spacing and ventilation to prevent moisture buildup and allow for proper air circulation
• Use marine-grade or specially treated mounting hardware and electrical components designed to resist corrosion in humid environments
• Implement a regular cleaning schedule, particularly important during dusty dry periods and after heavy rains
• Consider installing panels at a steeper angle than the optimal 21 degrees if dust accumulation proves problematic, as this helps panels self-clean during rainfall
• Ensure proper drainage around the installation site to prevent water pooling that could increase local humidity levels

With proper installation techniques and regular maintenance, solar PV systems at Borda da Mata can perform effectively year-round, taking advantage of the region's generally favorable solar conditions while mitigating the challenges posed by the tropical climate.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

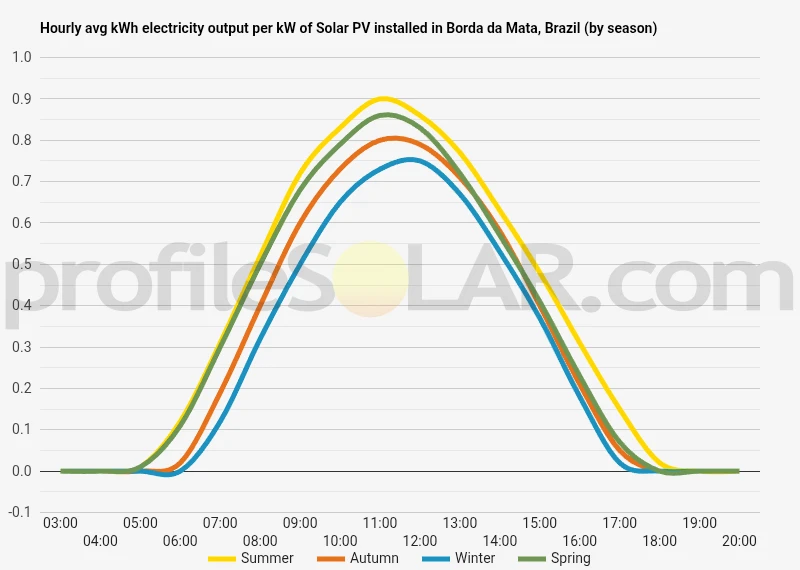

Solar output per kW of installed solar PV by season in Borda Da Mata

Seasonal solar PV output for Latitude: -22.2534, Longitude: -46.1706 (Borda Da Mata, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Borda Da Mata, Brazil

To maximize your solar PV system's energy output in Borda Da Mata, Brazil (Lat/Long -22.2534, -46.1706) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Borda Da Mata, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Borda Da Mata, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Borda Da Mata, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Borda Da Mata, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Borda Da Mata, Brazil

Topographical Features of Borda da Mata

Borda da Mata sits in the mountainous region of southern Minas Gerais, Brazil, within the Serra da Mantiqueira mountain range. The landscape around this municipality is characterized by rolling hills, steep valleys, and elevated plateaus that create a distinctly undulating terrain. The elevation varies considerably across the region, with some areas reaching significant heights while others settle into lower valley floors. The topography is typical of the Brazilian Highlands, featuring a complex pattern of ridges and valleys carved by centuries of erosion. The terrain includes both gentle slopes and more dramatic inclines, with numerous small streams and tributaries flowing through the valleys toward larger river systems. The landscape transitions from higher elevations in the mountainous areas to more moderate terrain as it extends toward the surrounding plains.

Soil and Geological Characteristics

The underlying geology consists primarily of crystalline rocks from the Brazilian Shield, including granite and gneiss formations that have been weathered over geological time. This has resulted in varied soil types across the region, with some areas featuring deep, well-drained soils while others have thinner soil layers over rocky substrates. The weathering patterns have created a landscape where some hillsides are relatively stable while others may be prone to erosion, particularly on steeper slopes. The soil composition varies from clay-rich areas in the valleys to more sandy compositions on elevated terrain, influencing both drainage patterns and vegetation growth.

Climate and Vegetation Influence on Terrain

The regional climate contributes to the landscape characteristics through seasonal rainfall patterns that shape erosion and vegetation growth. The area experiences distinct wet and dry seasons, which influence how the terrain responds to weather patterns throughout the year. Natural vegetation includes remnants of Atlantic Forest (Mata Atlântica) in some areas, along with pasturelands and agricultural zones that have modified the original landscape. The vegetation patterns often follow the topographical features, with different plant communities establishing themselves based on elevation, slope orientation, and moisture availability.

Optimal Areas for Large-Scale Solar Development

For large-scale solar photovoltaic installations, the most suitable areas around Borda da Mata would be the elevated plateaus and gently sloping hillsides with southern and southeastern exposures. These locations offer several advantages including relatively stable terrain that requires minimal grading for installation, good drainage to prevent water accumulation around equipment, and reduced shading from surrounding topographical features. The higher elevation areas tend to have less dense vegetation and may already be cleared for agricultural use, potentially reducing environmental impact and land preparation costs. These plateaus also typically experience better air circulation, which helps maintain optimal operating temperatures for solar panels. Areas to avoid would include the steeper valley slopes, which present challenges for equipment installation and maintenance access, and low-lying valley floors where morning fog and moisture accumulation could affect performance. The most promising locations appear to be the transitional zones between the highest peaks and the valley floors, where the terrain offers sufficient elevation for good exposure while maintaining reasonable accessibility for construction and ongoing maintenance activities. The relatively open agricultural landscapes on stable slopes would be particularly well-suited for solar development, as they combine favorable topographical conditions with existing land use patterns that could accommodate renewable energy infrastructure.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
