Cachoeira Alta, Goiás, Brazil presents a very favorable location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates -18.5132, -50.9549, this region benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than dramatic changes in daylight hours.

Solar Energy Production Potential

The solar energy output data for Cachoeira Alta demonstrates strong year-round performance. Summer produces the highest energy generation at 6.82 kWh per day per kW of installed solar capacity, making it the peak season for solar production. Spring follows as the second-best performing season with 6.13 kWh/day per kW, while autumn generates 5.82 kWh/day per kW. Winter shows the lowest production at 5.55 kWh/day per kW, but even this represents solid output that makes year-round solar installation highly viable. The relatively small variation between seasons - only about 1.27 kWh difference between the best and worst performing seasons - indicates excellent consistency for solar energy planning. For optimal energy capture, solar panels should be installed at a fixed tilt angle of 18 degrees facing north. This angle has been calculated to maximize total year-round production by accounting for the sun's path throughout the year and weighting the optimal daily angles by the actual solar potential at this location.

Environmental and Weather Factors

Several local factors could potentially impact solar energy production in Cachoeira Alta, Goiás, though the location remains highly suitable overall. The tropical climate brings distinct wet and dry seasons, with the wet season potentially creating challenges for solar installations. Heavy rainfall and increased cloud cover during wet periods can reduce solar irradiance and energy output. Additionally, frequent storms may bring strong winds and hail that could damage solar panels if not properly secured. High humidity levels throughout much of the year can lead to increased soiling of solar panels from dust, pollen, and organic matter that adheres more readily to surfaces in humid conditions. The combination of dust from dry periods and humidity can create a film that reduces panel efficiency over time.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production despite these environmental challenges:

• Install panels with robust mounting systems designed to withstand tropical storm conditions and high winds
• Use tempered glass panels with anti-reflective coatings that resist soiling and are easier to clean
• Implement regular cleaning schedules, particularly during and after wet seasons when soiling tends to be most problematic
• Consider automated cleaning systems for larger installations to maintain consistent performance
• Ensure proper drainage around installations to prevent water pooling and potential electrical issues

The tropical location also offers some natural advantages, as frequent rainfall during wet seasons can provide natural cleaning of panels, helping to maintain efficiency without manual intervention during these periods. Overall, Cachoeira Alta represents an excellent location for solar PV installations, with strong and consistent energy production potential throughout the year and manageable environmental challenges that can be effectively addressed through proper installation techniques and maintenance practices.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

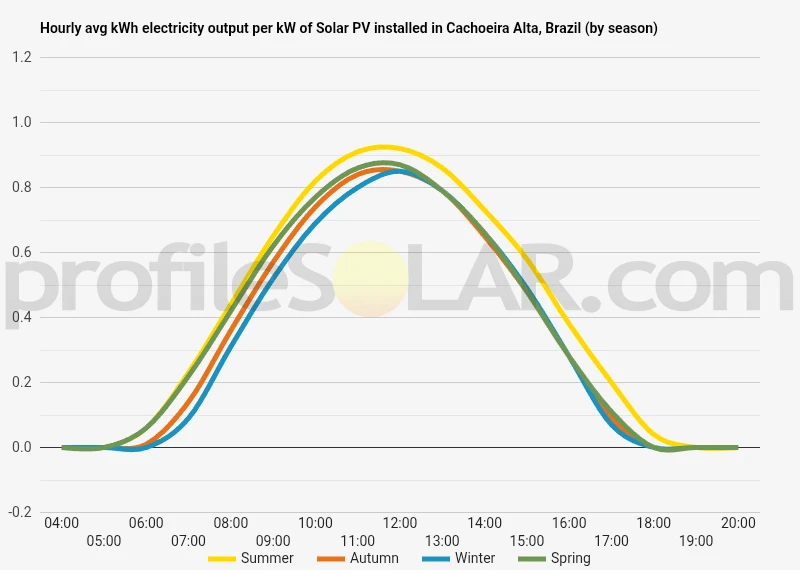

Solar output per kW of installed solar PV by season in Cachoeira Alta

Seasonal solar PV output for Latitude: -18.5132, Longitude: -50.9549 (Cachoeira Alta, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 18° North in Cachoeira Alta, Brazil

To maximize your solar PV system's energy output in Cachoeira Alta, Brazil (Lat/Long -18.5132, -50.9549) throughout the year, you should tilt your panels at an angle of 18° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cachoeira Alta, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cachoeira Alta, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 18° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° North in Summer	25° North in Autumn	34° North in Winter	13° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cachoeira Alta, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cachoeira Alta, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cachoeira Alta, Brazil

Topographical Features of Cachoeira Alta

Cachoeira Alta sits within the Brazilian Cerrado, positioned in the southwestern portion of Goiás state near the border with Minas Gerais. The terrain around this municipality is characterized by gently rolling hills and broad plateaus typical of the Brazilian Highlands. Elevations in the region generally range from 400 to 800 meters above sea level, creating a landscape of modest undulations rather than dramatic elevation changes.

The area forms part of the Paranaíba River basin, with numerous small streams and tributaries carving shallow valleys through the terrain. These waterways create a network of gentle depressions between the elevated areas, though the overall topography remains relatively subdued. The region's geological foundation consists primarily of sedimentary rocks and ancient crystalline formations that have been weathered over millions of years, resulting in the characteristic flat-topped hills and broad valleys of the Cerrado ecosystem.

Natural vegetation in the area transitions between cerrado grasslands and gallery forests along the waterways. The landscape is increasingly dominated by agricultural activities, particularly large-scale soybean and corn cultivation, which has transformed much of the original savanna into expansive farmland. This agricultural conversion has created vast open spaces with minimal tree cover across much of the surrounding territory.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Cachoeira Alta would be found on the elevated plateaus and gentle slopes that dominate the regional topography. These areas offer several key advantages for solar development, including relatively flat terrain that minimizes grading and construction costs while maximizing the efficiency of panel placement and maintenance access.

The extensive agricultural plains surrounding the municipality present particularly attractive opportunities for solar development. These areas have already been cleared of native vegetation and leveled for farming, reducing environmental impact concerns and site preparation requirements. The existing agricultural infrastructure, including access roads and electrical connections to support farming operations, could potentially be leveraged for solar installations.

Areas with south-facing slopes would be especially well-suited for solar arrays, as they can be oriented to optimize solar exposure throughout the day. The gentle gradients typical of the region allow for effective drainage while maintaining stable foundations for solar mounting systems. The relatively stable geological conditions, with minimal seismic activity and well-drained soils, provide an excellent foundation for long-term solar installations.

Proximity to existing electrical transmission infrastructure represents another crucial factor in site selection. The region's agricultural economy has necessitated a reasonably well-developed electrical grid, and areas near existing transmission lines would offer significant cost advantages for connecting large solar facilities to the broader electrical network. The flat to gently rolling terrain also facilitates the construction of new transmission infrastructure where needed, without the complications that mountainous topography would present.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
