Cachoeira da Prata, Brazil represents a highly favorable location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates -19.5178, -44.4617, this region benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than dramatic temperature changes.

Solar Energy Production Performance

The solar energy output data demonstrates excellent year-round potential for this location. Summer delivers the highest production at 6.46kWh per day per kW of installed solar capacity, making it the peak season for energy generation. Spring follows closely with 6.20kWh/day per kW, while autumn provides 5.97kWh/day per kW. Even during the lowest-producing season of winter, the location still generates a respectable 5.38kWh/day per kW. This seasonal pattern indicates that Cachoeira da Prata experiences relatively modest fluctuations in solar production throughout the year, with only about a 20% difference between peak and minimum output periods. Such consistency makes this location particularly attractive for solar installations, as energy production remains relatively predictable across all seasons.

Optimal Installation Configuration

For maximum year-round solar energy production at Cachoeira da Prata, fixed solar panels should be tilted at an angle of 19 degrees North. This optimal angle is calculated by analyzing daily solar elevation angles at this specific latitude, determining daily optimal panel positioning, and weighting these angles according to photovoltaic potential using solar irradiance data while accounting for Earth's elliptical orbit patterns.

Environmental and Weather Considerations

Several local factors could potentially impact solar energy production at this Brazilian location, though most can be effectively managed with proper planning and installation techniques. The tropical climate brings distinct wet and dry seasons, with the rainy period potentially creating challenges for solar panel performance. Heavy rainfall and increased cloud cover during wet months can reduce solar irradiance, though the data suggests this impact is relatively moderate given the consistent year-round production figures. Humidity levels in tropical regions tend to be elevated, which can contribute to faster degradation of solar equipment if not properly managed. High humidity combined with temperature fluctuations can also lead to condensation issues within electrical components.

Preventative Measures for Enhanced Performance

Several installation strategies can help maximize solar energy production despite these environmental challenges:

• Install panels with adequate ventilation spacing underneath to promote air circulation and prevent moisture buildup
• Use high-quality, humidity-resistant electrical components and junction boxes specifically rated for tropical climates
• Implement proper drainage systems around ground-mounted installations to prevent water accumulation
• Select solar panels with anti-reflective coatings and self-cleaning properties to minimize dust and debris accumulation
• Establish regular maintenance schedules for cleaning panels, particularly during dusty dry seasons

The tropical location may also experience occasional severe weather events, making robust mounting systems essential. Proper grounding and surge protection become particularly important in regions with frequent thunderstorms during rainy seasons. Overall, Cachoeira da Prata offers excellent conditions for solar energy generation, with the potential environmental challenges being well within manageable parameters through appropriate installation practices and equipment selection.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

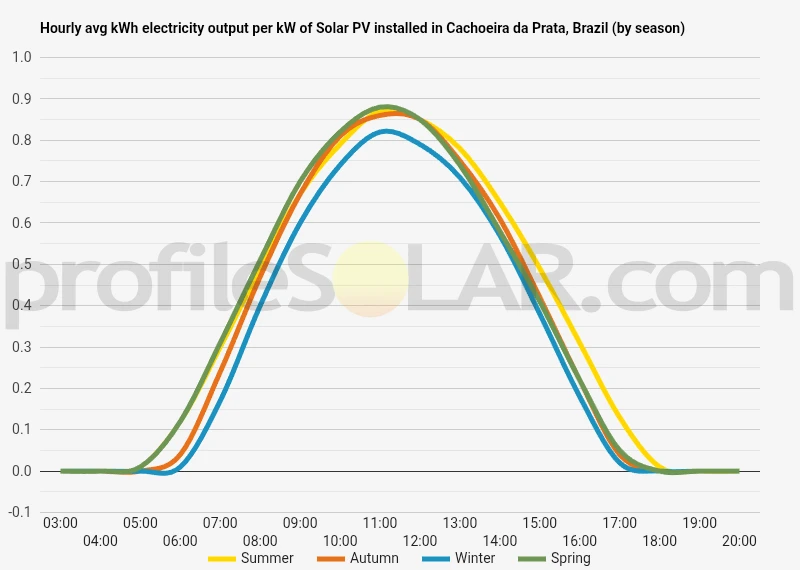

Solar output per kW of installed solar PV by season in Cachoeira Da Prata

Seasonal solar PV output for Latitude: -19.5178, Longitude: -44.4617 (Cachoeira Da Prata, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Cachoeira Da Prata, Brazil

To maximize your solar PV system's energy output in Cachoeira Da Prata, Brazil (Lat/Long -19.5178, -44.4617) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cachoeira Da Prata, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cachoeira Da Prata, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	25° North in Autumn	35° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cachoeira Da Prata, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cachoeira Da Prata, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cachoeira Da Prata, Brazil

Topographical Features of Cachoeira da Prata

Cachoeira da Prata sits within the central highlands of Minas Gerais state, positioned in Brazil's expansive Cerrado region. The landscape around this area is characterized by gently rolling hills and broad plateaus that stretch across the horizon, creating a terrain that rises and falls in gradual undulations rather than steep mountainous formations. The elevation varies moderately throughout the region, with most areas sitting between 700 and 900 meters above sea level. The topography is dominated by the ancient geological formations of the Brazilian Shield, which has created a stable foundation of weathered rock and lateritic soils. These underlying geological structures have resulted in relatively flat-topped hills called chapadas, interspersed with shallow valleys where seasonal streams and small rivers flow. The terrain exhibits the classic characteristics of tropical savanna highlands, where centuries of erosion have smoothed out dramatic elevation changes.

Drainage and Water Features

The region's drainage patterns follow the gentle slopes of the landscape, with water naturally flowing toward the São Francisco River basin system. Small tributaries and seasonal waterways carve shallow channels through the terrain, but these water features rarely create significant topographical barriers or steep-sided valleys. During the wet season, these drainage channels carry runoff from the surrounding plateaus, while in the dry season many become intermittent or completely dry. The presence of these water features indicates areas of lower elevation within the overall landscape, but the gradual nature of the slopes means that even valley floors remain relatively accessible and developable. The watershed boundaries between different drainage basins often occur along broad, gently elevated ridges rather than sharp mountain crests.

Soil and Surface Conditions

The surface conditions across much of the area consist of deep, well-drained soils that have developed over millions of years of tropical weathering. These lateritic soils, while nutrient-poor for intensive agriculture, provide stable foundations for development. The terrain is generally free from rocky outcrops or boulder fields, though isolated rock formations do appear sporadically across the landscape. Much of the natural vegetation has been cleared for agricultural use, particularly cattle ranching and crop cultivation, leaving expanses of relatively flat or gently sloping cleared land. This historical land use has created large open areas with minimal vegetation cover and good accessibility via existing rural road networks.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar installations would be found on the elevated plateaus and chapada formations that dominate the regional landscape. These areas offer several key advantages, including stable, level ground that requires minimal grading or earthwork preparation. The broad, flat-topped hills provide extensive contiguous areas where solar arrays can be installed without significant topographical constraints. Areas along the watershed divides would be particularly well-suited for solar development, as these elevated positions typically offer the most consistent terrain and the best natural drainage. The gentle slopes found on these plateau areas allow for optimal panel orientation while maintaining good surface water runoff patterns. Previously cleared agricultural lands, especially those used for extensive cattle ranching, present excellent opportunities for solar development. These areas already have established access roads and cleared vegetation, reducing initial site preparation costs. The existing land use patterns have created large, unobstructed spaces that can accommodate utility-scale solar installations without requiring significant environmental clearing. The areas immediately surrounding existing rural infrastructure would also be favorable for development, as they offer proximity to roads and potentially to electrical transmission corridors. The stable geological conditions throughout the region mean that most locations can support the foundation requirements for solar mounting systems without requiring specialized engineering solutions.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
