Solar Energy Potential in Cachoeira do Sul, Brazil

Cachoeira do Sul, Brazil, located in the Southern Sub Tropics at coordinates -30.0403, -52.8972, offers varying solar energy generation potential throughout the year. This location experiences significant seasonal differences in solar PV output, which affects its overall suitability for year-round solar energy production. The solar energy generation at this location follows a clear seasonal pattern. Summer months produce the highest output at 7.34kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.86kWh/day, while autumn generates 4.64kWh/day. Winter shows the lowest production at just 3.21kWh/day per kilowatt installed.

Seasonal Variations and Ideal Production Periods

The substantial difference between summer and winter production (more than double) indicates that this location has pronounced seasonality for solar generation. The most favorable period for solar energy production spans from late spring through summer (approximately November through February in the Southern Hemisphere), when days are longer and solar radiation is more intense. For maximum year-round energy production at this location, solar panels should be installed at a fixed tilt angle of 26 degrees facing North. This specific angle optimizes the annual solar energy capture based on Cachoeira do Sul's latitude and local solar conditions.

Environmental and Weather Considerations

Several environmental factors could affect solar production at this location:

• Seasonal rainfall: The region experiences significant precipitation, particularly during certain seasons, which can temporarily reduce solar output through cloud cover.
• Dust and agricultural activities: Being in a rural area of Brazil, dust from nearby agricultural operations could accumulate on panels, reducing efficiency if not regularly cleaned.
• Temperature variations: High summer temperatures may slightly reduce panel efficiency, as photovoltaic cells typically lose efficiency above certain temperature thresholds.

To mitigate these challenges, several preventative measures can be implemented during installation. Regular cleaning schedules should be established to remove dust accumulation. Installing panels with sufficient elevation from the ground can reduce dust buildup. Additionally, ensuring proper airflow beneath the panels can help dissipate heat during hot summer days, maintaining better efficiency. The significant seasonal variation suggests that this location would benefit from either oversizing the solar array to meet winter demands or implementing a hybrid energy system that supplements solar with other energy sources during the less productive winter months.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

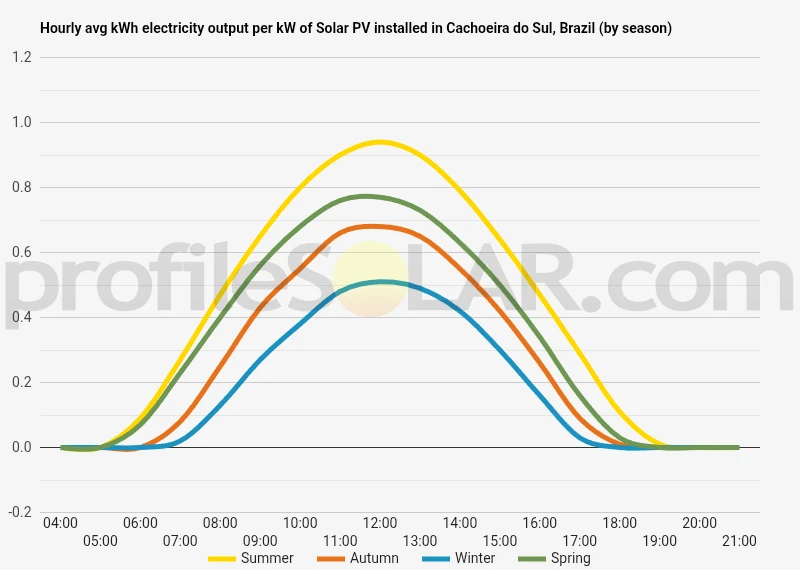

Solar output per kW of installed solar PV by season in Cachoeira Do Sul

Seasonal solar PV output for Latitude: -30.0403, Longitude: -52.8972 (Cachoeira Do Sul, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° North in Cachoeira Do Sul, Brazil

To maximize your solar PV system's energy output in Cachoeira Do Sul, Brazil (Lat/Long -30.0403, -52.8972) throughout the year, you should tilt your panels at an angle of 26° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cachoeira Do Sul, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cachoeira Do Sul, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° North in Summer	35° North in Autumn	45° North in Winter	23° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cachoeira Do Sul, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cachoeira Do Sul, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cachoeira Do Sul, Brazil

The landscape surrounding Cachoeira do Sul in the Brazilian state of Rio Grande do Sul features a diverse topography characterized by gently rolling plains interspersed with low hills and river valleys. Located in the central region of the state, this area sits within the Pampas biome, a vast grassland ecosystem that extends across southern Brazil, Uruguay, and Argentina.

Topographical Features

The terrain around Cachoeira do Sul is moderately varied, with elevations generally ranging between 50 to 150 meters above sea level. The city itself is situated along the banks of the Jacuí River, which has played a significant role in shaping the local landscape. This important waterway has created a fertile valley with alluvial plains that gradually rise into more undulating terrain as one moves away from the riverbanks. To the north and east of Cachoeira do Sul, the landscape becomes slightly more hilly, with occasional elevated areas that provide panoramic views of the surrounding countryside. These hills are typically gentle in slope rather than steep or mountainous. The southern and western regions tend to feature more open plains with subtle undulations, characteristic of the Pampas grasslands. The area also contains numerous smaller streams and tributaries that feed into the Jacuí River system, creating a network of minor valleys and drainage patterns across the landscape. These waterways have carved shallow depressions in the otherwise relatively flat terrain.

Optimal Areas for Solar PV Development

When considering locations for large-scale solar photovoltaic installations near Cachoeira do Sul, several areas present favorable conditions based on topographical factors alone. The gently sloping plains to the south and southwest of the city offer particularly promising terrain for solar development. These areas combine several advantageous characteristics: relatively flat land that minimizes grading costs, good drainage to prevent flooding issues, and minimal natural obstacles. The gradual south-facing slopes in these regions can potentially optimize solar exposure throughout the year in the Southern Hemisphere. The elevated plateaus found approximately 15-20 kilometers to the northeast of the city center also merit consideration. These higher elevation areas experience less fog than the river valleys and have good exposure to prevailing winds, which can help keep solar panels cooler and operating more efficiently. The slightly higher altitude may also reduce the impact of morning mist that sometimes forms in the lower river valleys. Areas to potentially avoid include the immediate floodplains of the Jacuí River, which may face periodic inundation risks, and the more steeply sloped hillsides to the north, where installation costs would increase due to the need for more extensive earthwork. The northwestern sector beyond the city limits features expanses of agricultural land with favorable topography for solar development—open, gently rolling terrain with good drainage and minimal shading concerns. These areas also tend to have established access roads due to agricultural activities, potentially reducing infrastructure development costs. In terms of specific distance from the urban center, areas approximately 8-12 kilometers from Cachoeira do Sul offer a good balance between suitable topography and proximity to existing electrical infrastructure, potentially reducing interconnection costs for large-scale solar projects.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
