Cachoeiras de Macacu, Brazil, presents a promising location for solar energy generation, with its tropical climate offering consistent sunlight throughout the year. This location experiences more pronounced wet and dry seasons rather than traditional four-season cycles.

Solar Energy Potential

The solar energy output at this location varies across the meteorological seasons. Summer yields the highest production at 6.37 kWh per day for each kilowatt of installed solar capacity. Spring follows with 4.90 kWh/day, then autumn with 5.18 kWh/day, and winter with the lowest output at 4.23 kWh/day. These figures indicate that Cachoeiras de Macacu has good potential for year-round solar energy generation, with summer being the peak season. The relatively small difference between the highest and lowest seasonal outputs suggests a stable energy production throughout the year.

Optimal Panel Placement

For fixed solar panel installations in this location, the ideal tilt angle to maximize year-round energy production is 21 degrees facing North. This angle takes into account the location's latitude, the Earth's elliptical orbit, and seasonal variations in solar elevation.

Environmental Considerations

While Cachoeiras de Macacu generally offers favorable conditions for solar energy production, there are some environmental factors to consider: 1. Rainfall: The region experiences a wet season, which could potentially reduce solar output due to cloud cover. 2. Humidity: High humidity levels, common in tropical areas, may slightly decrease panel efficiency. To mitigate these factors, consider the following preventative measures:

• Use high-quality, weather-resistant solar panels designed for tropical climates
• Implement regular cleaning schedules to remove any dust or debris accumulation
• Install a robust drainage system to prevent water accumulation on or around the panels

By addressing these environmental factors, solar installations in Cachoeiras de Macacu can maximize their energy production potential and take full advantage of the location's favorable solar conditions.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

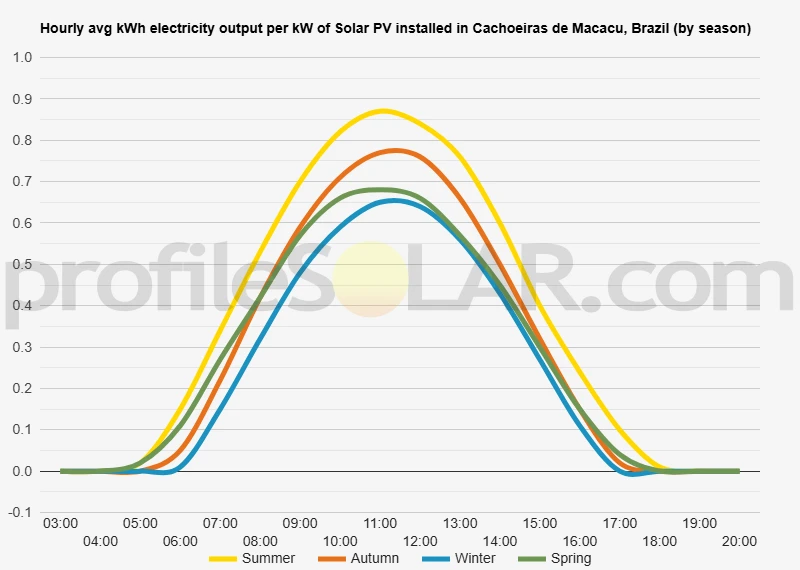

Solar output per kW of installed solar PV by season in Cachoeiras De Macacu

Seasonal solar PV output for Latitude: -22.4861, Longitude: -42.7133 (Cachoeiras De Macacu, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Cachoeiras De Macacu, Brazil

To maximize your solar PV system's energy output in Cachoeiras De Macacu, Brazil (Lat/Long -22.4861, -42.7133) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cachoeiras De Macacu, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cachoeiras De Macacu, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cachoeiras De Macacu, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cachoeiras De Macacu, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cachoeiras De Macacu, Brazil

The topography around Cachoeiras de Macacu, Brazil, is characterized by a diverse and picturesque landscape. This region, located in the state of Rio de Janeiro, features a combination of rolling hills, lush valleys, and rugged mountains. The area is part of the Serra do Mar mountain range, which runs along the southeastern coast of Brazil. The terrain in and around Cachoeiras de Macacu is predominantly hilly, with elevations ranging from about 50 meters above sea level in the lower areas to over 1,000 meters in the nearby mountains. The city itself is nestled in a valley, surrounded by verdant slopes and forested areas. Numerous streams and rivers crisscross the landscape, contributing to the region's name, which translates to "Waterfall of the Macaques." To the north and west of Cachoeiras de Macacu, the terrain becomes more mountainous, with steep slopes and dense Atlantic Forest vegetation. These higher elevations are part of the Serra dos Órgãos National Park, known for its dramatic peaks and biodiversity. To the east and south, the landscape gradually becomes less rugged, transitioning into gentler hills and eventually reaching the coastal plains closer to the Atlantic Ocean.

Suitability for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations for solar farms in this region would be areas with relatively flat or gently sloping terrain, good sun exposure, and minimal environmental impact. The most promising areas for large-scale solar PV near Cachoeiras de Macacu would likely be found in the lower-lying regions to the east and southeast of the city. These areas tend to have more open spaces and less dramatic topography, making them easier to develop for solar installations. The gentler slopes in these directions provide better opportunities for capturing sunlight throughout the day without significant shading issues. However, it's important to note that the region's abundant rainfall and frequent cloud cover may pose challenges for solar energy production. Additionally, the presence of protected areas and the importance of preserving the Atlantic Forest ecosystem would need to be carefully considered when selecting sites for solar farms. Any large-scale solar PV project in this area would require detailed environmental impact assessments and careful planning to balance energy production needs with conservation efforts. The ideal locations would be those that minimize deforestation, avoid sensitive ecosystems, and utilize land that has already been cleared for agricultural or other purposes.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
