Solar Energy Potential in Cachoeirinha, Rio Grande do Sul, Brazil

Cachoeirinha, Rio Grande do Sul, Brazil, located in the Southern Sub Tropics, offers varying potential for solar energy generation throughout the year. This location experiences significant seasonal fluctuations in solar electricity production that potential solar panel owners should consider. The seasonal solar production at this location shows a clear pattern. During summer, solar panels generate their highest output at 7.26kWh per day for each kilowatt installed. Spring follows as the second most productive season with 5.80kWh/day, while autumn yields 4.62kWh/day. Winter represents the lowest production period with just 3.24kWh/day per kilowatt of installed capacity.

Optimal Solar Panel Setup

For a fixed panel installation in Cachoeirinha, Rio Grande do Sul, the ideal angle to maximize year-round solar production is 26 degrees facing North. This specific tilt helps optimize energy capture across all seasons, balancing between the higher summer sun path and lower winter sun angles.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production at this location. Cachoeirinha experiences a humid subtropical climate with occasional heavy rainfall events that can temporarily reduce solar output. The region also faces seasonal weather patterns that include foggy mornings during certain times of year, which may delay peak production until later in the day. To mitigate these challenges, solar installations should incorporate several preventative measures. First, panels should be installed with sufficient drainage systems to prevent water accumulation. Self-cleaning panel technologies or regular maintenance schedules are recommended to address potential dust and pollen buildup, especially during flowering seasons. Additionally, using microinverters or power optimizers can help minimize production losses when partial shading occurs.

Seasonal Considerations

The substantial difference between summer and winter production (more than twice the daily output) suggests that system sizing should account for these seasonal variations. Consumers with higher winter electricity needs might need to oversize their systems or consider supplementary energy sources for the June-August period when production reaches its annual low. The data indicates that December through February represents the prime solar harvesting period, making it an excellent time for energy-intensive activities. Meanwhile, spring (September-November) offers the second-best production window, making these months also favorable for solar generation.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

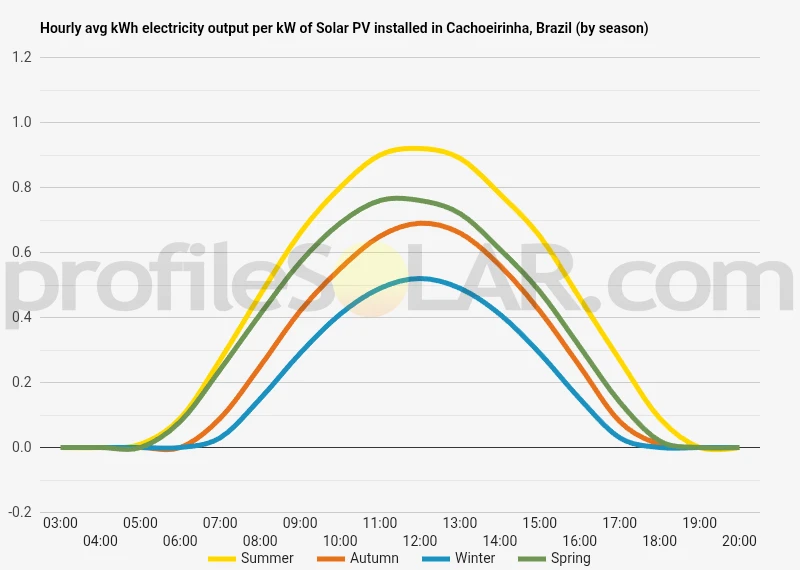

Solar output per kW of installed solar PV by season in Cachoeirinha

Seasonal solar PV output for Latitude: -29.9171, Longitude: -51.0893 (Cachoeirinha, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° North in Cachoeirinha, Brazil

To maximize your solar PV system's energy output in Cachoeirinha, Brazil (Lat/Long -29.9171, -51.0893) throughout the year, you should tilt your panels at an angle of 26° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cachoeirinha, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cachoeirinha, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° North in Summer	35° North in Autumn	45° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cachoeirinha, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cachoeirinha, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cachoeirinha, Brazil

The region surrounding Cachoeirinha, Brazil is characterized by a gently undulating topography typical of the eastern portions of Rio Grande do Sul state. Situated in the metropolitan area of Porto Alegre, Cachoeirinha lies within a transitional zone between the coastal plains to the east and the higher terrain that rises gradually to the north and west. The landscape around Cachoeirinha features relatively flat to moderately rolling terrain, with elevations generally ranging between 20 to 60 meters above sea level. The area is part of the larger geomorphological unit known as the Sul-Rio-Grandense Depression, which forms a corridor between the coastal plains and the inland highlands.

Hydrological Features

The region's topography is significantly influenced by the hydrological network, particularly the presence of the Rio Gravataí which flows near Cachoeirinha. This river and its tributaries have shaped the local terrain through centuries of erosion, creating subtle valleys and floodplains. The watershed includes numerous smaller streams and drainage channels that dissect the landscape, creating a patchwork of slightly elevated areas separated by shallow depressions.

Soil and Vegetation

The soils in this region vary from sandy loams to clay, with fertility generally increasing away from the coastal influence. Natural vegetation has been substantially altered by urban development and agricultural activities, though remnants of the original Atlantic Forest biome can still be found in protected areas and less developed sections.

Solar PV Suitability

For large-scale solar photovoltaic installations, the most suitable areas near Cachoeirinha would be the gently sloping terrain to the north and northwest of the urban center. These areas offer several advantages: The northern territories feature slightly elevated plateaus with gradual southern-facing slopes that receive consistent solar exposure throughout the year. The terrain in these areas is stable, with minimal risk of flooding or erosion that might compromise solar infrastructure. Areas to the west of Cachoeirinha, extending toward neighboring municipalities like Gravataí and Glorinha, also present favorable conditions. These locations feature open expanses with limited shading from topographical features, and the land is generally less developed than the densely populated urban core. The slightly higher elevations found in these northern and western zones also benefit from reduced fog incidence compared to the lowlands closer to water bodies, ensuring more reliable solar radiation reception.

Constraints and Considerations

While the topography is generally favorable, certain areas should be avoided for large-scale solar development. The floodplains of the Rio Gravataí and its tributaries experience periodic inundation and have unstable soils that would present challenges for solar infrastructure. Additionally, the southeastern portions closer to Porto Alegre face increasing urbanization pressure, making land acquisition more difficult and expensive. Environmental protection areas, particularly those preserving remnant wetlands and forest fragments, should also be excluded from consideration for solar development to maintain ecological integrity and comply with Brazilian environmental regulations. The most promising locations combine accessible, stable terrain with proximity to existing transmission infrastructure, particularly along the major transportation corridors that connect Cachoeirinha to neighboring municipalities.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
