Solar Energy Potential in Cachoeiro de Itapemirim, Brazil

Cachoeiro de Itapemirim, Brazil offers generally favorable conditions for solar PV energy generation throughout the year. Located in the tropics, this site experiences relatively consistent solar production patterns with seasonal variations that are less extreme than locations at higher latitudes. The solar energy output at this location shows a clear seasonal pattern, with the highest production occurring during summer months. During summer, each kilowatt of installed solar capacity can generate approximately 6.12 kWh per day, representing the peak production period of the year. Autumn follows with a slight decrease to 5.50 kWh per day, which still represents strong generation potential. Spring production is also robust at 5.13 kWh per day. Winter shows the lowest output with 4.56 kWh per day, but this reduction is relatively modest compared to the seasonal variations experienced in non-tropical locations.

Optimal Panel Installation

For maximizing year-round solar production at this location, fixed solar panels should be installed at a tilt angle of 20 degrees facing North. This specific angle has been calculated to optimize the total annual energy harvest based on the site's latitude and seasonal solar patterns.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production at this location:

• Tropical rainfall patterns, particularly during the wet season, may temporarily reduce solar output due to cloud cover
• High humidity levels can cause a slight reduction in panel efficiency
• Dust accumulation, especially during dry periods, can gradually decrease panel performance
• Potential vegetation growth causing shading if the installation site is near forested areas

Preventative Measures

To maximize energy production despite these challenges, several preventative measures can be implemented: Installing panels with self-cleaning technologies or implementing regular cleaning schedules can mitigate dust accumulation issues. Proper site selection away from tall vegetation and potential shade sources is crucial. Additionally, using panels with good performance in diffuse light conditions will help maintain reasonable production during cloudy periods of the wet season. System designs that incorporate micro-inverters or power optimizers can minimize the impact of partial shading when it does occur. Finally, ensuring adequate ventilation behind panels helps mitigate efficiency losses during periods of high temperature and humidity. With these considerations addressed, Cachoeiro de Itapemirim represents a location with strong year-round solar potential, with particular advantages during summer and autumn months.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

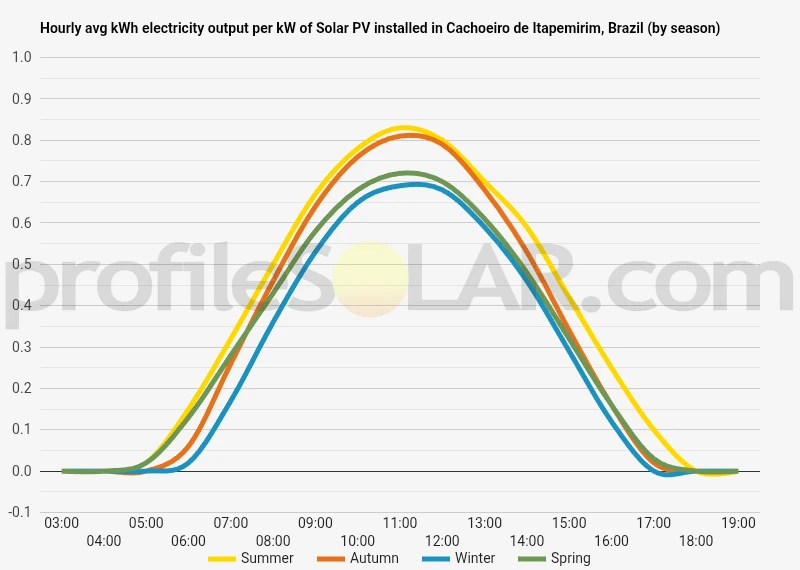

Solar output per kW of installed solar PV by season in Cachoeiro De Itapemirim

Seasonal solar PV output for Latitude: -20.8477, Longitude: -41.1129 (Cachoeiro De Itapemirim, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Cachoeiro De Itapemirim, Brazil

To maximize your solar PV system's energy output in Cachoeiro De Itapemirim, Brazil (Lat/Long -20.8477, -41.1129) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cachoeiro De Itapemirim, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cachoeiro De Itapemirim, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	26° North in Autumn	36° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cachoeiro De Itapemirim, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cachoeiro De Itapemirim, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cachoeiro De Itapemirim, Brazil

The topography around Cachoeiro de Itapemirim in southeastern Brazil presents a varied landscape characterized by rolling hills, mountains, valleys, and floodplains. This municipality, located in the southern portion of Espírito Santo state, sits within a region that transitions between coastal lowlands and the more elevated interior highlands.

Geographical Setting

Cachoeiro de Itapemirim is nestled in the Itapemirim River valley, surrounded by undulating terrain with notable elevation changes. The city itself lies at approximately 35 meters above sea level, while the surrounding areas feature hills that rise to several hundred meters. The landscape is part of the Atlantic Plateau, with the terrain becoming increasingly rugged as one moves westward toward the Serra do Caparaó mountain range. The Itapemirim River cuts through the region, creating fertile floodplains in some areas while carving valleys in others. This waterway has historically shaped both the topography and the development of human settlements in the region.

Notable Topographical Features

The area exhibits a predominantly hilly character with scattered mountains interspersed throughout the landscape. These elevation variations create numerous slopes with different orientations and gradients. Some hillsides feature exposed rock formations, while others support vegetation ranging from agricultural lands to remnants of Atlantic Forest. Marble and granite outcroppings are common in the region, reflecting the area's geological richness that has made Cachoeiro de Itapemirim famous for its ornamental stone industry. These rocky formations contribute to the irregular topography and visual diversity of the landscape.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, several factors related to topography must be considered. The most suitable areas near Cachoeiro de Itapemirim would include: Gently sloping hillsides with northern exposure would be particularly advantageous in the Southern Hemisphere as they receive more consistent solar radiation throughout the year. These areas can be found in the more open terrain to the north and northeast of the city. The flatter plateaus and hilltops in the region offer excellent potential for solar farms as they typically have minimal shading from surrounding features. Several such elevated flat areas exist within 20-30 kilometers of the city center. The drier areas to the west and northwest of Cachoeiro, where the terrain begins to flatten somewhat before rising toward the mountain ranges, present opportunities for development. These locations often have less cloud cover compared to areas closer to the coast.

Topographical Challenges

Despite the potential, certain topographical characteristics present challenges for solar development. The deeply cut valleys can experience significant shading during portions of the day, reducing their suitability for solar installations. Additionally, the steeper hillsides would require substantial grading work, increasing development costs and environmental impact. Areas along the Itapemirim River and its tributaries, while accessible, are subject to periodic flooding and are generally better suited to agriculture than energy infrastructure. The more rugged mountainous zones to the west also present construction challenges despite their elevation advantages.

Land Use Considerations

The region's topography has historically directed land use toward certain patterns that must be considered when evaluating solar potential. Many of the gentler slopes and valleys are currently dedicated to agriculture, particularly coffee cultivation and dairy farming. The marble and granite quarries occupy significant portions of the hilly terrain. The most promising areas for solar development may therefore be the transitional zones between agricultural lowlands and steeper uplands - areas with moderate slopes that receive abundant sunlight but are less suitable for traditional farming or extraction industries. In summary, the diverse topography around Cachoeiro de Itapemirim offers several promising locations for solar development, particularly on northern-facing gentle slopes, elevated plateaus, and the somewhat flatter terrain to the west of the city. These areas combine favorable orientation with practical development potential, making them worthy of further site-specific assessment.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
