Cacimba de Dentro, Brazil presents an excellent location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates -6.6208, -35.8039, this region benefits from consistent sunlight throughout most of the year, with seasonal variations typically defined by wet and dry periods rather than dramatic temperature changes.

Solar Energy Production Potential

The solar energy output data reveals strong performance across all seasons. Spring emerges as the peak production period, generating 7.14kWh per day per kW of installed solar capacity. Summer follows closely with 6.36kWh/day per kW, while autumn maintains solid output at 5.95kWh/day per kW. Even during winter, the weakest season, production remains robust at 5.41kWh/day per kW. This seasonal pattern indicates that Cacimba de Dentro experiences its optimal solar generation during spring and summer months, making it particularly attractive for solar installations. The relatively modest variation between seasons demonstrates the reliability of solar energy at this tropical location.

Optimal Panel Configuration

For maximum year-round energy production, solar panels should be installed at a fixed tilt angle of 6 degrees facing north. This angle has been calculated to optimize total annual solar output by accounting for the sun's path throughout the year, Earth's elliptical orbit, and daily solar irradiance patterns specific to this latitude.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Cacimba de Dentro:

• Seasonal rainfall patterns: The tropical wet season can bring heavy rains and increased cloud cover, temporarily reducing solar irradiance
• Dust and particulate matter: Dry seasons may result in dust accumulation on panel surfaces, decreasing efficiency
• High humidity: Tropical humidity can affect electrical components and create condensation issues
• Intense UV exposure: Strong tropical sunlight may accelerate degradation of panel materials over time

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Regular cleaning schedules: Implement frequent panel cleaning, especially during dry periods when dust accumulation is highest
• Proper drainage design: Ensure adequate water runoff during heavy rains to prevent standing water and promote self-cleaning
• Quality component selection: Choose panels and inverters rated for high humidity and temperature extremes typical of tropical climates
• Adequate ventilation: Design mounting systems that allow proper airflow beneath panels to reduce heat buildup and moisture retention
• Protective coatings: Consider anti-reflective and hydrophobic coatings that help panels shed water and resist soiling

Despite these considerations, Cacimba de Dentro remains highly suitable for solar energy generation, with its consistent tropical sunlight far outweighing the manageable challenges presented by the local climate.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

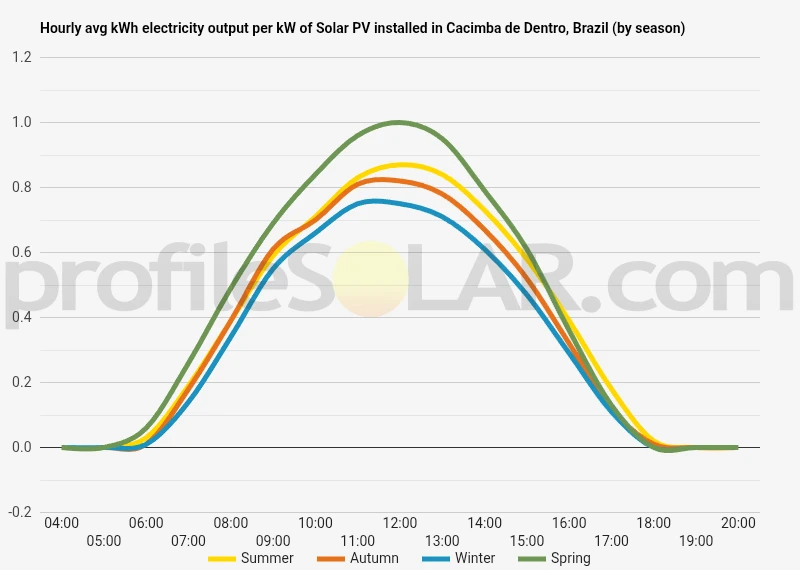

Solar output per kW of installed solar PV by season in Cacimba De Dentro

Seasonal solar PV output for Latitude: -6.6208, Longitude: -35.8039 (Cacimba De Dentro, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 6° North in Cacimba De Dentro, Brazil

To maximize your solar PV system's energy output in Cacimba De Dentro, Brazil (Lat/Long -6.6208, -35.8039) throughout the year, you should tilt your panels at an angle of 6° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cacimba De Dentro, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cacimba De Dentro, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 6° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° South in Summer	13° North in Autumn	22° North in Winter	0° in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cacimba De Dentro, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cacimba De Dentro, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cacimba De Dentro, Brazil

Topographical Features of the Cacimba de Dentro Region

Cacimba de Dentro sits within the interior highlands of Paraíba state in northeastern Brazil, positioned in what geographers call the Borborema Plateau. This elevated region forms part of the broader Brazilian Highlands system, characterized by rolling hills, shallow valleys, and relatively gentle slopes that extend across much of the state's central territory. The terrain around Cacimba de Dentro typically ranges from 400 to 600 meters above sea level, creating a landscape of undulating countryside punctuated by occasional rocky outcrops and inselbergs.

The local topography reflects the underlying geological structure of ancient crystalline rocks, primarily composed of Precambrian granite and gneiss formations. These resistant rock types have weathered over millions of years to create a landscape of rounded hills and broad, shallow depressions. The area experiences a semi-arid climate typical of the Caatinga biome, resulting in sparse vegetation coverage that consists mainly of drought-resistant shrubs, cacti, and small thorny trees.

Water features in the region are generally intermittent, with seasonal streams and small reservoirs that fill during the rainy season but may dry up during extended dry periods. The drainage pattern follows the natural contours of the land, with water flowing generally eastward toward the Atlantic coastal plain through a network of tributaries that eventually feed into larger river systems.

Optimal Areas for Large-Scale Solar Development

The gently rolling terrain surrounding Cacimba de Dentro presents several advantages for large-scale solar photovoltaic installations. The most suitable areas would be the broad, relatively flat valley floors and gentle hillsides with southern exposure, which receive consistent solar radiation throughout the day. These locations typically offer gradual slopes of less than 5 degrees, minimizing the need for extensive grading and reducing installation costs.

Areas to the south and southeast of the town center appear particularly well-suited for solar development, where the terrain opens into wider valleys with good access to existing road infrastructure. The sparse vegetation in these semi-arid zones means minimal clearing would be required, and the stable geological foundation of crystalline bedrock provides excellent support for solar mounting systems.

The elevated plateau environment offers additional benefits for solar installations, including lower ambient temperatures compared to lower-lying areas, which can improve photovoltaic panel efficiency. The region's distance from major urban centers also means minimal issues with air pollution or atmospheric haze that might reduce solar irradiance.

Transportation access represents another crucial factor favoring this region for solar development. The area benefits from connections to state highways that link to major population centers along the coast, facilitating the movement of equipment during construction and enabling efficient connection to the electrical grid infrastructure that serves the region's urban markets.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
