Solar Energy Potential in Cacimbas, Paraíba, Brazil

Cacimbas, Paraíba, Brazil, located at latitude -7.2281 and longitude -37.1013, offers promising conditions for solar energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns that follow wet and dry seasons rather than dramatic temperature changes across the four meteorological seasons. The solar energy production potential in Cacimbas shows strong year-round performance with seasonal variations. During spring, the location achieves its peak production at 7.48 kWh per day for each kilowatt of installed capacity. Summer follows with 6.58 kWh/day, while autumn produces 6.25 kWh/day per installed kilowatt. Winter represents the lowest production period but still delivers a respectable 5.78 kWh/day.

Optimal Panel Installation

For maximizing solar energy capture in Cacimbas, Paraíba, fixed solar panels should be tilted at 6 degrees facing North. This specific angle has been calculated to optimize year-round energy production based on the location's position relative to the sun's path throughout the year. This slight tilt helps compensate for the location's position south of the equator.

Environmental and Weather Considerations

Several environmental factors could affect solar production in Cacimbas. The region experiences a distinct rainy season, typically occurring during the summer months (December to March), which can temporarily reduce solar efficiency due to cloud cover. During these months, energy production might fluctuate despite the generally high potential. Dust accumulation presents another challenge in this semi-arid region. The combination of dry periods and occasional winds can deposit significant dust on panel surfaces, potentially reducing efficiency by 5-15% if left unaddressed.

Preventative Measures

To mitigate these challenges, several practical solutions can be implemented:

• Install automated or scheduled cleaning systems to remove dust accumulation, particularly during the dry season
• Use anti-soiling coatings on panel surfaces to reduce dust adhesion and facilitate natural cleaning during rainfall
• Implement slightly elevated mounting structures to minimize dust accumulation and improve natural air circulation
• Consider microinverter or power optimizer technology to reduce the impact of partial shading on overall system performance
• Design the system with a modest overcapacity to compensate for reduced output during the rainy season

With these measures in place, a solar installation in Cacimbas can effectively capitalize on the location's strong solar resources throughout the year, with spring and summer offering particularly favorable conditions for energy generation.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

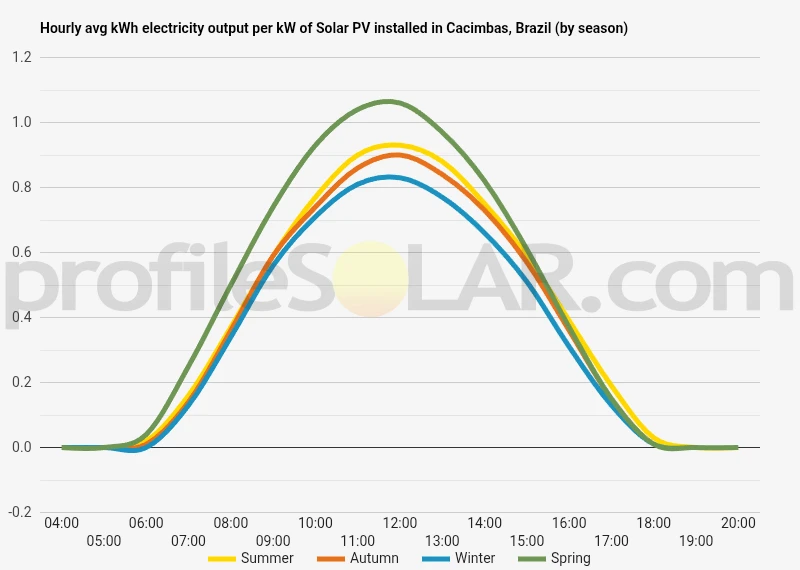

Solar output per kW of installed solar PV by season in Cacimbas

Seasonal solar PV output for Latitude: -7.2281, Longitude: -37.1013 (Cacimbas, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 6° North in Cacimbas, Brazil

To maximize your solar PV system's energy output in Cacimbas, Brazil (Lat/Long -7.2281, -37.1013) throughout the year, you should tilt your panels at an angle of 6° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cacimbas, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cacimbas, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 6° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° South in Summer	13° North in Autumn	23° North in Winter	1° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cacimbas, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cacimbas, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cacimbas, Brazil

The region surrounding Cacimbas, located in the northeastern state of Paraíba in Brazil, presents a distinctive topographical landscape characteristic of Brazil's semi-arid interior. This area sits within the Borborema Plateau, a significant geological formation that dominates much of northeastern Brazil's interior. The terrain around Cacimbas features undulating hills and modest elevations, typically ranging between 400 to 700 meters above sea level. The landscape is marked by a rugged character with numerous rocky outcrops and shallow soil formations. These geological features are the result of centuries of erosion processes acting upon the crystalline bedrock that forms the foundation of the region. The terrain exhibits a gentle to moderate slope in many areas, creating natural drainage patterns that become particularly evident during the rainy season.

Vegetation and Land Cover

The native vegetation surrounding Cacimbas consists primarily of caatinga, a unique biome found exclusively in Brazil. This ecosystem is characterized by drought-resistant shrubs, cacti, and sparse woodland that has adapted to the region's semi-arid conditions. The vegetation density varies seasonally, with dramatic transformations occurring between dry and wet periods. Land use in the vicinity includes small-scale agriculture, predominantly subsistence farming, with patches of cleared land interspersed among the natural vegetation. Larger open spaces can be found on plateaus and in valleys where the terrain flattens.

Optimal Areas for Solar PV Development

The topographical characteristics of the region present several promising locations for large-scale solar photovoltaic installations. The most suitable areas for solar PV development near Cacimbas include: The elevated plateaus to the north and northwest of Cacimbas offer excellent potential for solar installations. These areas benefit from relatively flat terrain at higher elevations, minimizing shadowing effects and maximizing solar exposure throughout the day. The natural drainage of these plateaus also reduces the risk of flooding, which is an important consideration for infrastructure development. The gently sloping areas to the southeast of Cacimbas, extending toward the municipality of Patos, present another favorable location. These lands feature minimal vegetation obstruction and good accessibility via existing road networks, which would facilitate construction and maintenance operations for solar facilities. The broad valley floors that run roughly northeast to southwest through the region provide expansive flat terrain ideal for large-scale installations. These areas typically have thinner vegetation coverage and deeper soil profiles that can simplify foundation work for mounting systems.

Topographical Challenges

Despite the region's overall suitability, certain topographical features present challenges for solar development. The intermittent rocky outcrops throughout the landscape may require selective site planning to avoid areas with excessive surface stone or shallow bedrock. Additionally, the natural drainage channels that cross the terrain need careful consideration during site design to prevent erosion and potential damage to solar infrastructure during intense rainfall events. The undulating nature of some sections of the landscape might necessitate terracing or careful array layout to maximize efficiency, though modern tracking systems can help mitigate the effects of varying slopes. In conclusion, the topography around Cacimbas offers considerable potential for solar PV development, with the most promising sites being the northern plateaus, southeastern slopes, and valley floors. These areas combine favorable terrain characteristics with the region's inherent solar resources, creating opportunities for renewable energy development that could bring significant economic benefits to this semi-arid region of northeastern Brazil.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
