Cajamar, Brazil presents a moderately good location for year-round solar energy generation, though it's not among the most ideal solar locations globally. The area experiences relatively consistent solar production throughout the year, with seasonal variations that reflect the typical patterns of Brazil's subtropical climate.

Seasonal Solar Production Performance

The solar energy output at this location shows clear seasonal patterns. Summer delivers the strongest performance at 6.06 kWh per day per kW of installed capacity, making it the prime season for solar generation. Spring follows as the second-best period with 5.33 kWh daily, while autumn produces 5.06 kWh per day. Winter represents the lowest production period at 4.16 kWh daily per kW installed. For optimal year-round energy harvest, solar panels should be installed at a fixed tilt angle of 22 degrees facing north. This angle maximizes total annual production by accounting for the sun's varying position throughout the year and the location's specific latitude.

Environmental and Weather Challenges

Several local factors can potentially impact solar energy production in Cajamar. The region's tropical climate brings distinct wet and dry seasons, with the rainy period typically reducing solar output due to increased cloud cover and atmospheric moisture. Heavy rainfall and high humidity levels can also lead to dust and debris accumulation on solar panels, further diminishing efficiency. Air pollution from nearby São Paulo metropolitan area may create additional challenges, as smog and particulate matter can reduce the amount of sunlight reaching the solar panels. The area's occasional severe weather events, including strong winds and hailstorms, pose potential risks to solar installations.

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies prove beneficial:

• Install panels with adequate spacing to promote air circulation and natural cleaning during rain
• Use high-quality mounting systems designed to withstand strong winds and weather extremes
• Implement regular cleaning schedules, particularly during dry seasons when dust accumulation peaks
• Consider anti-reflective coatings that maintain efficiency even with some surface contamination
• Install monitoring systems to quickly identify and address performance issues

The location's consistent year-round sunlight availability, despite seasonal variations, makes it reasonably suitable for solar energy projects when proper installation and maintenance practices are followed.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

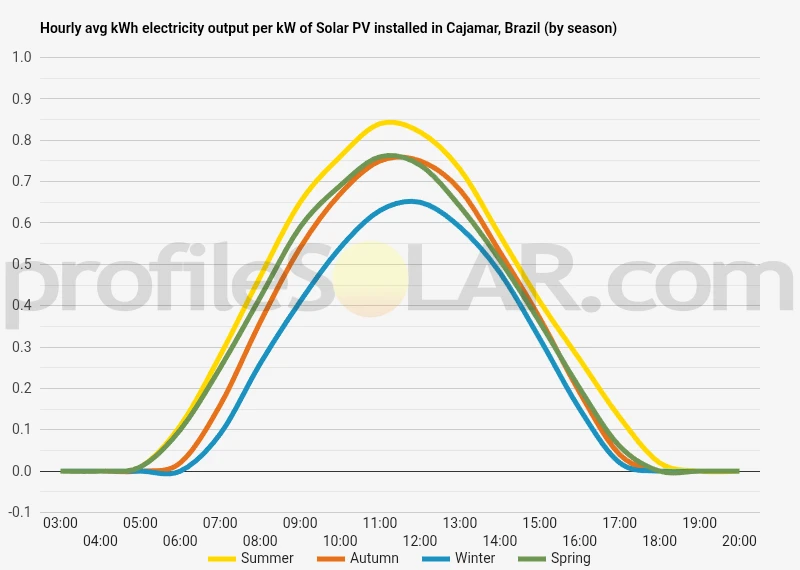

Solar output per kW of installed solar PV by season in Cajamar

Seasonal solar PV output for Latitude: -23.3516, Longitude: -46.8811 (Cajamar, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° North in Cajamar, Brazil

To maximize your solar PV system's energy output in Cajamar, Brazil (Lat/Long -23.3516, -46.8811) throughout the year, you should tilt your panels at an angle of 22° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cajamar, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cajamar, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° North in Summer	29° North in Autumn	39° North in Winter	17° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cajamar, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cajamar, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cajamar, Brazil

Topography Around Cajamar

The region surrounding Cajamar in São Paulo state features a diverse landscape characterized by rolling hills, valleys, and relatively gentle terrain typical of the Brazilian Highlands. This area sits within the Atlantic Plateau, where elevations generally range from 700 to 900 meters above sea level. The topography includes numerous small ridges and undulating terrain that creates a mosaic of slopes facing different directions. The landscape is punctuated by several river valleys, including tributaries of the Tietê River system, which have carved gentle depressions through the terrain over millennia. These valleys are interspersed with broader plateaus and mesa-like formations that provide relatively flat expanses of land. The geology consists primarily of crystalline rocks and sedimentary formations, creating stable foundations suitable for various development purposes. Much of the natural vegetation has been modified by human activity, with the original Atlantic Forest giving way to agricultural lands, urban development, and industrial facilities. The terrain generally exhibits good drainage characteristics due to the undulating nature of the landscape, which helps prevent water accumulation in most areas.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations in the Cajamar vicinity would be the elevated plateau areas and broader ridge tops that offer relatively flat terrain. These elevated positions provide several advantages, including reduced shading from surrounding topographic features and better exposure to direct sunlight throughout the day. The mesa-like formations scattered throughout the region present particularly attractive opportunities, as they combine flat surfaces with good elevation. Areas with gentle south-facing slopes could also prove beneficial, as they would receive optimal solar exposure in this Southern Hemisphere location. The broader valley floors, while flatter, may be less ideal due to potential morning and evening shading from surrounding hills and ridges. However, the wider valleys that run in an east-west orientation could still accommodate large installations effectively. The stable geological conditions throughout the region provide good foundations for solar panel mounting systems, while the generally well-drained soils reduce concerns about flooding or waterlogging that could affect equipment. Areas that have already been cleared of native vegetation and are currently used for agriculture or are designated as industrial zones would be particularly suitable, as they would minimize environmental impact while providing the necessary space for large-scale solar farms. Transportation access is another crucial factor, and locations near existing road networks would facilitate both construction and ongoing maintenance operations. The proximity to São Paulo's industrial corridor also provides advantages in terms of electrical grid connectivity and infrastructure support for major solar installations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
