Solar Energy Potential in Cajati, São Paulo, Brazil

Cajati, São Paulo, Brazil, located in the Southern Sub Tropics, offers a promising location for solar PV energy generation throughout the year, though with seasonal variations. The location experiences its highest energy production during summer months, with an average of 5.95 kWh per day for each kilowatt of installed solar capacity. The energy production decreases during autumn to 4.54 kWh/day and reaches its lowest point in winter at 3.70 kWh/day per kilowatt installed. As spring arrives, production increases again to 4.79 kWh/day, showing a clear seasonal pattern that follows the sun's position throughout the year. For maximizing year-round solar energy production at this location, fixed solar panels should be installed at a tilt angle of 22 degrees facing North. This specific angle has been calculated to optimize annual energy capture based on Cajati's position at latitude -24.7716, taking into account the Earth's elliptical orbit and the varying solar elevation angles throughout the year.

Environmental and Weather Considerations

Several environmental factors in Cajati may affect solar production. The region experiences a humid subtropical climate with significant rainfall, particularly during summer months. This high humidity and cloud cover can temporarily reduce solar output despite the longer summer days. Additionally, the area's proximity to the Atlantic Forest biome means there can be morning fog in certain seasons, potentially delaying peak production until later in the day. Dust accumulation may also be a factor during drier periods.

Preventative Measures for Optimal Production

To maximize solar energy production in Cajati, São Paulo, several preventative measures can be implemented:

• Install self-cleaning panels or implement a regular cleaning schedule to address dust and pollen accumulation
• Use micro-inverters or power optimizers to minimize the impact of partial shading from clouds or nearby vegetation
• Consider slightly adjusting the tilt angle seasonally if the mounting system allows, tilting more toward North during winter months
• Implement proper drainage systems around ground-mounted installations to prevent flooding during heavy rain periods
• Select panels with good performance in high-temperature and high-humidity environments, as these conditions are common in this subtropical region

Despite the seasonal variations, Cajati's position in the Southern Sub Tropics provides sufficient solar radiation throughout the year to make solar PV installations viable, with the summer months being particularly productive for energy generation.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

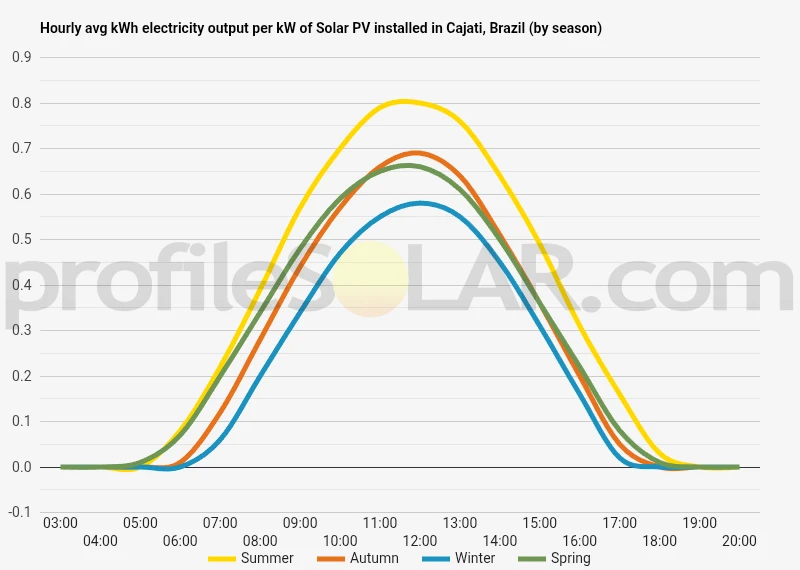

Solar output per kW of installed solar PV by season in Cajati

Seasonal solar PV output for Latitude: -24.7716, Longitude: -48.2011 (Cajati, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° North in Cajati, Brazil

To maximize your solar PV system's energy output in Cajati, Brazil (Lat/Long -24.7716, -48.2011) throughout the year, you should tilt your panels at an angle of 22° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cajati, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cajati, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° North in Summer	30° North in Autumn	40° North in Winter	18° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cajati, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cajati, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cajati, Brazil

The region around Cajati, Brazil, located in the southern part of São Paulo state, features a diverse topography characterized primarily by rolling hills and valleys. Positioned near the Serra do Mar mountain range, the landscape transitions from coastal lowlands to more elevated terrain moving inland. The area sits within the Atlantic Forest biome, one of the most biodiverse yet threatened ecosystems in the world.

Topographical Features

Cajati's terrain consists of undulating hills interspersed with flatter areas, particularly along river valleys. The elevation gradually increases as one moves away from the coast, with some surrounding hills reaching several hundred meters above sea level. This varied relief creates a patchwork landscape where steeper slopes alternate with gentler gradients and small plateaus. The region is crossed by numerous streams and rivers that have carved valleys through the landscape over millennia. These waterways, part of the Ribeira de Iguape River basin, have shaped the local topography significantly, creating natural drainage channels and fertile alluvial areas in the valley bottoms.

Geological Context

Geologically, the area around Cajati is notable for its mineral resources, particularly phosphate deposits. The region's bedrock consists primarily of metamorphic and igneous formations, with significant limestone occurrences that have influenced both the natural landscape and human activities in the region. The soil composition varies across the area, with richer, deeper soils in the valley bottoms and thinner, less developed soils on steeper slopes. This variation affects vegetation patterns and land use possibilities throughout the region.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic installations, the most suitable areas near Cajati would be the flatter plateaus and gentler slopes that receive consistent solar exposure. The ideal locations would include: The more level terrain to the west and northwest of Cajati offers some promising sites. These areas feature less dramatic relief than the mountains to the east and provide more contiguous flat or gently sloping land that could accommodate large solar arrays. Some of the broader valley floors, particularly those oriented in an east-west direction, could provide suitable locations with good solar exposure throughout the day. These areas tend to have fewer tall trees that might cast shadows and often feature improved accessibility via existing road networks. Abandoned or less productive agricultural lands on the gentler slopes around Cajati present opportunities for solar development without competing with high-value agricultural production. These areas often have already been cleared of dense forest vegetation, reducing the environmental impact of new installations.

Topographical Challenges

The region's varied topography does present certain challenges for solar development. The steeper hillsides, while receiving good sunlight, would require significant earthwork to prepare for installations, increasing costs and environmental impacts. Additionally, the numerous streams and small rivers create natural divisions in the landscape that would need to be accommodated in any large-scale development plans. Areas closer to the Serra do Mar mountains to the east experience more complex topography with deeper valleys and steeper slopes, making them less suitable for extensive solar arrays despite potentially good solar resources. The region's relatively high rainfall and humidity levels, influenced by the proximity to the Atlantic Ocean and the mountainous terrain, could affect solar panel efficiency and maintenance requirements, though modern panel technologies can mitigate many of these concerns.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
