Cajobi, São Paulo, Brazil presents a highly favorable location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates -20.8871, -48.8513, this region benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods than dramatic changes in solar availability.

Solar Energy Output Performance

The solar energy production data for Cajobi demonstrates strong performance across all seasons. Summer delivers the highest output at 6.97 kWh per day per kW of installed solar capacity, making it the peak generation period. Spring follows closely with 6.40 kWh/day per kW, while autumn produces 5.82 kWh/day per kW. Even during winter, the weakest production season, the location still generates a respectable 5.18 kWh/day per kW. This seasonal pattern shows that Cajobi maintains relatively high solar production year-round, with only about a 25% difference between the best and worst performing seasons. The summer and spring months represent the ideal times for maximum solar generation, though the location remains viable for solar energy production throughout the entire year. For optimal performance, fixed solar panel installations at this location should be tilted at 19 degrees toward the north. This angle has been calculated to maximize total year-round solar production by accounting for the sun's path throughout the seasons and weighting the optimal daily angles by actual solar irradiance potential.

Environmental and Weather Considerations

Several local factors could potentially impact solar production in Cajobi and require consideration during installation planning:

• Wet season rainfall and humidity: The tropical climate brings periods of heavy rainfall and high humidity that can reduce solar irradiance and create moisture-related issues
• Dust and particulate accumulation: Dry season conditions can lead to dust buildup on solar panels, reducing their efficiency
• Tropical storms: The region may experience severe weather events that could damage solar installations
• High temperatures: Intense tropical heat can reduce solar panel efficiency and accelerate equipment degradation

Preventative Installation Measures

To maximize energy production despite these challenges, several preventative measures should be implemented: Regular cleaning systems or schedules become essential to remove dust, pollen, and other debris that accumulate on panel surfaces. Installing panels with adequate ventilation and spacing helps manage heat buildup, while using temperature-resistant components and proper grounding protects against thermal stress and electrical issues. Robust mounting systems designed to withstand high winds and storm conditions are crucial for long-term reliability. Additionally, implementing proper drainage around installations prevents water accumulation during heavy rains, and using corrosion-resistant materials helps combat the effects of high humidity. Monitoring systems that track performance can quickly identify when cleaning or maintenance is needed, ensuring optimal energy production throughout the year. With proper installation techniques and maintenance protocols, Cajobi's excellent solar resource can be effectively harnessed for reliable renewable energy generation.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

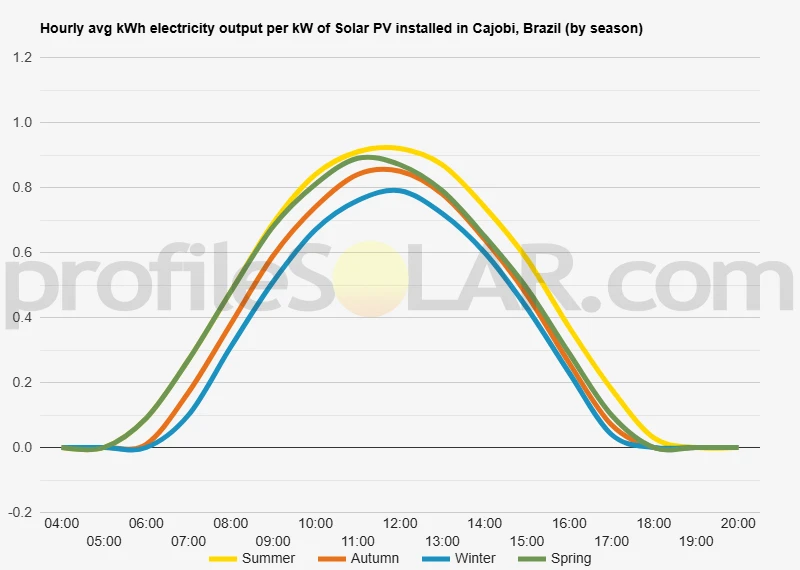

Solar output per kW of installed solar PV by season in Cajobi

Seasonal solar PV output for Latitude: -20.8871, Longitude: -48.8513 (Cajobi, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Cajobi, Brazil

To maximize your solar PV system's energy output in Cajobi, Brazil (Lat/Long -20.8871, -48.8513) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cajobi, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cajobi, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	27° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cajobi, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cajobi, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cajobi, Brazil

Topographical Features Around Cajobi

Cajobi sits within the gently rolling landscape of northwestern São Paulo state, characterized by relatively modest elevation changes and predominantly agricultural terrain. The region forms part of the Brazilian Plateau, featuring undulating hills that rarely exceed 600 meters above sea level. The topography consists mainly of gentle slopes and broad valleys, creating a landscape that appears almost table-like from a distance, with occasional steeper inclines breaking the otherwise gradual contours.

The area surrounding Cajobi is dominated by extensive agricultural lands, particularly sugarcane plantations and cattle pastures, which have shaped the current land use patterns. These farming operations have resulted in large cleared areas with minimal tree coverage, creating expansive open spaces across the rolling terrain. The natural vegetation that once covered this region was primarily cerrado savanna, though most has been converted to agricultural use over the decades.

Water features in the vicinity include several small streams and seasonal watercourses that flow generally northward toward the Grande River system. These waterways have carved shallow valleys into the landscape, creating subtle drainage patterns that influence the local topography. The soil composition consists largely of red latosols typical of the Brazilian Plateau, which are generally well-drained and stable.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be the broad, gently sloping plateaus that extend southward and eastward from Cajobi. These areas offer the ideal combination of minimal slope variation, excellent drainage characteristics, and existing cleared land that would require minimal preparation. The gradual southern-facing slopes in particular would provide optimal positioning for solar panel arrays while maintaining stable ground conditions.

The extensive agricultural areas immediately surrounding the municipality present excellent opportunities for solar development, as much of this land consists of relatively flat to gently rolling terrain with established access roads and proximity to existing electrical infrastructure. The cleared pasturelands especially offer ready-made sites that would require minimal environmental impact assessments compared to forested areas.

Areas to the west and northwest of Cajobi also show strong potential, where the topography becomes even more subdued and the landscape opens into broader agricultural valleys. These locations benefit from stable geological conditions and good accessibility via the existing rural road network. The consistent elevation and minimal shading from topographical features make these western areas particularly attractive for large-scale solar installations.

The region's well-established agricultural infrastructure, including access roads, electrical connections, and maintenance facilities, would support the development and ongoing operation of solar facilities. The relatively stable climate patterns and infrequent severe weather events typical of this part of São Paulo state create favorable conditions for long-term solar energy investments.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
