Solar Energy Potential in Caldas Novas, Goiás, Brazil

Caldas Novas, Goiás, Brazil, located at latitude -17.734 and longitude -48.6594, offers excellent conditions for solar energy generation throughout the year. This tropical location benefits from consistent sunlight patterns, making it a promising site for solar photovoltaic (PV) installations. The seasonal electricity output shows remarkable stability across the year. During summer, solar panels can generate approximately 6.61 kWh per day for each kilowatt of installed capacity. This production decreases slightly to 6.02 kWh/day in autumn and reaches its lowest point in winter at 5.73 kWh/day. Spring brings a recovery to 6.30 kWh/day. This relatively small variation between seasons (less than 1 kWh/day difference between the highest and lowest production periods) demonstrates the location's consistent solar potential.

Optimal Panel Installation

For fixed solar panel installations in Caldas Novas, Goiás, the ideal tilt angle to maximize year-round energy production is 17 degrees facing North. This specific angle has been calculated based on the location's latitude and seasonal solar patterns to capture the maximum possible sunlight throughout the year.

Environmental and Weather Considerations

Despite the favorable conditions, some environmental factors could affect solar production in Caldas Novas:

• Heavy rainfall during the wet season can temporarily reduce solar efficiency due to cloud cover
• Dust accumulation is common in tropical areas, especially during dry seasons
• High temperatures in summer months can slightly reduce panel efficiency

To mitigate these challenges, several preventative measures can be implemented. Installing panels with self-cleaning technologies or implementing regular cleaning schedules can address dust accumulation. Using temperature-resistant panels specifically designed for tropical climates will help maintain efficiency during hot periods. Additionally, slightly increasing the panel tilt beyond the recommended 17 degrees may improve self-cleaning during rainy periods, though this trades off against optimal angle efficiency.

Best Production Periods

Summer clearly stands out as the peak production season in Caldas Novas, Goiás, with its 6.61 kWh/day output. However, the relatively small seasonal variation means that solar energy remains viable year-round. The spring months also offer excellent generation potential at 6.30 kWh/day, making these two seasons particularly advantageous for solar energy harvesting. Overall, Caldas Novas represents a near-ideal location for solar PV installations, with its position in the tropics providing dependable solar resource throughout the year and minimal seasonal fluctuations in energy production.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

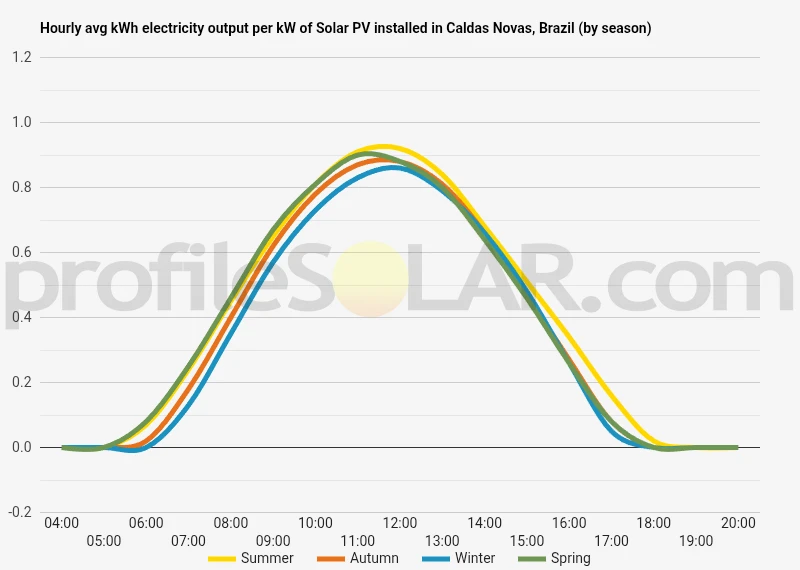

Solar output per kW of installed solar PV by season in Caldas Novas

Seasonal solar PV output for Latitude: -17.734, Longitude: -48.6594 (Caldas Novas, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 17° North in Caldas Novas, Brazil

To maximize your solar PV system's energy output in Caldas Novas, Brazil (Lat/Long -17.734, -48.6594) throughout the year, you should tilt your panels at an angle of 17° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Caldas Novas, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Caldas Novas, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 17° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
2° North in Summer	24° North in Autumn	33° North in Winter	12° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Caldas Novas, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Caldas Novas, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Caldas Novas, Brazil

Caldas Novas is situated in the central Brazilian state of Goiás, characterized by a diverse topography that combines rolling hills, plateaus, and valleys. The region lies at an elevation of approximately 700 meters above sea level, placing it within Brazil's Central Plateau (Planalto Central). This highland area features gentle undulations rather than dramatic mountain ranges, creating a landscape of moderate relief with occasional more pronounced elevations.

Surrounding Landscape

The area around Caldas Novas displays a blend of cerrado (tropical savanna) vegetation interspersed with patches of deciduous forest. The terrain generally slopes downward from the northwest to the southeast, with numerous small streams and rivers carving shallow valleys through the landscape. The Serra de Caldas (Caldas Hills) represents the most significant topographical feature in the immediate vicinity, forming a circular plateau that rises about 150-200 meters above the surrounding terrain. The local geology is notable for its thermal springs, which have made Caldas Novas famous as a spa destination. These springs emerge from deep underground where groundwater is heated by geothermal activity associated with ancient volcanic processes, though the topography shows little evidence of volcanic features at the surface today.

Ideal Areas for Solar Development

For large-scale solar photovoltaic installations, the gently rolling plains to the east and southeast of Caldas Novas present the most favorable conditions. These areas combine several advantageous characteristics: The terrain in these directions features extensive relatively flat or gently sloping land, which minimizes the costs associated with land preparation and maximizes the efficiency of panel placement. The moderate elevation provides good exposure to sunlight throughout the day, with limited shadowing from topographical features. The northeastern sector extending toward Ipameri offers particularly promising conditions, with open landscapes that have already seen some agricultural development, suggesting accessible infrastructure. The soil composition in these areas—predominantly lateritic and sandy—provides good drainage and stable foundations for solar infrastructure. Areas to avoid include the more densely vegetated zones to the west and the steeper slopes of the Serra de Caldas. These locations would require more extensive clearing and grading, increasing both environmental impact and installation costs. The southwestern corridor toward Rio Quente also offers potential, featuring gradually descending terrain with good solar exposure and proximity to existing power transmission infrastructure. This area benefits from reduced cloud cover compared to higher elevation zones in the region. The natural drainage patterns of the territory, flowing generally toward the Paranaíba River basin, provide additional advantages for site planning, allowing developers to avoid flood-prone areas while utilizing the natural contours for optimal panel orientation.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
