Caldas, Minas Gerais, Brazil presents a very favorable location for year-round solar energy generation, with the tropical climate providing consistent sunlight throughout most of the year. The solar output data shows strong performance across all seasons, making this an excellent choice for solar PV installations.

Seasonal Solar Performance

The location demonstrates impressive energy production potential throughout the year. Summer delivers the highest output at 6.36kWh per day per kW of installed solar capacity, followed closely by spring at 6.02kWh per day per kW. Even during the lowest-performing season of winter, the location still generates a respectable 5.05kWh per day per kW, while autumn produces 5.62kWh per day per kW. The relatively small variation between seasons - only about 26% difference between the best and worst performing periods - indicates excellent year-round reliability. This consistency makes Caldas particularly attractive for solar investments, as energy production remains predictable throughout the year.

Optimal Installation Setup

For maximum year-round energy production at this location, solar panels should be installed at a fixed tilt angle of 21 degrees facing North. This optimal angle has been calculated by analyzing daily solar elevation angles, determining optimal panel positioning, and weighting these factors using solar irradiance data while accounting for Earth's elliptical orbit patterns.

Environmental and Weather Considerations

Several local factors could potentially impact solar energy production in Caldas and should be considered during installation planning:

• Wet season impacts: Heavy rainfall during wet seasons can reduce solar irradiance and create temporary shading from cloud cover
• Dust and debris accumulation: Dry periods may lead to dust buildup on panels, reducing efficiency
• High humidity: Tropical humidity can affect electrical components and connections over time
• Vegetation growth: Rapid plant growth in tropical climates can create shading issues if not managed

Preventative Measures for Optimal Performance

To maximize energy production and system longevity, several installation strategies should be implemented: Regular cleaning schedules become essential, particularly during dry periods when dust accumulation is highest. Installing panels with adequate spacing allows for proper air circulation, helping to manage humidity-related issues and prevent overheating. Proper drainage systems should be incorporated into the installation design to handle heavy rainfall typical of tropical wet seasons. This prevents water pooling that could damage electrical components or create safety hazards. Vegetation management around the solar installation site requires ongoing attention. Establishing clear zones around panels and implementing regular trimming schedules prevents shading from rapidly growing tropical plants. Using high-quality, humidity-resistant electrical components and ensuring all connections are properly sealed will help combat the effects of tropical moisture. Anti-corrosion treatments and materials designed for tropical climates should be prioritized during installation. Overall, Caldas represents an excellent location for solar energy generation, with strong year-round performance potential that can be maximized through proper installation techniques and regular maintenance practices suited to the tropical environment.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

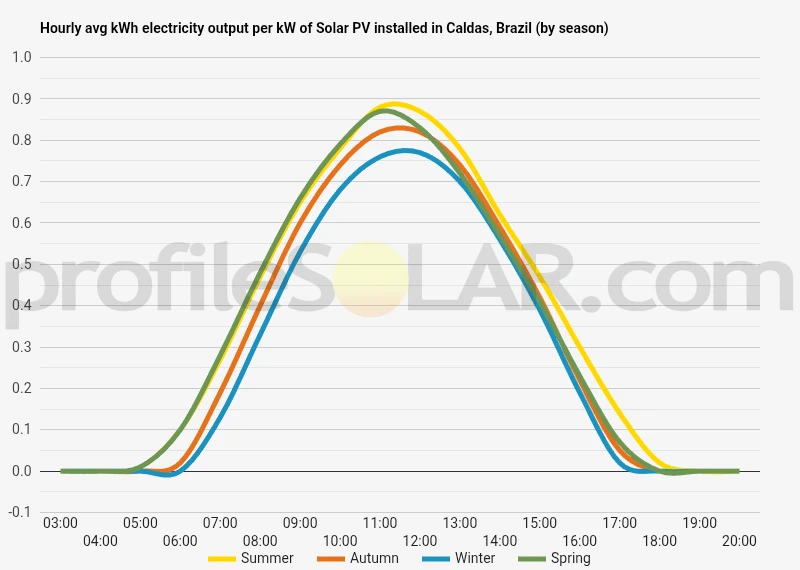

Solar output per kW of installed solar PV by season in Caldas

Seasonal solar PV output for Latitude: -21.8845, Longitude: -46.3613 (Caldas, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Caldas, Brazil

To maximize your solar PV system's energy output in Caldas, Brazil (Lat/Long -21.8845, -46.3613) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Caldas, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Caldas, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	28° North in Autumn	37° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Caldas, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Caldas, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Caldas, Brazil

Topographical Features of Caldas Region

Caldas sits within the mountainous terrain of southern Minas Gerais state, positioned in the Brazilian Highlands at an elevation of approximately 1,200 meters above sea level. The landscape surrounding this municipality is characterized by rolling hills, gentle valleys, and moderate slopes that are typical of the Serra da Mantiqueira mountain range system. The topography creates a naturally undulating terrain with elevations varying between 800 and 1,400 meters across the broader region.

The area features predominantly gentle to moderate slopes, with most hillsides ranging between 5 and 20 degrees of inclination. These gradual gradients make the terrain relatively accessible while still providing natural drainage patterns. The region's geological foundation consists mainly of crystalline rocks from the Precambrian period, creating stable ground conditions that support various land uses.

Numerous small streams and tributaries flow through the valleys, creating a dendritic drainage pattern that has carved out broader valley floors and terraced hillsides over geological time. The vegetation naturally transitions from Atlantic Forest remnants on steeper slopes to pastoral lands and agricultural areas on gentler terrain and valley bottoms.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around Caldas would be the gently sloping hillsides with southern and southeastern exposures. These areas typically feature slopes between 5 and 15 degrees, which provide excellent drainage while maintaining accessibility for construction and maintenance equipment. The moderate elevation of these sites also helps minimize atmospheric interference while avoiding the steepest terrain.

Valley floors and plateau areas represent another prime category for solar development, particularly where the land has been cleared for agriculture or pasture. These relatively flat expanses offer the advantage of simplified installation procedures and reduced grading requirements. The stable geological conditions throughout the region provide solid foundations for mounting systems without significant ground preparation challenges.

The areas immediately surrounding existing agricultural zones would be particularly advantageous, as they often already have established road access and electrical infrastructure nearby. These locations typically feature cleared land with minimal vegetation removal requirements, reducing environmental impact and development costs. The gentle topography in these zones also facilitates the installation of tracking systems if desired, as the level ground provides optimal conditions for mechanical solar tracking equipment.

Hilltops and ridge lines, while offering unobstructed sky access, may present challenges due to increased wind exposure and potential access difficulties. However, some of the broader, more accessible ridgelines could serve as secondary options for solar development, particularly where existing roads or infrastructure already provide access to these elevated areas.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
