Calmon, Santa Catarina, Brazil, located in the Southern Sub-Tropics, shows moderate potential for year-round solar energy generation, though with significant seasonal variation that affects overall efficiency.

Seasonal Solar Performance

The solar energy output at this location varies considerably throughout the year. Summer delivers the strongest performance at 6.41 kWh per day per kW of installed solar capacity, making it the optimal season for solar generation. Spring follows as the second-best period with 5.53 kWh per day per kW, while autumn drops to 4.84 kWh per day per kW. Winter presents the most challenging conditions, producing only 3.72 kWh per day per kW. This seasonal pattern means that solar installations in Calmon will generate approximately 72% more energy in summer compared to winter. The location experiences its peak solar generation during December through February, with consistently strong performance extending into the spring months of September through November.

Optimal Panel Configuration

For fixed panel installations at this location, the ideal tilt angle is 24 degrees facing North to maximize total year-round solar production. This angle has been calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data to determine the optimal compromise for annual energy output.

Environmental and Weather Challenges

Several local factors in Calmon can potentially impede solar production and require consideration during installation:

• Subtropical humidity and moisture: High humidity levels can lead to increased soiling of panels and potential corrosion of mounting systems
• Frequent cloud cover: The subtropical climate often brings periods of overcast skies, particularly during winter months
• Heavy rainfall: Intense precipitation common in subtropical regions can cause temporary shading and increased dirt accumulation
• Hail potential: Southern Brazil occasionally experiences hailstorms that could damage solar panels

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies should be implemented:

• Use tempered glass panels: Install panels with reinforced glass to withstand potential hail damage
• Implement proper drainage: Ensure mounting systems have adequate water runoff to prevent pooling and corrosion
• Regular cleaning schedule: Establish routine panel cleaning to remove dirt, pollen, and debris that accumulate more quickly in humid conditions
• Corrosion-resistant materials: Choose aluminum or stainless steel mounting systems with appropriate protective coatings for the humid environment
• Adequate ventilation: Allow proper airflow beneath panels to reduce moisture buildup and improve efficiency

While Calmon's location presents some environmental challenges typical of subtropical climates, proper installation techniques and maintenance practices can help ensure reliable solar energy production throughout the year, with particularly strong performance during the warmer months.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

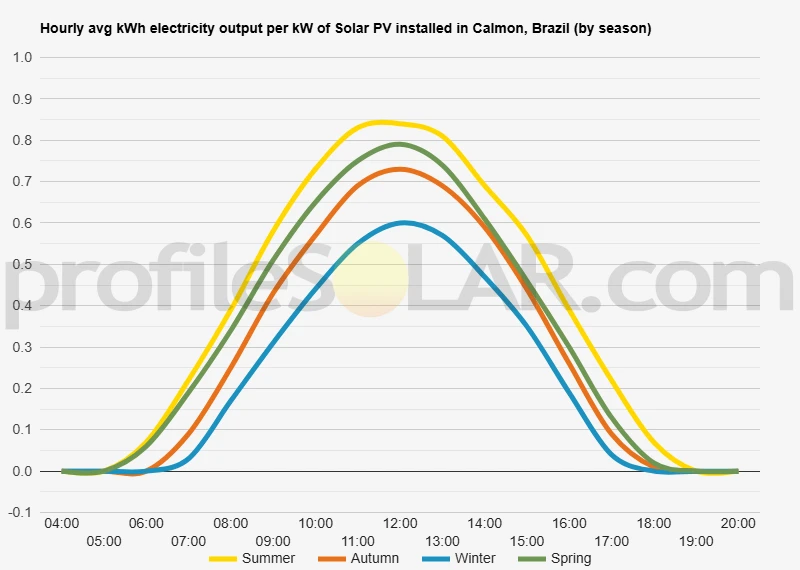

Solar output per kW of installed solar PV by season in Calmon

Seasonal solar PV output for Latitude: -26.6388, Longitude: -51.0203 (Calmon, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Calmon, Brazil

To maximize your solar PV system's energy output in Calmon, Brazil (Lat/Long -26.6388, -51.0203) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Calmon, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Calmon, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° North in Summer	32° North in Autumn	42° North in Winter	19° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Calmon, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Calmon, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Calmon, Brazil

Topographical Characteristics of Calmon, Brazil

Calmon is situated in the mountainous region of Santa Catarina state in southern Brazil, nestled within the Serra Geral mountain range. The terrain around this municipality is characterized by rolling hills, steep valleys, and elevated plateaus that form part of the broader Atlantic Forest biome. The landscape features significant elevation changes, with the town itself positioned at approximately 1,200 meters above sea level on a highland plateau.

The topography is dominated by ancient volcanic formations that have been carved by centuries of erosion, creating a complex network of ridges and valleys. The region experiences a subtropical highland climate due to its elevation, with the mountainous terrain creating natural windbreaks and microclimates throughout the area. Dense Atlantic Forest vegetation covers much of the steeper slopes, while agricultural activities and pastureland occupy the gentler gradients and plateau areas.

Drainage and Water Features

The region's hydrology is influenced by its position on the Brazilian Highlands, with numerous small streams and tributaries flowing through the valleys. These waterways eventually feed into larger river systems that drain toward both the Atlantic Ocean and the Paraná River basin. The mountainous terrain creates natural watershed boundaries, with water flowing in different directions depending on which side of the ridgeline it originates.

Several small reservoirs and farm ponds dot the landscape, created both for agricultural irrigation and livestock watering. The combination of adequate rainfall and the region's elevation creates favorable conditions for water retention in the soil, supporting the lush vegetation that characterizes much of the area.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Calmon would be the elevated plateau areas and gentle south-facing slopes that have been cleared for agricultural use. These areas offer several advantages including relatively flat or moderately sloped terrain that minimizes construction complications and reduces shading between solar panel rows.

The highland plateaus to the east and northeast of the town center present particularly favorable conditions, as they combine suitable topography with existing cleared land that would require minimal vegetation removal. These areas also benefit from their elevation, which can provide cooler operating temperatures for solar panels and reduced atmospheric interference.

Former pastureland and areas currently used for extensive cattle grazing would be ideal candidates for solar development, as the land is already cleared and has established access roads. The rolling hills with gradients of less than 15 degrees would allow for efficient panel installation while maintaining good drainage characteristics essential for long-term infrastructure stability.

Areas near existing electrical transmission infrastructure would be particularly valuable, as the region's mountainous terrain can make new transmission line construction challenging and expensive. The plateaus that are accessible by existing rural roads would significantly reduce development costs and environmental impact compared to steeper, more remote locations that would require extensive new infrastructure development.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
