Camanducaia, Minas Gerais, Brazil presents a moderately favorable location for year-round solar PV energy generation, though it experiences notable seasonal variation in output. Located in the southern Brazilian highlands, this area shows distinct patterns that differ from typical tropical solar conditions.

Seasonal Solar Performance

The solar energy output at Camanducaia varies significantly throughout the year, with summer producing the highest yields at 6.62 kWh per day per kW of installed capacity. Spring follows as the second-best season with 6.08 kWh/day, while autumn drops to 5.49 kWh/day. Winter presents the lowest production period at 4.83 kWh/day per kW installed. For optimal year-round performance, solar panels should be installed at a fixed tilt angle of 21 degrees facing north. This angle maximizes total annual energy production by accounting for the sun's varying position throughout the seasons and the location's specific latitude.

Environmental and Weather Challenges

Several local factors can significantly impact solar production at this location:

• High altitude humidity and cloud cover: Camanducaia sits in a mountainous region where morning fog and afternoon cloud buildup are common, particularly during summer months when convective storms develop
• Seasonal rainfall patterns: The wet season typically brings extended periods of cloud cover that can substantially reduce solar irradiance
• Temperature variations: The highland location experiences cooler temperatures and greater daily temperature swings, which while beneficial for panel efficiency, can create condensation issues
• Dust and pollen accumulation: The surrounding vegetation and occasional dry periods can lead to panel soiling

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be considered:

• Enhanced drainage systems: Install panels with adequate spacing and drainage to prevent water accumulation and reduce cleaning frequency during heavy rain periods
• Anti-soiling coatings: Apply hydrophobic coatings to panel surfaces to help rainwater wash away dust and organic debris more effectively
• Micro-inverters or power optimizers: Use these technologies to minimize the impact of partial shading from clouds or nearby vegetation on overall system performance
• Regular maintenance scheduling: Plan cleaning and inspection cycles around seasonal patterns, with more frequent attention during the transition between wet and dry seasons

Despite these challenges, Camanducaia's consistent year-round solar potential makes it a viable location for solar PV installations, particularly when proper planning addresses the local environmental conditions.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

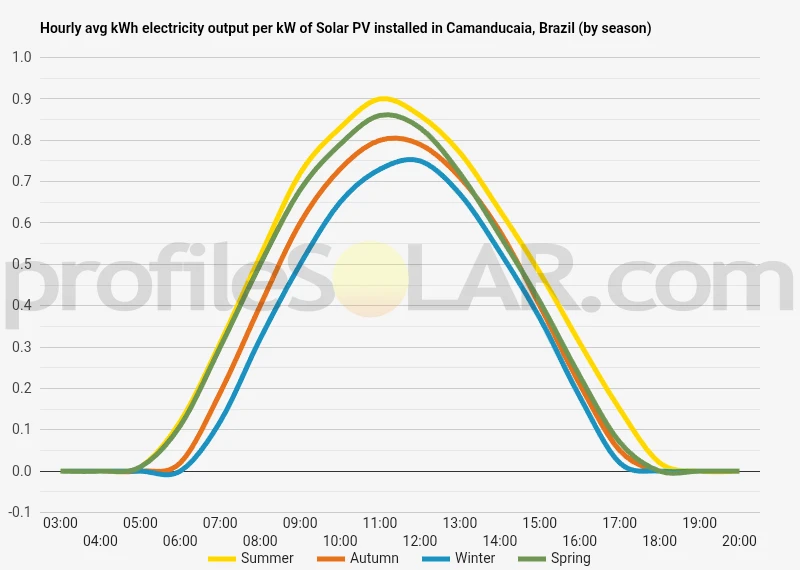

Solar output per kW of installed solar PV by season in Camanducaia

Seasonal solar PV output for Latitude: -22.7917, Longitude: -46.0772 (Camanducaia, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Camanducaia, Brazil

To maximize your solar PV system's energy output in Camanducaia, Brazil (Lat/Long -22.7917, -46.0772) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Camanducaia, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Camanducaia, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Camanducaia, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Camanducaia, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Camanducaia, Brazil

Topographical Features of Camanducaia Region

Camanducaia sits nestled in the mountainous terrain of southern Minas Gerais state, positioned within the Serra da Mantiqueira mountain range. This region is characterized by rolling hills, steep valleys, and elevated plateaus that create a dramatically varied landscape. The municipality itself rests at a considerable elevation, surrounded by peaks that rise and fall across the horizon, forming part of the natural barrier between the states of Minas Gerais and São Paulo.

The topography here is predominantly hilly to mountainous, with numerous ridgelines running in various directions across the landscape. Deep valleys carved by streams and small rivers intersect these elevated areas, creating a complex terrain pattern. The region experiences significant elevation changes over relatively short distances, with some areas featuring steep gradients that can challenge development projects.

Dense Atlantic Forest remnants cover many of the steeper slopes and valley bottoms, while cleared areas on gentler slopes have been converted to pastureland, coffee cultivation, and other agricultural uses. The natural vegetation patterns often follow the topographical contours, with forests persisting on the most challenging terrain and human activities concentrated on more accessible areas.

Climate and Weather Patterns

The elevated position of Camanducaia creates a subtropical highland climate that differs markedly from the lower-lying regions of Brazil. The mountainous terrain influences local weather patterns, with the topography creating microclimates throughout the area. Morning fog and mist are common phenomena, particularly in the valleys, due to the interaction between elevation changes and atmospheric conditions.

The region experiences distinct wet and dry seasons, with the mountainous topography intensifying precipitation patterns during the rainy months. The elevated terrain can create orographic effects, where moisture-laden air masses are forced upward, leading to increased cloud formation and precipitation on windward slopes.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Camanducaia would be the elevated plateaus and gentle ridgetops that offer relatively flat or south-facing slopes. These areas provide the necessary terrain stability while avoiding the steep gradients that would complicate construction and maintenance activities.

The cleared pasturelands on elevated terrain represent particularly attractive opportunities for solar development. These areas have already been modified from their natural state, reducing environmental concerns, while their elevation provides excellent exposure to solar radiation with minimal shading from surrounding topographical features. The rolling hills that have been converted to grazing land often feature the gentle slopes ideal for solar panel installation.

Areas to avoid would include the steep valley sides and heavily forested slopes that characterize much of the Serra da Mantiqueira. These locations present significant challenges for construction access, equipment installation, and ongoing maintenance. Additionally, the dense forest cover in these areas would require extensive clearing, creating environmental concerns and regulatory complications.

The northern and eastern approaches to Camanducaia, where the terrain becomes somewhat less mountainous as it transitions toward the Paraíba Valley, offer additional possibilities for solar development. These transitional zones often feature more moderate topography while maintaining good elevation and exposure characteristics.

Infrastructure considerations also favor the areas closer to existing transportation networks and electrical grid connections. The elevated plateaus and ridgelines that are accessible by existing rural roads would be significantly more economical to develop than remote valley locations that would require extensive new access routes.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
