Cambuquira, Minas Gerais, Brazil represents a very good location for year-round solar energy generation, with consistent electricity production throughout all seasons. The location benefits from its tropical positioning, where sunlight remains relatively stable across the year rather than experiencing the dramatic seasonal variations seen in higher latitude regions.

Seasonal Solar Performance

The solar energy output at Cambuquira shows strong performance across all seasons, with summer delivering the highest production at 6.53kWh per day per kW of installed capacity. Spring follows as the second-best season at 5.97kWh/day, while autumn produces 5.70kWh/day. Even during winter, the weakest season, the location still generates a respectable 5.08kWh/day per kW. This seasonal pattern makes Cambuquira particularly attractive for solar installations, as the difference between the best and worst performing seasons is only about 29%. This consistency means solar systems can provide reliable energy output year-round without the dramatic winter drops experienced in temperate climates. For fixed panel installations at this location, the ideal tilt angle to maximize total year-round production is 21 degrees facing North. This angle has been calculated to optimize solar capture across all seasons by accounting for the sun's varying position throughout the year and weighting for actual solar irradiance data.

Environmental and Weather Considerations

Several local factors could potentially impact solar production efficiency at Cambuquira and require consideration during installation planning. Humidity and Condensation: The tropical climate brings high humidity levels that can cause condensation on solar panels, particularly during early morning hours. This moisture can reduce light transmission and energy output until it evaporates. Installing panels with adequate ventilation underneath and using hydrophobic coatings can help minimize condensation effects and promote faster drying. Seasonal Rainfall Patterns: Like many tropical locations, Cambuquira likely experiences distinct wet and dry seasons rather than traditional temperature-based seasons. Heavy rainfall during wet periods can reduce solar irradiance through cloud cover, though the provided seasonal data already accounts for these weather patterns. Proper drainage around solar installations prevents water accumulation that could damage electrical components. Dust and Particulate Accumulation: During dry seasons, dust and airborne particles can accumulate on panel surfaces, reducing their efficiency. The region's agricultural activities may contribute additional particulates. Regular cleaning schedules become more critical, and installing panels at steeper angles can help promote self-cleaning during rain events. Temperature Effects: While tropical locations receive excellent solar irradiance, high ambient temperatures can actually reduce solar panel efficiency. Most solar panels lose efficiency as temperatures rise above their optimal operating range. Ensuring adequate airflow beneath panels through proper mounting systems helps maintain cooler operating temperatures and better performance.

Installation Recommendations

To maximize energy production at this location, several preventative measures should be incorporated into solar installations:

• Use mounting systems that provide at least 6 inches of clearance beneath panels for cooling airflow
• Install panels with anti-reflective and hydrophobic coatings to minimize moisture and dust adhesion
• Design drainage systems around ground-mounted installations to prevent water damage during heavy rains
• Plan for regular cleaning maintenance, particularly during dry seasons when dust accumulation peaks
• Consider micro-inverters or power optimizers to minimize system-wide impacts if individual panels become shaded or dirty

Despite these considerations, Cambuquira's consistent solar resource makes it an excellent location for solar energy projects. The relatively minor seasonal variation in output, combined with year-round production levels that would be considered good even in more favorable climates, makes this location highly suitable for both residential and commercial solar installations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

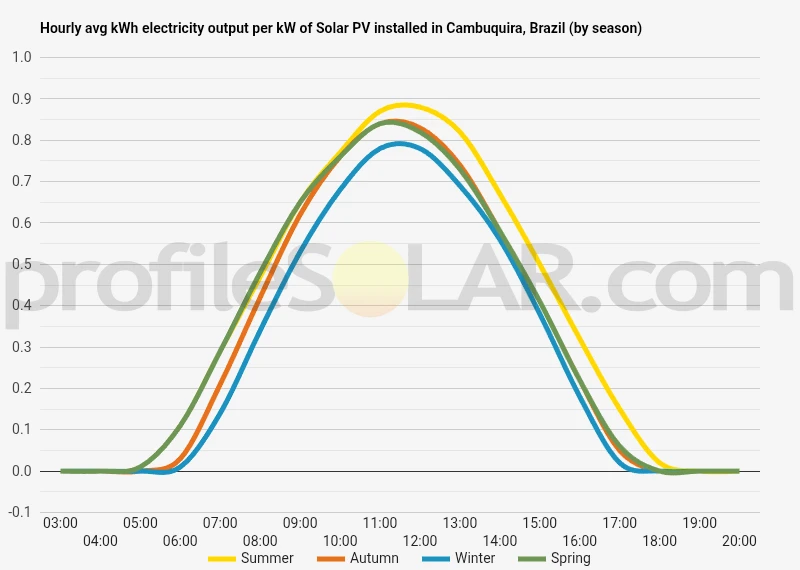

Solar output per kW of installed solar PV by season in Cambuquira

Seasonal solar PV output for Latitude: -21.8515, Longitude: -45.2745 (Cambuquira, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Cambuquira, Brazil

To maximize your solar PV system's energy output in Cambuquira, Brazil (Lat/Long -21.8515, -45.2745) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cambuquira, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cambuquira, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	27° North in Autumn	37° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cambuquira, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cambuquira, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cambuquira, Brazil

Topographical Features of Cambuquira

Cambuquira sits nestled in the mountainous terrain of southern Minas Gerais state, positioned within the Mantiqueira Mountain range. The town itself occupies a valley setting at approximately 946 meters above sea level, surrounded by rolling hills and steep-sided ridges that characterize this part of Brazil's highland region. The landscape features a complex arrangement of valleys, ridgelines, and plateaus that create dramatic elevation changes across relatively short distances. The immediate vicinity displays typical Atlantic Forest highland topography, with deeply incised valleys carved by small streams and tributaries that eventually feed into larger river systems. These waterways have created a dendritic drainage pattern that fragments the landscape into numerous hills and interfluves. The terrain becomes increasingly rugged as one moves away from the town center, with some peaks in the broader region reaching well above 1,500 meters elevation.

Terrain Challenges for Solar Development

The mountainous character of the Cambuquira area presents several obstacles for large-scale solar photovoltaic installations. The steep slopes that dominate much of the landscape create significant engineering challenges, requiring extensive grading and terracing to establish suitable foundations for solar arrays. These modifications substantially increase project costs and environmental impact compared to installations on naturally flat terrain. Valley bottoms, while offering more level ground, tend to be narrow and constrained by surrounding hillsides. This limitation restricts the potential size of solar installations and may create shading issues during certain times of day when surrounding ridges block direct sunlight from reaching the valley floors. Additionally, many of these lower-lying areas contain streams, wetlands, or agricultural lands that would complicate or prevent solar development.

Optimal Areas for Large-Scale Solar Installation

The most promising locations for substantial solar photovoltaic projects lie on the broader ridgetops and plateau areas that exist throughout the region. These elevated positions typically offer more consistent terrain suitable for large arrays while avoiding the space constraints of narrow valleys. Ridge-top locations also benefit from reduced atmospheric interference and fewer obstructions from surrounding topography. Areas to the north and northeast of Cambuquira show particular promise, where the terrain transitions toward somewhat gentler topography associated with the broader Minas Gerais highlands. Here, rolling hills give way to more extensive flat or gently sloping areas that could accommodate sizeable solar installations without requiring excessive site preparation. The southeastern portions of the region, while still mountainous, contain several elevated plateaus and mesa-like formations that could serve as suitable solar sites. These areas combine the advantages of elevation with sufficient flat space for meaningful solar development, though access infrastructure would need careful planning given the challenging terrain. Agricultural areas on hillside benches and terraces, particularly those used for pasture rather than intensive cultivation, represent another category of potentially suitable land. These locations often feature moderate slopes that could accommodate solar installations with appropriate mounting systems designed for sloped terrain, while existing agricultural access roads could facilitate construction and maintenance activities.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
