Solar Energy Potential in Campina Grande do Sul, Brazil

Campina Grande do Sul, Brazil, located in the Southern Sub Tropics at latitude -25.1531 and longitude -48.8122, offers generally favorable conditions for solar PV energy generation throughout the year, though with notable seasonal variations. The location experiences its peak solar production during the summer months, with an impressive 5.58 kWh per day for each kilowatt of installed solar capacity. This makes summer the optimal season for solar energy generation in this region. Spring and autumn also provide good solar production potential, yielding 4.36 kWh/day and 4.14 kWh/day respectively per kilowatt installed. These transitional seasons offer reliable solar energy generation that, while not as robust as summer, still provides substantial output. Winter shows the lowest production at 3.33 kWh/day per kilowatt, representing a 40% decrease from summer values. Despite this seasonal dip, the location still maintains reasonable year-round production compared to many other regions at similar latitudes.

Optimal Panel Installation

For fixed solar panel installations in Campina Grande do Sul, the ideal tilt angle to maximize year-round energy production is 23 degrees facing North. This specific angle has been calculated to optimize the capture of solar radiation throughout the year, accounting for the location's position in the Southern Hemisphere.

Environmental Considerations

Several environmental factors could potentially impact solar production at this location:

• The region's subtropical climate may bring periods of heavy rainfall, particularly during summer months, which could temporarily reduce solar output.
• Occasional cloud cover associated with the Atlantic coastal influence may intermittently affect production.
• Dust and pollen accumulation on panels can gradually reduce efficiency, especially during drier periods.

Preventative Measures

To maximize solar energy production in Campina Grande do Sul, consider implementing these preventative measures:

• Install an automated cleaning system or establish a regular manual cleaning schedule to prevent dust and pollen buildup.
• Consider micro-inverters or power optimizers to minimize the impact of partial shading on overall system performance.
• Ensure proper drainage around ground-mounted systems to prevent water accumulation during heavy rainfall periods.
• Use high-quality panels with good performance in diffuse light conditions to maintain production during cloudier days.

Overall, Campina Grande do Sul provides a good location for solar PV installation with consistent year-round production, despite the expected seasonal variations. With proper system design and maintenance, solar energy can be a reliable and effective power source in this Brazilian location.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

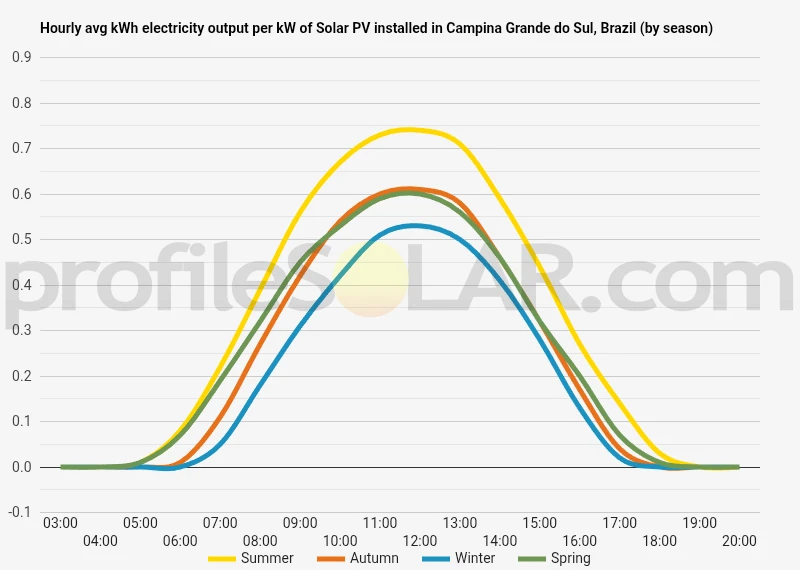

Solar output per kW of installed solar PV by season in Campina Grande Do Sul

Seasonal solar PV output for Latitude: -25.1531, Longitude: -48.8122 (Campina Grande Do Sul, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 23° North in Campina Grande Do Sul, Brazil

To maximize your solar PV system's energy output in Campina Grande Do Sul, Brazil (Lat/Long -25.1531, -48.8122) throughout the year, you should tilt your panels at an angle of 23° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Campina Grande Do Sul, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Campina Grande Do Sul, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 23° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° North in Summer	31° North in Autumn	41° North in Winter	18° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Campina Grande Do Sul, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Campina Grande Do Sul, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Campina Grande Do Sul, Brazil

The landscape surrounding Campina Grande do Sul in Brazil presents a diverse and complex topography that significantly shapes the region's character. Located in the eastern portion of Paraná state, this area sits near the dramatic Serra do Mar mountain range, creating a terrain that transitions from coastal lowlands to elevated plateaus.

Topographical Features

Campina Grande do Sul occupies a transitional zone between the coastal plains (known locally as "litoral") and the first plateau of Paraná. The eastern section of the municipality features more rugged terrain with significant elevation changes, as it incorporates portions of the Serra do Mar mountain chain. These mountains form an impressive natural barrier that separates the coastal region from the interior highlands. Moving westward from the mountains, the landscape gradually transforms into rolling hills and eventually into the more level terrain of the Curitiba plateau. This first plateau of Paraná, where much of the municipality is situated, has an average elevation of approximately 900-950 meters above sea level. The region is characterized by numerous valleys carved by river systems, creating a varied landscape of ridges and depressions. These waterways, part of the larger Ribeira River and Iguaçu River basins, have shaped the terrain through millennia of erosion.

Vegetation and Land Cover

The natural vegetation reflects this topographical diversity. The higher elevations and eastern slopes retain fragments of the Atlantic Forest (Mata Atlântica), one of the most biodiverse but threatened forest ecosystems in the world. As elevation decreases, the vegetation transitions to mixed forests and eventually to more open formations typical of the southern Brazilian highlands. Much of the original vegetation has been modified by human activity, with areas converted to agriculture, pasture, and urban development. However, significant forest remnants persist, particularly in steeper areas less suitable for development.

Solar PV Potential Areas

When considering large-scale solar photovoltaic development in the region surrounding Campina Grande do Sul, several factors related to topography become important considerations: The western portions of the municipality, where the terrain flattens onto the Curitiba plateau, offer the most promising areas for large-scale solar installations. These locations combine relatively level ground with adequate elevation, reducing concerns about morning fog or excessive cloud cover that can affect energy production. Areas along the gentler slopes facing north (which in the Southern Hemisphere receive more direct sunlight) would be particularly advantageous for solar panel placement. These north-facing inclines naturally optimize the angle of solar radiation throughout the year. The regions northwest of Campina Grande do Sul, extending toward neighboring municipalities like Colombo and Quatro Barras, feature more extensive plateau areas that could accommodate larger solar installations. These areas typically have better road access and fewer extreme topographical barriers. It's worth noting that while the mountainous eastern sections offer dramatic vistas, they present significant challenges for large-scale solar development due to their steep slopes, difficult access, and environmental protections that often apply to Serra do Mar forests. The central portions of the municipality, where agricultural activities have already created open spaces, might provide opportunities for solar development that minimizes additional land clearing while utilizing areas already modified by human activity. Areas to potentially avoid include the deep river valleys, where morning mist can linger longer, and the easternmost mountainous zones, where installation would be logistically challenging and potentially environmentally damaging to remaining Atlantic Forest fragments.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
