Campo do Meio, Brazil presents a very favorable location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates -21.1201, -45.794, this region benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than dramatic changes in daylight hours.

Solar Energy Production Potential

The solar energy output data for Campo do Meio demonstrates strong year-round performance. Summer delivers the highest production at 6.53 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best performing season with 5.97 kWh/day per kW, while autumn produces 5.70 kWh/day per kW. Even during winter, the lowest-producing season, the location still generates a respectable 5.08 kWh/day per kW of installed capacity. This seasonal pattern shows that Campo do Meio maintains relatively strong solar production even during its weakest months, with winter output still reaching about 78% of summer peak production. The location experiences its optimal solar generation during the warmer months from spring through summer.

Optimal Panel Installation

For fixed panel installations at Campo do Meio, the ideal tilt angle to maximize total year-round solar production is 20 degrees facing North. This angle is calculated by analyzing daily solar elevation angles throughout the year, determining optimal panel positioning for each day, and weighting these angles based on solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several local factors could potentially impact solar production efficiency at Campo do Meio, though the location remains highly suitable for solar installations overall. The most significant challenge is the tropical wet season, which brings increased cloud cover and frequent rainfall. During these periods, heavy cloud formations can temporarily reduce solar irradiance, while persistent rain can leave water spots and debris on panel surfaces that diminish light absorption. High humidity levels, common in tropical climates, can create moisture-related issues including potential corrosion of electrical components and the formation of condensation on panels during temperature fluctuations between day and night. Dust accumulation presents another concern, particularly during drier periods when wind can deposit particles on panel surfaces. In agricultural regions like Campo do Meio, this may include pollen, agricultural dust, and other organic materials that can create a film over solar panels.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production despite these environmental challenges:

• Install panels with adequate tilt and spacing to promote natural cleaning through rainfall runoff
• Use high-quality mounting systems with proper drainage to prevent water accumulation
• Select solar panels and electrical components rated for high humidity and tropical conditions
• Implement regular cleaning schedules, particularly during dry seasons when dust accumulation is highest
• Ensure proper ventilation around panels to reduce heat buildup and moisture retention

Regular maintenance becomes particularly important in this tropical environment. Establishing a cleaning routine that increases in frequency during dusty periods and includes inspection of electrical connections for moisture-related issues will help maintain optimal energy production throughout the year. Despite these considerations, Campo do Meio's consistent solar output across all seasons makes it an excellent location for solar PV installations, with proper design and maintenance ensuring reliable renewable energy generation year-round.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

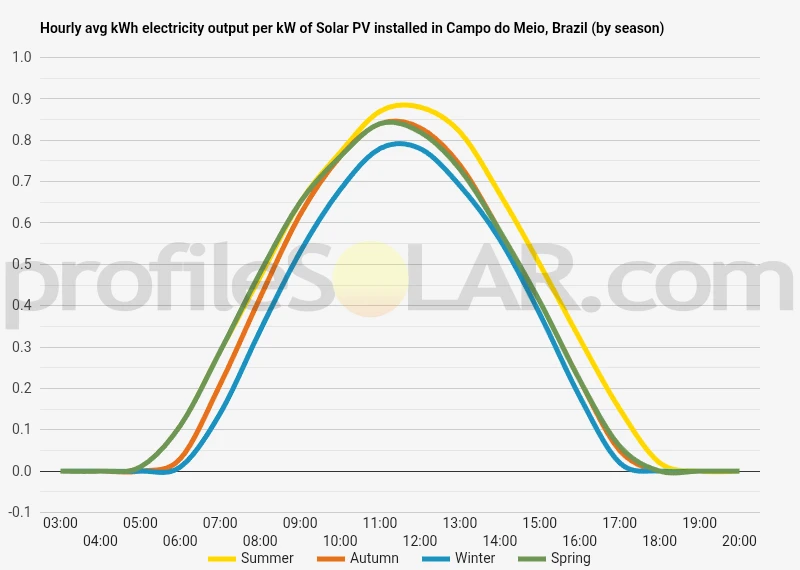

Solar output per kW of installed solar PV by season in Campo Do Meio

Seasonal solar PV output for Latitude: -21.1201, Longitude: -45.794 (Campo Do Meio, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Campo Do Meio, Brazil

To maximize your solar PV system's energy output in Campo Do Meio, Brazil (Lat/Long -21.1201, -45.794) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Campo Do Meio, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Campo Do Meio, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	27° North in Autumn	37° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Campo Do Meio, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Campo Do Meio, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Campo Do Meio, Brazil

Topographical Features of Campo do Meio

Campo do Meio sits in the southern region of Minas Gerais state, positioned within the Serra da Mantiqueira mountain range system. The landscape around this municipality is characterized by rolling hills and elevated terrain, with the town itself located at approximately 900 meters above sea level. The topography features a mix of gentle slopes and steeper inclines typical of the Brazilian highlands, creating a varied terrain that transitions between pastoral valleys and more pronounced ridgelines. The surrounding region displays the classic characteristics of the Mantiqueira range, with undulating terrain that creates natural drainage patterns flowing toward larger river systems. These elevated areas experience the typical climate patterns of Brazil's southeastern highlands, with the topography playing a significant role in local weather patterns and agricultural suitability.

Terrain Suitability for Large-Scale Solar Development

The most promising areas for large-scale solar photovoltaic installations would be found on the gentler slopes and plateau areas that dot the landscape around Campo do Meio. The elevated ridges and flatter hilltops present ideal conditions for solar development, as they typically offer unobstructed exposure to sunlight throughout the day while maintaining relatively stable ground conditions for mounting systems. Areas to the east and southeast of the municipality appear particularly well-suited for solar development, where the terrain opens up into broader valleys with moderate slopes. These locations would allow for efficient panel arrangement while minimizing the grading and earthwork required for installation. The higher elevation of these sites also provides advantages in terms of cooler operating temperatures for solar equipment and reduced atmospheric interference.

Infrastructure and Access Considerations

The topography around Campo do Meio generally supports good accessibility for construction and maintenance activities. The region's road network follows the natural contours of the landscape, connecting the higher elevation areas where solar installations would be most effective. The relatively stable geology of the highland region provides solid foundations for mounting systems, while the natural drainage patterns help manage water runoff from solar installations. Areas closer to existing transmission infrastructure would be particularly attractive for development, as the mountainous terrain can make power line construction more challenging and expensive. The elevated nature of potential solar sites actually works in favor of transmission efficiency, as power can be distributed downhill to population centers in the valleys below.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
