Campo do Tenente, Brazil, located in the Southern Sub Tropics at coordinates -25.9567, -49.662, presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The location demonstrates strong seasonal fluctuations in solar energy production. Summer delivers the highest output at 6.17 kWh per day per kW of installed capacity, making it the ideal time for solar generation. Spring follows as the second-best season with 5.05 kWh per day per kW, while autumn drops to 4.48 kWh per day per kW. Winter presents the most challenging period, producing only 3.64 kWh per day per kW of installed solar capacity. This seasonal pattern is typical for locations in the Southern Hemisphere, where summer months (December through February) receive the most direct sunlight, while winter months (June through August) experience reduced solar irradiance due to the sun's lower position in the sky.

Optimal Panel Configuration

For maximum year-round energy production at Campo do Tenente, solar panels should be installed at a fixed tilt angle of 23 degrees facing north. This optimal angle is calculated by analyzing daily solar elevation angles at this specific latitude, determining daily optimal panel positioning, and weighting these angles according to solar irradiance data throughout the year to maximize total annual output.

Local Environmental Challenges

Several environmental and weather factors at Campo do Tenente could potentially impact solar energy production:

• High humidity and frequent rainfall typical of subtropical regions can reduce solar panel efficiency and create more frequent cleaning requirements
• Potential for hail storms during severe weather events, which could damage solar panels
• Dense cloud cover during rainy seasons may further reduce the already lower winter production levels
• High moisture levels can accelerate corrosion of mounting hardware and electrical connections

Preventative Measures for Installation

To maximize solar energy production despite these challenges, several installation strategies should be implemented:

• Use tempered glass panels with higher impact resistance to withstand potential hail damage
• Install panels with adequate spacing and ventilation to prevent moisture buildup and allow for natural cleaning from rainfall
• Utilize corrosion-resistant mounting systems made from marine-grade aluminum or stainless steel components
• Implement proper drainage systems around ground-mounted installations to prevent water pooling
• Consider anti-soiling coatings on panels to reduce cleaning frequency requirements
• Install monitoring systems to quickly identify performance issues during periods of reduced visibility

Despite these environmental considerations, Campo do Tenente remains a viable location for solar energy generation, particularly when proper installation techniques and equipment choices account for local subtropical conditions. The strong summer and spring production levels can help offset the reduced winter output, making year-round solar generation economically feasible with appropriate system sizing.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

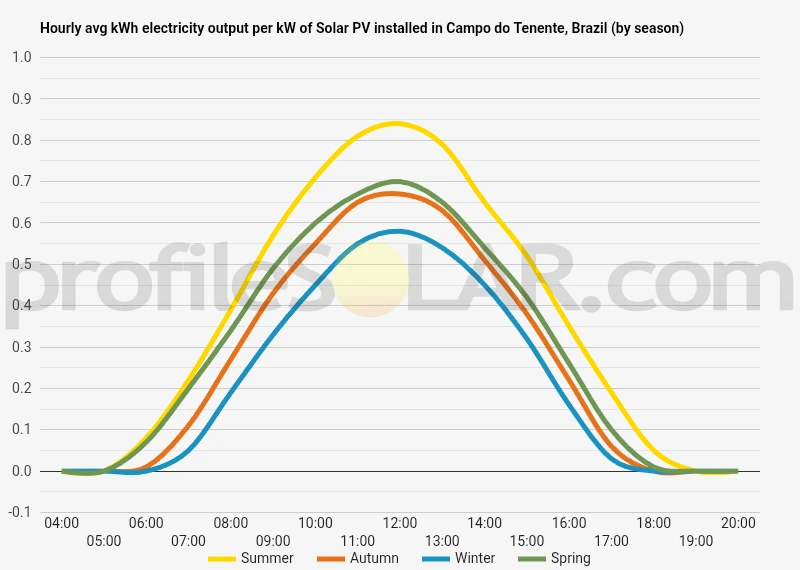

Solar output per kW of installed solar PV by season in Campo Do Tenente

Seasonal solar PV output for Latitude: -25.9567, Longitude: -49.662 (Campo Do Tenente, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 23° North in Campo Do Tenente, Brazil

To maximize your solar PV system's energy output in Campo Do Tenente, Brazil (Lat/Long -25.9567, -49.662) throughout the year, you should tilt your panels at an angle of 23° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Campo Do Tenente, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Campo Do Tenente, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 23° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° North in Summer	32° North in Autumn	41° North in Winter	19° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Campo Do Tenente, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Campo Do Tenente, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Campo Do Tenente, Brazil

Topographical Features of Campo do Tenente

Campo do Tenente sits within the mountainous terrain of Paraná state in southern Brazil, positioned in the Serra do Mar mountain range at an elevation of approximately 900 meters above sea level. The landscape around this municipality is characterized by rolling hills, steep valleys, and undulating terrain typical of the Brazilian highlands. The region forms part of the Atlantic Forest biome, where dense vegetation covers much of the natural landscape. The topography features a complex network of ridges and valleys carved by numerous small streams and tributaries that flow toward larger river systems. These waterways have created a dissected landscape with significant elevation changes over relatively short distances. The terrain becomes progressively more rugged toward the east, where the Serra do Mar rises more dramatically toward the Atlantic coast.

Climate and Environmental Conditions

The elevated position of Campo do Tenente creates a subtropical highland climate with distinct seasonal variations. The region experiences cooler temperatures than lower-lying areas due to its altitude, with frequent fog and cloud cover, particularly during winter months. The combination of elevation and proximity to the Atlantic Ocean results in substantial precipitation throughout the year, supporting the lush vegetation that characterizes the area. Morning and evening mist are common phenomena in the valleys and lower-lying areas, while the higher ridges often experience clearer conditions. The dense forest cover and high humidity levels create a microclimate that differs significantly from the more open agricultural areas found in other parts of Paraná state.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Campo do Tenente would be the elevated ridgetops and plateaus that rise above the frequent low-lying fog and mist. These higher elevation sites offer better exposure to direct sunlight and experience fewer weather-related obstructions compared to valley locations. The southeastern and southwestern facing slopes present the most favorable orientations for solar panel placement, taking advantage of the sun's path across the sky. Areas where the natural forest has already been cleared for agriculture or pasture would be preferable development sites, as they would minimize environmental impact while providing the open space necessary for solar arrays. Flatter sections of elevated terrain, though limited in this mountainous region, would offer the most practical locations for installation and maintenance access. These areas typically occur on ridge crests and small plateaus scattered throughout the landscape. The relatively stable geological conditions of the crystalline rock formations underlying much of the region provide solid foundations for solar infrastructure. Transportation access represents a crucial consideration, with sites near existing roads and power transmission lines offering significant advantages. The main highway corridors and secondary roads that connect Campo do Tenente to larger urban centers provide the infrastructure necessary for construction and ongoing maintenance operations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
