Campos Sales, Ceará, Brazil represents an excellent location for year-round solar energy generation. This tropical location enjoys consistent sunlight throughout the year, with seasonal variations characterized more by wet and dry periods than the traditional four seasons found in temperate regions.

Solar Energy Production Performance

The solar energy output at Campos Sales shows impressive and consistent performance across all seasons. The location generates 5.58 kWh per day per kW of installed solar capacity during summer, increasing to 5.96 kWh/day in autumn, 6.35 kWh/day in winter, and reaching its peak of 7.01 kWh/day during spring. Spring emerges as the optimal season for solar generation, producing 25% more energy than the lowest-performing summer period. This seasonal variation is relatively modest compared to many other global locations, making Campos Sales particularly attractive for consistent solar energy production. For maximum year-round energy production, solar panels should be installed at a fixed tilt angle of 7 degrees facing north. This optimal angle is calculated by analyzing daily solar elevation angles weighted by solar irradiance data throughout the year, accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at this tropical location:

• High humidity levels typical of tropical climates can reduce solar panel efficiency
• Dust accumulation during dry seasons may coat panel surfaces
• Heavy rainfall during wet seasons, while helpful for cleaning panels, can reduce sunlight penetration
• Potential for tropical storms or severe weather events

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered. Regular cleaning schedules become crucial, particularly during dry periods when dust accumulation is highest. Installing panels with adequate spacing allows for proper air circulation, helping to manage the efficiency-reducing effects of high humidity and heat. Choosing high-quality panels with strong weather resistance ratings ensures durability against tropical weather conditions. Proper drainage systems around installations prevent water pooling during heavy rains. Additionally, implementing monitoring systems allows for quick identification of performance issues related to weather or environmental factors. The consistently high solar output throughout the year, combined with proper installation techniques and maintenance practices, makes Campos Sales an ideal location for solar energy generation despite the typical challenges associated with tropical climates.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

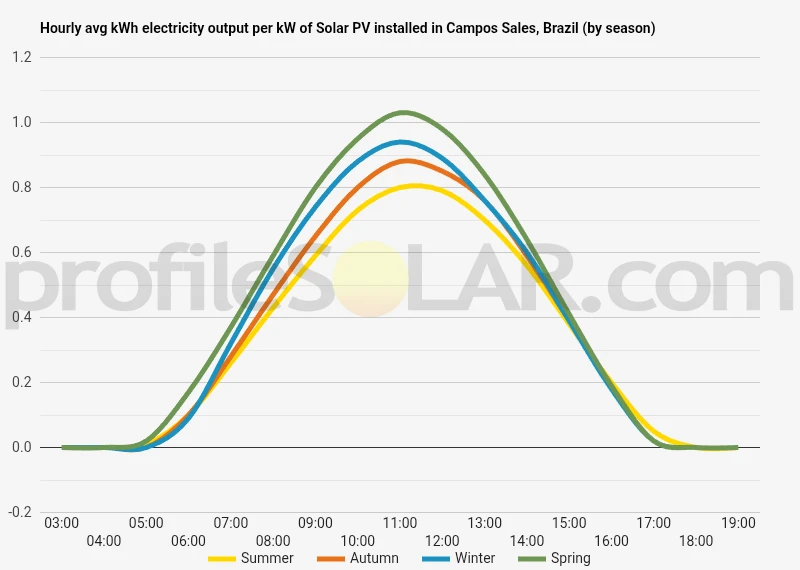

Solar output per kW of installed solar PV by season in Campos Sales

Seasonal solar PV output for Latitude: -6.9253, Longitude: -40.2219 (Campos Sales, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 7° North in Campos Sales, Brazil

To maximize your solar PV system's energy output in Campos Sales, Brazil (Lat/Long -6.9253, -40.2219) throughout the year, you should tilt your panels at an angle of 7° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Campos Sales, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Campos Sales, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 7° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° South in Summer	13° North in Autumn	22° North in Winter	1° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Campos Sales, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Campos Sales, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Campos Sales, Brazil

Topographical Features of Campos Sales

Campos Sales sits in the interior of Ceará state within Brazil's semi-arid northeastern region, positioned on elevated terrain that forms part of the Brazilian Highlands. The municipality occupies a transitional zone between the coastal lowlands to the north and the higher elevations of the Borborema Plateau system. The local topography consists primarily of gently rolling hills and undulating plains, with elevations typically ranging from 400 to 600 meters above sea level. The landscape around Campos Sales is characterized by broad valleys separated by low ridges and scattered inselbergs - isolated rocky outcrops that rise abruptly from the surrounding terrain. These geological formations create a mosaic of relatively flat areas interspersed with steeper slopes and rocky exposures. The region's bedrock consists mainly of crystalline formations typical of the Brazilian Shield, including granite and gneiss formations that have been weathered over millions of years. Drainage patterns in the area follow the natural topographical contours, with seasonal streams and dry creek beds cutting shallow channels through the landscape. During the dry season, many of these waterways become intermittent or disappear entirely, leaving behind sandy beds that snake across the terrain. The overall relief is moderate, without extreme elevation changes that would significantly complicate large-scale development projects.

Climate and Vegetation Influences on Terrain

The semi-arid climate has profoundly shaped the physical characteristics of the land around Campos Sales. The vegetation consists primarily of caatinga scrubland, a drought-adapted ecosystem featuring thorny shrubs, cacti, and small trees that remain sparse enough to leave substantial open ground between plants. This natural vegetation pattern creates numerous clearings and areas with minimal tree cover that could accommodate solar installations without extensive clearing operations. Soil conditions reflect the climate and underlying geology, with shallow, rocky soils predominating across much of the region. While these conditions present challenges for agriculture, they can actually benefit solar development by providing stable foundations and reducing concerns about soil subsidence or excessive vegetation growth that might interfere with panel operations.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around Campos Sales would be the broad, gently sloping plateaus and valley floors that offer both adequate space and favorable topographical conditions. Areas with southern or southeastern exposure on gentle slopes would be particularly advantageous, as they could optimize solar panel orientation while maintaining reasonable construction and maintenance access. The elevated plains extending to the southwest and southeast of the town center present especially promising opportunities. These areas combine relatively flat terrain with good drainage characteristics and minimal existing development. The natural spacing of caatinga vegetation means that land preparation requirements would be less intensive compared to more densely forested regions. Valley floors throughout the region also offer potential, particularly those oriented in east-west directions that could accommodate north-facing panel arrays. However, developers would need to carefully evaluate seasonal water flow patterns to avoid areas prone to flash flooding during the brief but intense rainy periods. Areas to avoid would include the steeper slopes of inselbergs and ridge systems, where irregular terrain would complicate installation and potentially create shading issues. Similarly, the narrow valleys and drainage channels that experience seasonal water flow would be less suitable due to flooding risks and access difficulties. The combination of moderate elevation, gentle topography, sparse vegetation, and stable geological conditions makes the Campos Sales region generally well-suited for large-scale solar development, with multiple sites offering the flat to gently rolling terrain that solar installations require for optimal performance and cost-effective construction.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
