Cana Verde, Minas Gerais, Brazil presents a very favorable location for year-round solar photovoltaic energy generation. The consistent tropical climate and positioning provide reliable solar energy potential throughout all seasons.

Seasonal Solar Performance

The solar energy output at this location shows strong performance across all seasons. Summer delivers the highest production at 6.53 kWh per day per kW of installed capacity, making it the peak season for solar generation. Spring follows as the second-best performing season with 5.97 kWh per day per kW, while autumn produces 5.70 kWh per day per kW. Winter represents the lowest production period at 5.08 kWh per day per kW, though this still constitutes solid output for solar energy systems. The variation between the best and worst performing seasons is relatively modest, indicating consistent solar resource availability year-round. For fixed panel installations at this location, the optimal tilt angle is 20 degrees facing North to maximize total annual energy production. This angle calculation accounts for the weighted solar elevation angles throughout the year and Earth's elliptical orbit patterns.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in this tropical Brazilian location:

• Wet season precipitation: Heavy rainfall and frequent cloud cover during wet months can reduce solar irradiance and energy output
• High humidity levels: Persistent moisture in the air may cause equipment corrosion and reduce panel efficiency over time
• Dust and debris accumulation: Dry season conditions can lead to dust buildup on panels, blocking sunlight
• Extreme temperatures: High tropical temperatures can reduce photovoltaic panel efficiency

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies prove effective. Regular cleaning systems or schedules help maintain panel surfaces free from dust and debris accumulation. Proper ventilation spacing beneath panels allows air circulation to reduce operating temperatures and improve efficiency. Corrosion-resistant mounting hardware and electrical components specifically rated for high-humidity tropical environments extend system lifespan. Installing panels at the optimal 20-degree North-facing tilt not only maximizes solar collection but also promotes natural rainwater cleaning during wet seasons. Drainage systems around ground-mounted installations prevent water accumulation, while elevated mounting reduces exposure to ground-level dust and vegetation growth that could create shading issues.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

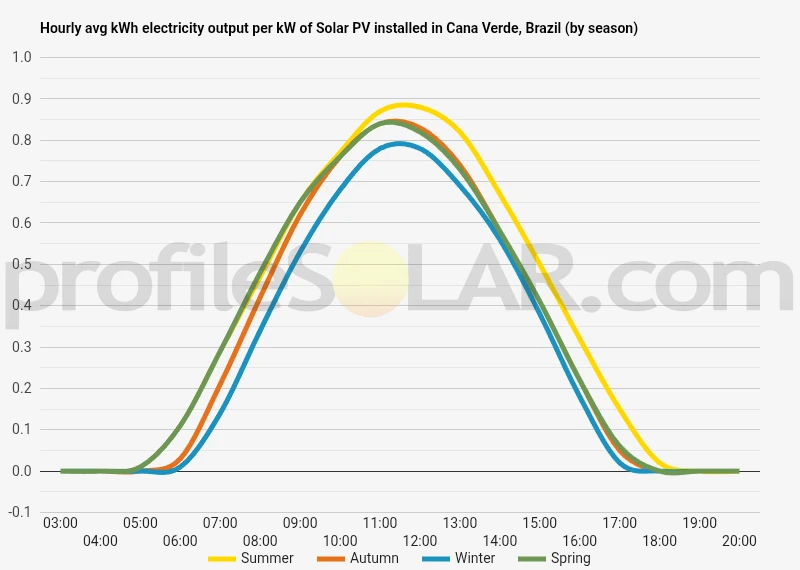

Solar output per kW of installed solar PV by season in Cana Verde

Seasonal solar PV output for Latitude: -21.0205, Longitude: -45.1883 (Cana Verde, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Cana Verde, Brazil

To maximize your solar PV system's energy output in Cana Verde, Brazil (Lat/Long -21.0205, -45.1883) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cana Verde, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cana Verde, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	27° North in Autumn	36° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cana Verde, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cana Verde, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cana Verde, Brazil

Topographical Features of Cana Verde Region

Cana Verde is situated in the southern portion of Minas Gerais state, nestled within the Brazilian Highlands plateau system. The terrain in this region is characterized by gently rolling hills and elevated plateaus that typically range between 800 and 1,200 meters above sea level. This area forms part of the larger Serra da Mantiqueira mountain system, which creates a landscape of moderate undulations rather than steep mountainous terrain.

The topography around Cana Verde features broad, open valleys interspersed with low ridges and rounded hilltops. The geological foundation consists primarily of crystalline rocks from the Precambrian era, which have been weathered over millions of years to create the characteristic smooth, undulating landscape. These ancient formations have resulted in relatively stable terrain with gradual elevation changes that make the region accessible and developable.

The drainage pattern in the area follows the natural contours of the land, with several small tributaries flowing toward larger river systems. The Sapucaí River basin influences much of the regional hydrology, creating fertile valleys between the elevated areas. The soil composition varies from red latosols on the higher elevations to alluvial deposits in the valley bottoms, reflecting the region's agricultural heritage.

Optimal Areas for Large-Scale Solar Development

The elevated plateaus surrounding Cana Verde present excellent opportunities for large-scale solar photovoltaic installations. These higher elevation areas typically feature relatively flat to gently sloping terrain that requires minimal grading for solar panel installation. The plateau surfaces often extend for several square kilometers, providing ample space for utility-scale solar farms without significant topographical constraints.

The broad ridgetops and mesa-like formations to the north and east of Cana Verde are particularly well-suited for solar development. These areas benefit from consistent elevation profiles and reduced shading from adjacent terrain features. The stable geological foundation of these elevated areas also minimizes concerns about ground subsidence or instability that could affect solar infrastructure over time.

Valley floors and lower-lying areas, while potentially suitable for solar installations, may present challenges due to morning and evening shading from surrounding hills. However, the wider valleys that run in an east-west orientation could still accommodate solar arrays effectively, particularly in their central portions where topographical shading is minimized.

The region's moderate topographical relief means that most areas within a 20-kilometer radius of Cana Verde could technically support solar installations. The key consideration for developers would be selecting sites that balance factors such as land availability, grid connectivity, and minimal environmental impact while taking advantage of the area's generally favorable terrain conditions.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
