Candiota, Rio Grande do Sul, Brazil presents a moderately favorable location for year-round solar PV energy generation, though with significant seasonal variations typical of its Southern Sub Tropics climate zone.

Seasonal Solar Performance

The solar energy output at this location shows considerable fluctuation throughout the year. Summer delivers the strongest performance at 7.57kWh per day per kW of installed capacity, making it the optimal season for solar generation. Spring follows as the second-best period with 5.87kWh per day per kW, while autumn drops to 4.56kWh per day per kW. Winter presents the most challenging conditions with only 3.14kWh per day per kW of production. This seasonal pattern means that solar installations at Candiota will generate approximately 2.4 times more electricity in summer compared to winter, requiring careful consideration for energy storage or grid-tie arrangements to manage this variability.

Optimal Panel Configuration

For fixed panel installations at this location, the ideal tilt angle to maximize total year-round solar production is 27 degrees facing North. This angle has been calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data to achieve optimal annual energy capture.

Environmental and Weather Factors

Several local factors could potentially impact solar production efficiency at Candiota:

• High humidity and moisture: The subtropical climate brings elevated humidity levels, particularly during summer months, which can reduce panel efficiency and promote corrosion of electrical components
• Heavy rainfall: The region experiences significant precipitation, especially during certain seasons, which can temporarily reduce solar output and create maintenance challenges
• Temperature fluctuations: Seasonal temperature variations can affect panel efficiency, with excessive heat potentially reducing output during peak summer periods
• Agricultural dust and particulates: Being in a rural agricultural region, airborne dust and organic matter can accumulate on panels, reducing light transmission

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these challenges, several installation strategies should be implemented:

• Enhanced drainage systems: Install panels with adequate spacing and drainage channels to prevent water accumulation and ensure rapid drying after rainfall
• Corrosion-resistant materials: Use marine-grade aluminum frames and stainless steel mounting hardware to withstand high humidity conditions
• Regular cleaning protocols: Establish routine panel cleaning schedules, particularly during dry periods when dust accumulation is highest
• Improved ventilation: Mount panels with sufficient air gap beneath to promote cooling and reduce temperature-related efficiency losses
• Weather-resistant electrical components: Utilize IP65-rated inverters and electrical connections with enhanced sealing against moisture ingress

Despite these environmental considerations, Candiota's solar potential remains viable for renewable energy generation, particularly when proper installation techniques and maintenance practices are employed to address the subtropical climate challenges.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

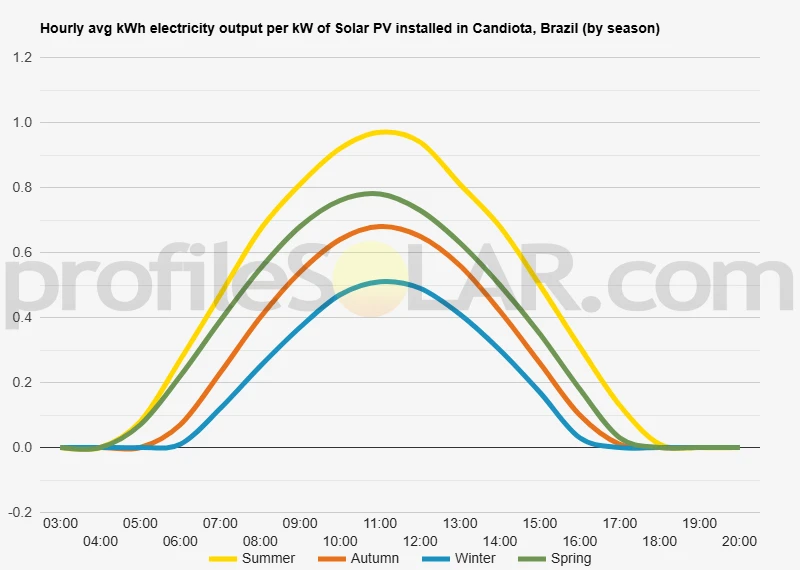

Solar output per kW of installed solar PV by season in Candiota

Seasonal solar PV output for Latitude: -31.4909, Longitude: -53.7027 (Candiota, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 27° North in Candiota, Brazil

To maximize your solar PV system's energy output in Candiota, Brazil (Lat/Long -31.4909, -53.7027) throughout the year, you should tilt your panels at an angle of 27° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Candiota, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Candiota, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
15° North in Summer	37° North in Autumn	47° North in Winter	24° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Candiota, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Candiota, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Candiota, Brazil

Topographical Features Around Candiota

The region surrounding Candiota in Rio Grande do Sul, Brazil, is characterized by gently rolling hills and relatively flat terrain typical of the southern Brazilian pampas. This area sits within the broader Campanha Gaúcha region, where the landscape consists primarily of grasslands with modest elevation changes. The topography features undulating plains with occasional low ridges and shallow valleys, creating a terrain that varies between approximately 200 to 400 meters above sea level. The local landscape is dominated by extensive pasturelands and agricultural fields, with scattered patches of native vegetation including gallery forests along waterways. The terrain slopes gradually toward drainage systems that eventually feed into larger river networks. Rocky outcrops are relatively uncommon, though some areas feature weathered sedimentary formations that create subtle variations in the otherwise gentle topography.

Climate and Weather Patterns

Candiota experiences a humid subtropical climate with well-defined seasons. The region receives abundant solar radiation throughout the year, with clear skies being most common during the winter months from May through August. Summer brings more frequent cloud cover and precipitation, though sunny periods remain substantial. The area benefits from relatively stable weather patterns with minimal extreme weather events that could impact solar installations. Wind patterns in the region are generally moderate and consistent, which can be beneficial for keeping solar panels cool and maintaining optimal performance. The absence of significant topographical barriers means that weather systems move through the area predictably, contributing to reliable solar resource availability.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around Candiota are the broad, gently sloping plateaus that extend northwest and southwest of the town. These areas offer several advantages including minimal grading requirements, excellent solar exposure with limited shading from topographical features, and relatively easy access for construction and maintenance equipment. The flatter sections of the surrounding pampas provide ideal conditions for large solar arrays, as the gentle slopes can be easily accommodated with standard mounting systems while providing natural drainage. Areas with south-facing slopes should generally be avoided in favor of north-facing or flat terrain, which will capture optimal solar radiation in the Southern Hemisphere. The agricultural lands surrounding Candiota present particularly attractive opportunities for solar development, as much of this terrain is already cleared and relatively level. The existing road network provides good access to these areas, reducing infrastructure development costs. Additionally, the proximity to existing electrical transmission infrastructure, including connections to the regional power grid, makes these locations economically viable for large-scale projects. Areas near existing mining operations may also present opportunities, as the land has already been disturbed and may be suitable for repurposing as solar installations. The relatively stable geology of the region provides good foundation conditions for mounting systems and reduces concerns about ground settlement or instability.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
