Canela, Rio Grande do Sul, Brazil is a location in the Southern Sub Tropics with varying potential for solar energy production throughout the year. The energy output from solar PV systems in this area shows notable seasonal fluctuations, which is important to consider when planning solar installations.

Seasonal Solar Production

Solar panels in Canela produce significantly more electricity during summer months, generating approximately 6.87kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.67kWh/day. Production decreases in autumn to 4.48kWh/day, with winter showing the lowest output at just 3.28kWh/day per kilowatt installed.

This seasonal pattern means that Canela has moderate year-round solar potential, but with a pronounced difference between summer and winter production - summer generates more than twice the electricity compared to winter months.

Optimal Panel Installation

For fixed solar panel installations in Canela, Rio Grande do Sul, the ideal tilt angle to maximize year-round energy production is 26 degrees facing North. This specific angle has been calculated by analyzing daily solar elevation angles at this latitude, weighted by the daily PV potential using solar irradiance data, and accounting for Earth's elliptical orbit.

Environmental Considerations

Several environmental factors could affect solar production in Canela:

• Rainfall and cloud cover during the subtropical winter can significantly reduce solar efficiency during the already less productive winter months
• Morning fog, common in this region's valleys, may delay peak production hours
• Occasional hailstorms in spring and summer pose a physical risk to panels
• Dust and pollen accumulation, particularly during flowering seasons in this vegetated region

Preventative Measures

To optimize solar production in Canela despite these challenges, several measures can be implemented:

• Install hail-resistant panels with tempered glass that can withstand local weather conditions
• Implement automated cleaning systems or schedule regular manual cleaning to address dust and pollen buildup
• Consider micro-inverters or power optimizers to minimize the impact of partial shading
• Install panels at a slightly steeper angle than the optimal 26 degrees if winter production is prioritized, or slightly flatter if summer production is more important
• Use weather-sealed junction boxes and marine-grade wiring to prevent moisture damage during wet seasons

While not ideal year-round due to the winter production dip, Canela still represents a viable location for solar PV with proper system design and maintenance practices.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

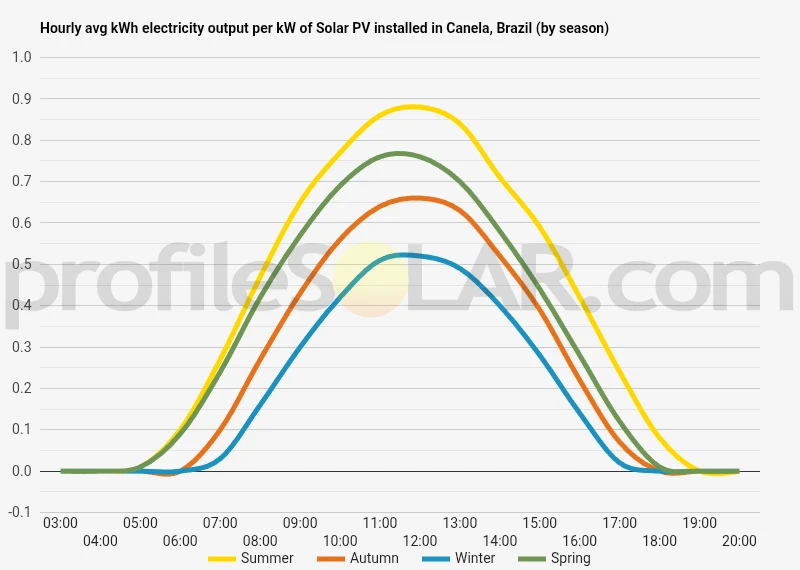

Solar output per kW of installed solar PV by season in Canela

Seasonal solar PV output for Latitude: -29.3471, Longitude: -50.7754 (Canela, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° North in Canela, Brazil

To maximize your solar PV system's energy output in Canela, Brazil (Lat/Long -29.3471, -50.7754) throughout the year, you should tilt your panels at an angle of 26° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Canela, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Canela, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	35° North in Autumn	45° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Canela, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Canela, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Canela, Brazil

The region surrounding Canela, located in the Rio Grande do Sul state of southern Brazil, features a diverse and distinctive topography that significantly influences its landscape and climate. Canela sits at an elevation of approximately 830 meters above sea level, nestled within the Serra Gaúcha highlands, a southern extension of the greater Serra do Mar mountain range. This mountainous region creates a dramatic landscape characterized by rolling hills, steep escarpments, and deeply carved valleys. The terrain around Canela is notably undulating, with significant variations in elevation throughout the area. The highlands of Serra Gaúcha form part of the southern Brazilian plateau, with numerous peaks and ridges creating a complex topographical profile. The area features several canyons, including nearby attractions like Itaimbezinho and Fortaleza canyons, which showcase the dramatic relief of the region.

Vegetation and Land Cover

The natural vegetation of the Canela region consists primarily of Atlantic Forest (Mata Atlântica) remnants and Araucaria moist forests, with the distinctive Paraná pine trees being emblematic of the landscape. These forests cover many of the hillsides, while the valleys often contain grasslands and agricultural areas where the terrain is less severe. Hydrologically, the region is well-supplied with numerous streams and rivers cutting through the landscape, creating additional topographical features such as waterfalls and rapids. The water systems in this area ultimately drain toward the Atlantic Ocean through larger river systems.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, several areas near Canela present favorable conditions based on topographical considerations: The gently sloping plateaus to the east and northeast of Canela offer promising locations for solar development. These areas typically have more consistent elevation profiles with moderate slopes facing northward (optimal for the Southern Hemisphere), maximizing solar exposure throughout the day. The relatively open terrain in these plateau regions would minimize shading issues that can reduce solar efficiency. The lower-elevation areas extending toward Gramado and beyond, where the terrain gradually descends from the Serra Gaúcha highlands, present another viable option. These transitional zones often feature clearer land with fewer tall trees and less dramatic elevation changes, making construction and maintenance of solar arrays more practical. Several of the broader valley floors within 20-30 kilometers of Canela could also accommodate large solar installations. While these areas might experience some topographical shading during early morning and late afternoon, particularly in winter, the flatter terrain would significantly reduce installation costs and engineering challenges compared to steeper locations. The agricultural lands to the south and southwest, where human activity has already cleared much of the original forest cover, might provide opportunities for dual-use solar development. These areas generally feature gentler topography with southward-facing aspects that receive consistent sunlight. It's worth noting that while the mountainous nature of the Serra Gaúcha region creates some challenges for large-scale solar development, it also offers certain advantages. The higher elevation means clearer air with less atmospheric attenuation of solar radiation, potentially increasing energy yield per square meter of solar panels. Additionally, the cooler temperatures at these elevations can help maintain photovoltaic efficiency, as panel performance typically decreases in extreme heat.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
