Canelinha, Santa Catarina, Brazil presents a moderately favorable location for year-round solar energy generation, though with notable seasonal variations that potential solar installers should understand.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropics location varies significantly throughout the year. Summer delivers the strongest performance at 6.18 kWh per day per kW of installed solar capacity, making it the ideal season for solar generation. Spring follows as the second-best performing season with 4.73 kWh per day per kW, while autumn produces 4.46 kWh per day per kW. Winter presents the most challenging period for solar generation, dropping to just 3.32 kWh per day per kW of installed capacity. This represents nearly a 50% reduction compared to peak summer production, which is typical for locations at this latitude in the Southern Hemisphere.

Optimal Panel Configuration

For fixed panel installations at Canelinha, Santa Catarina, the ideal tilt angle is 24 degrees facing North to maximize total year-round solar production. This angle has been calculated by analyzing daily solar elevation angles, optimal panel positioning, and weighting these factors against actual solar irradiance data throughout the year.

Environmental and Weather Challenges

Several local factors in Canelinha could potentially impact solar energy production:

• High humidity and coastal proximity: The location's subtropical climate and proximity to the Atlantic coast can lead to increased moisture, salt air, and potential corrosion of solar equipment
• Seasonal rainfall patterns: The region experiences distinct wet and dry seasons, with heavy rainfall during certain periods that can reduce solar irradiance and create debris accumulation on panels
• Tropical storm activity: The coastal location may experience severe weather events including strong winds and hail that could damage solar installations
• Vegetation growth: The subtropical climate promotes rapid plant growth that could create shading issues if not properly managed

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies are recommended:

• Corrosion-resistant materials: Use marine-grade aluminum frames and stainless steel mounting hardware to withstand salt air exposure
• Enhanced drainage design: Install panels with adequate tilt and spacing to promote water runoff and prevent standing water during heavy rains
• Regular maintenance scheduling: Implement quarterly cleaning schedules during rainy seasons and monthly inspections to remove debris and check for damage
• Wind-resistant mounting: Use reinforced mounting systems designed for high wind loads and consider ground-mount systems in areas prone to severe weather
• Vegetation management: Maintain clear zones around solar installations and trim nearby trees regularly to prevent shading

Despite these challenges, Canelinha's year-round solar potential makes it a viable location for solar energy generation, particularly when proper installation techniques and maintenance practices are implemented to address the local environmental conditions.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

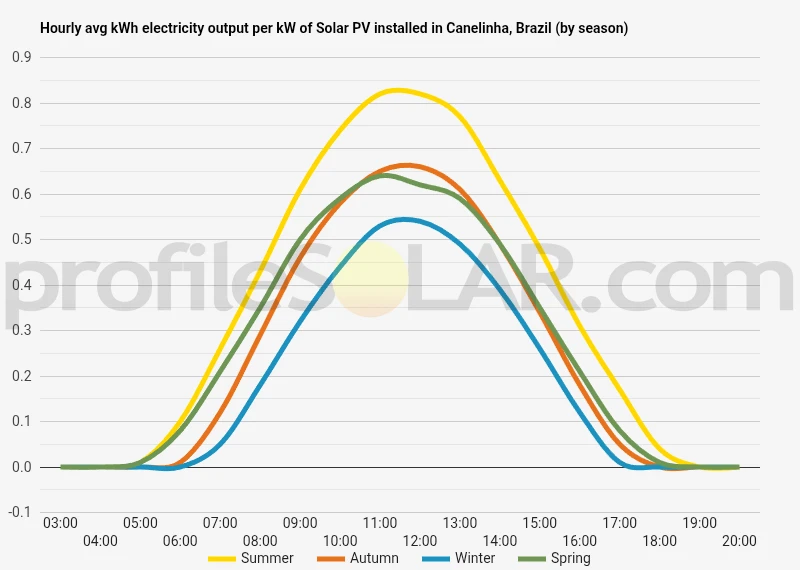

Solar output per kW of installed solar PV by season in Canelinha

Seasonal solar PV output for Latitude: -27.2501, Longitude: -48.7919 (Canelinha, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Canelinha, Brazil

To maximize your solar PV system's energy output in Canelinha, Brazil (Lat/Long -27.2501, -48.7919) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Canelinha, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Canelinha, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	33° North in Autumn	43° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Canelinha, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Canelinha, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Canelinha, Brazil

Topographical Features of Canelinha Region

Canelinha is situated in the coastal state of Santa Catarina in southern Brazil, positioned within the Atlantic Forest biome approximately 60 kilometers north of the state capital Florianópolis. The municipality sits in a transitional zone between the coastal lowlands and the Serra do Mar mountain range, creating a varied topographical landscape that influences both climate patterns and land use potential.

The terrain around Canelinha is characterized by rolling hills and gentle slopes, with elevations typically ranging from 50 to 400 meters above sea level. The landscape features a mix of undulating terrain interspersed with flatter valley areas, creating a mosaic of different elevation zones. The region's topography has been shaped by ancient geological processes and erosion patterns, resulting in relatively stable ground conditions suitable for various development purposes.

The area experiences a humid subtropical climate typical of coastal Santa Catarina, with the topographical variation creating microclimates throughout the region. Higher elevation areas tend to receive more precipitation and experience slightly cooler temperatures, while the lower-lying areas benefit from better drainage and more consistent weather patterns. The prevailing winds from the Atlantic Ocean are influenced by the local topography, creating air circulation patterns that help moderate temperatures throughout the year.

Optimal Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations around Canelinha would be the gently sloping hillsides with southern and southeastern exposures. These areas provide optimal solar orientation for the Southern Hemisphere while maintaining manageable gradients for construction and maintenance access. The moderate slopes also facilitate natural drainage, reducing the risk of water accumulation that could affect equipment performance.

The flatter valley areas and plateau regions scattered throughout the municipality offer excellent potential for ground-mounted solar arrays. These locations typically provide easier access for construction equipment and lower installation costs due to minimal grading requirements. The stable soil conditions in these areas, combined with good drainage characteristics, make them particularly suitable for large-scale solar infrastructure.

Areas at mid-elevation ranges, typically between 100 and 250 meters above sea level, represent the sweet spot for solar development in this region. These locations benefit from reduced atmospheric interference compared to lower elevations while avoiding the increased cloud cover and weather variability often found at higher elevations. The moderate elevation also provides natural wind circulation that helps maintain optimal operating temperatures for photovoltaic panels.

The agricultural areas surrounding Canelinha, particularly those with gentle slopes and good road access, present excellent opportunities for solar development. Many of these locations feature cleared land with established infrastructure access, reducing development costs and environmental impact. The existing rural road network provides the necessary access for construction and ongoing maintenance operations while connecting to regional electrical transmission infrastructure.

Former pastureland and areas with degraded vegetation cover are particularly well-suited for solar development, as they require minimal environmental remediation and often have favorable soil stability characteristics. These locations typically offer large contiguous areas necessary for utility-scale installations while minimizing conflicts with existing land uses or sensitive ecological areas.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
