Solar Energy Potential in Canoinhas, Santa Catarina, Brazil

Canoinhas, Santa Catarina, Brazil, located in the Southern Sub Tropics at coordinates -26.2733, -50.5057, offers moderate potential for solar energy production throughout the year. The location experiences seasonal variations in solar energy generation that are important to consider when planning a solar PV installation.

Seasonal Solar Production

The solar energy output in Canoinhas varies significantly across the four seasons:

• Summer: 6.11 kWh per day for each kW installed
• Autumn: 4.51 kWh per day for each kW installed
• Winter: 3.43 kWh per day for each kW installed
• Spring: 4.95 kWh per day for each kW installed

This pattern shows that summer months provide the highest energy yield, with almost double the production compared to winter. Spring offers the second-best production period, followed by autumn, while winter represents the least productive season.

Optimal Panel Installation

For fixed solar panel installations in Canoinhas, Santa Catarina, the ideal tilt angle to maximize year-round energy production is 23 degrees facing North. This specific angle has been calculated to optimize solar exposure throughout the year, accounting for the Earth's elliptical orbit and the location's position in the Southern Hemisphere.

Environmental and Weather Considerations

Canoinhas faces several environmental factors that could impact solar production. The region experiences a humid subtropical climate with occasional heavy rainfall and thunderstorms, particularly during summer months. These weather patterns can temporarily reduce solar output and potentially damage equipment if not properly protected. The area is also subject to occasional hail events, which pose a risk to solar panel integrity. Installing hail-resistant panels with tempered glass and proper mounting systems can mitigate this risk. Additionally, the subtropical location means higher humidity levels, which can accelerate corrosion of mounting hardware and electrical components if marine-grade materials aren't used. Seasonal fog, particularly in winter mornings, may temporarily reduce production. Elevating panels slightly higher than standard installations can sometimes help panels emerge from ground-level fog sooner. To maximize production despite these challenges, regular cleaning schedules should be implemented to remove dust and pollen accumulation, particularly during dry periods. Installing panels with anti-soiling coatings and ensuring proper drainage around mounting structures will help maintain optimal performance throughout Canoinhas' varying seasonal conditions.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

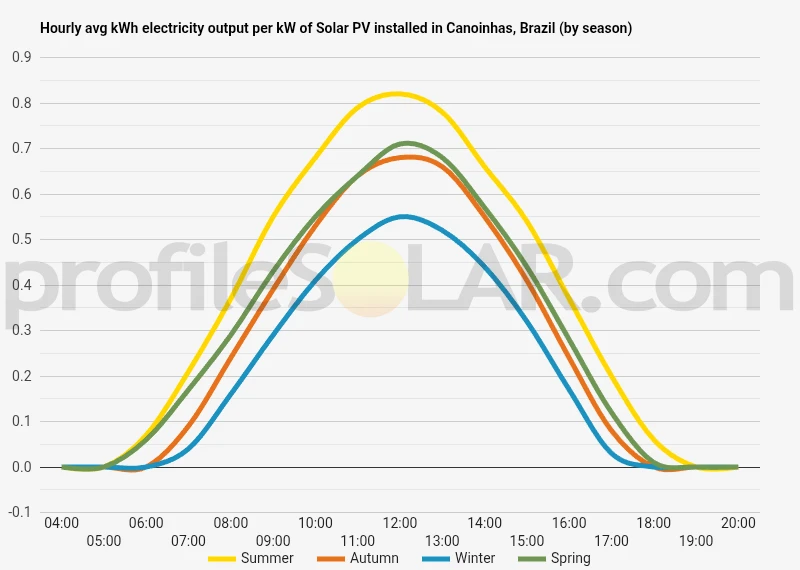

Solar output per kW of installed solar PV by season in Canoinhas

Seasonal solar PV output for Latitude: -26.2733, Longitude: -50.5057 (Canoinhas, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 23° North in Canoinhas, Brazil

To maximize your solar PV system's energy output in Canoinhas, Brazil (Lat/Long -26.2733, -50.5057) throughout the year, you should tilt your panels at an angle of 23° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Canoinhas, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Canoinhas, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 23° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° North in Summer	32° North in Autumn	41° North in Winter	19° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Canoinhas, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Canoinhas, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Canoinhas, Brazil

The region surrounding Canoinhas, Brazil, located in the northern part of Santa Catarina state, features a diverse topography characterized by a mix of rolling hills, plateaus, and river valleys. Situated in the southern portion of the Brazilian Highlands, Canoinhas rests at an average elevation of approximately 760 meters above sea level. The landscape is part of the larger Atlantic Plateau region, which extends through much of southern Brazil.

Topographical Features

The terrain around Canoinhas is predominantly undulating, with gentle slopes and modest hills rather than dramatic mountains. The area sits on what is known as the Paraná Plateau, a geological formation that spans parts of southern Brazil. This plateau is dissected by various river systems, including the Canoinhas River, which has carved shallow valleys throughout the region. To the west of Canoinhas, the landscape gradually rises toward higher elevations of the Serra do Mar mountain range, though the immediate vicinity lacks extreme elevation changes. The eastern portions tend to be slightly lower in elevation, creating a subtle gradient across the region. This varied terrain is covered by a mixture of agricultural lands, remnants of the once-extensive Araucaria forests (a type of pine forest native to southern Brazil), and areas of secondary vegetation growth.

Soil and Surface Characteristics

The soils around Canoinhas are predominantly red-yellow latosols and argisols, which are typical of subtropical regions. These soils have developed over basaltic bedrock, resulting from the ancient volcanic activity that formed much of the underlying geology of southern Brazil. The surface is generally stable, with limited areas prone to erosion except along steeper slopes and riverbanks.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic installations, several areas around Canoinhas show promising characteristics based on topographical considerations alone. The most suitable locations would be: The gently sloping plateaus to the north and northwest of Canoinhas offer relatively flat expanses with minimal shading concerns. These areas, particularly between Canoinhas and neighboring Três Barras, feature open agricultural lands with favorable aspects (predominantly north-facing in the southern hemisphere) that maximize solar exposure. The slightly elevated regions to the southwest, extending toward Major Vieira, also present viable options. These areas combine adequate elevation with minimal topographical obstruction, reducing morning and evening shading effects that might impact energy production. Areas to avoid would include the more densely forested sections of the region, particularly remnants of Araucaria forests which have ecological importance, and the steeper slopes found in scattered locations throughout the region. Additionally, the immediate river valleys, while flat, may experience more frequent morning fog conditions due to their lower elevation and proximity to water sources. The relatively mild terrain overall means that site preparation costs for solar installations would be moderate compared to more mountainous regions elsewhere in Brazil. The existing network of rural roads throughout the region also provides reasonable access to potential development sites, reducing infrastructure development costs for new solar projects.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
