Canudos, Bahia, Brazil presents excellent conditions for year-round solar energy generation, with consistently strong solar output throughout all seasons. Located in the tropical region of northeastern Brazil, this area benefits from abundant sunshine and relatively stable solar production patterns that make it highly suitable for solar photovoltaic installations.

Seasonal Solar Performance

The solar energy output at Canudos shows impressive consistency across all seasons, with spring delivering the highest production at 7.04 kWh per day per kW of installed capacity. Summer follows closely with 6.22 kWh/day, while autumn generates 5.81 kWh/day. Even during the lowest-producing season of winter, the location still delivers a respectable 5.47 kWh/day per kW installed. Spring emerges as the optimal season for solar generation, producing nearly 29% more energy than the winter months. This seasonal variation is relatively modest compared to higher latitude locations, making Canudos an attractive location for consistent year-round solar energy production.

Optimal Panel Configuration

For maximum energy output throughout the year, solar panels at Canudos should be installed at a fixed tilt angle of 9 degrees facing north. This relatively shallow angle is calculated to optimize total annual production by accounting for the sun's varying position throughout the year and weighting the angles based on actual solar irradiance data for the location.

Environmental and Weather Challenges

Several factors could potentially impact solar energy production at Canudos and require careful consideration during installation:

• Dust and Sand Accumulation: The semi-arid climate of the region can lead to significant dust buildup on solar panels, reducing their efficiency over time
• Seasonal Rainfall Patterns: While the wet season provides natural panel cleaning, extended dry periods can result in substantial dust accumulation
• High Temperatures: Extreme heat can reduce solar panel efficiency, as photovoltaic cells typically perform less efficiently at very high temperatures
• Wind and Storms: Occasional strong winds and storms during certain seasons may pose risks to panel mounting systems

Preventative Measures for Optimal Performance

To maximize solar energy production and system longevity at Canudos, Bahia, several preventative measures should be implemented: Regular cleaning schedules are essential, particularly during dry seasons when dust accumulation is most severe. Installing automated cleaning systems or establishing monthly manual cleaning routines can maintain optimal panel efficiency. Water-efficient cleaning methods are recommended given the regional climate patterns. Proper ventilation and mounting systems help address high-temperature concerns. Installing panels with adequate air circulation underneath and using mounting systems that allow airflow can help keep operating temperatures lower and maintain efficiency. Robust mounting and structural systems designed to withstand regional wind patterns and occasional severe weather events are crucial. This includes using corrosion-resistant materials suitable for the local climate conditions and ensuring all installations meet or exceed local building codes for wind resistance. Heat-resistant components and inverters rated for high-temperature operation should be selected, with inverters ideally installed in shaded, well-ventilated locations to prevent overheating and maintain optimal system performance throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

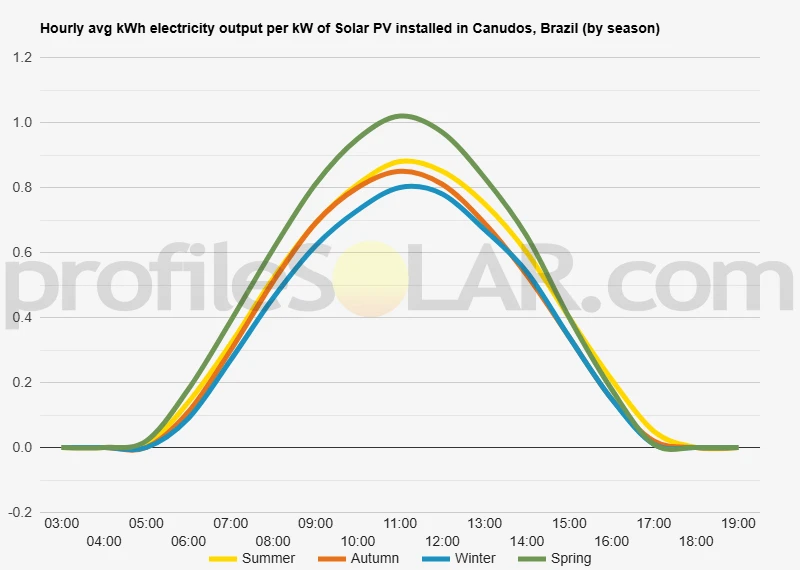

Solar output per kW of installed solar PV by season in Canudos

Seasonal solar PV output for Latitude: -9.8813, Longitude: -39.1494 (Canudos, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 9° North in Canudos, Brazil

To maximize your solar PV system's energy output in Canudos, Brazil (Lat/Long -9.8813, -39.1494) throughout the year, you should tilt your panels at an angle of 9° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Canudos, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Canudos, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 9° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° South in Summer	16° North in Autumn	25° North in Winter	4° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Canudos, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Canudos, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Canudos, Brazil

Topography Around Canudos

Canudos sits in the heart of Brazil's semi-arid Caatinga region in northern Bahia state, where the landscape is characterized by gently rolling hills and expansive flat plains. The terrain around this historic town consists primarily of low-elevation areas with gradual undulations, creating a relatively accessible topography that rarely presents steep gradients or challenging elevation changes.

The surrounding countryside features broad, open valleys interspersed with modest ridgelines that typically rise no more than a few hundred meters above the valley floors. These ridges run in irregular patterns across the landscape, creating a series of natural basins and elevated plateaus. The soil composition varies from sandy to rocky, with exposed bedrock visible in many areas, particularly on the higher elevations and hillsides.

Vegetation in the region consists mainly of thorny shrubs, cacti, and drought-resistant trees typical of the Caatinga biome. During dry periods, much of the natural vegetation becomes sparse, leaving large areas of open ground with minimal canopy cover. The landscape is punctuated by seasonal streams and dry creek beds that only flow during the rainy season, creating natural drainage patterns across the terrain.

Optimal Areas for Large-Scale Solar Development

The flat to gently sloping plains that extend eastward and southward from Canudos present the most suitable terrain for large-scale solar photovoltaic installations. These areas offer the ideal combination of minimal grading requirements, excellent accessibility for construction and maintenance vehicles, and sufficient contiguous space for extensive solar arrays.

The elevated plateaus scattered throughout the region also provide excellent opportunities for solar development. These naturally flat or slightly inclined surfaces often span several square kilometers and offer the additional advantage of enhanced wind flow for natural cooling of solar panels. The rocky substrate in these areas provides stable foundations that require minimal preparation for mounting systems.

Areas with gentle south-facing slopes, particularly those with gradients between two and five degrees, would maximize solar collection efficiency while maintaining construction feasibility. The natural drainage patterns in these locations help prevent water accumulation around installations, which is beneficial during the region's intense but brief rainy periods.

The sparse vegetation cover throughout much of the surrounding landscape means that environmental clearing requirements would be minimal in most locations. Areas that experience seasonal flooding from the intermittent waterways should be avoided, making the higher ground and well-drained valley floors the most practical choices for development. The relatively stable geological conditions and absence of significant seismic activity in the region further enhance the suitability of virtually any adequately flat terrain for solar infrastructure.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
