Capelinha, Minas Gerais, Brazil presents a highly favorable location for year-round solar energy generation. Located in the tropical region at coordinates -17.6873, -42.5057, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than dramatic temperature variations.

Solar Energy Performance

The solar energy output at Capelinha demonstrates strong performance across all seasons. Summer delivers the highest production at 5.83 kWh per day per kW of installed solar capacity, while spring follows closely at 5.55 kWh/day. Autumn maintains solid output at 5.47 kWh/day, and even winter, the lowest-performing season, still generates a respectable 4.66 kWh/day per kW installed. The optimal times for solar generation occur during summer and spring months, when the sun's position maximizes energy capture. However, the relatively small variation between seasons - only about 1.17 kWh difference between the best and worst performing seasons - indicates this location offers reliable solar production year-round.

Optimal Panel Configuration

For maximum energy production at Capelinha, Minas Gerais, solar panels should be installed at a fixed tilt angle of 17 degrees facing north. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying position throughout the year and the Earth's elliptical orbit patterns.

Environmental Factors and Challenges

Several environmental factors in Capelinha could potentially impact solar energy production:

• Wet season rainfall: Extended periods of heavy rain and cloud cover during wet seasons can reduce solar irradiance and create shading issues
• High humidity: Tropical humidity levels may cause moisture buildup on panels, reducing efficiency
• Dust and debris: Dry season conditions can lead to dust accumulation on solar panels
• Vegetation growth: The tropical climate promotes rapid plant growth that could create shading problems

Preventative Measures

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Regular cleaning schedules: Implement frequent panel cleaning, especially during transition periods between wet and dry seasons
• Proper drainage: Install adequate drainage systems around solar installations to prevent water pooling
• Vegetation management: Maintain clear zones around solar arrays and establish regular trimming schedules for nearby vegetation
• Quality mounting systems: Use corrosion-resistant mounting hardware suitable for humid tropical conditions
• Monitoring systems: Install performance monitoring to quickly identify and address any efficiency drops

Despite these potential challenges, Capelinha's consistent solar output throughout the year makes it an excellent location for solar energy investment, provided proper installation and maintenance practices are followed.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

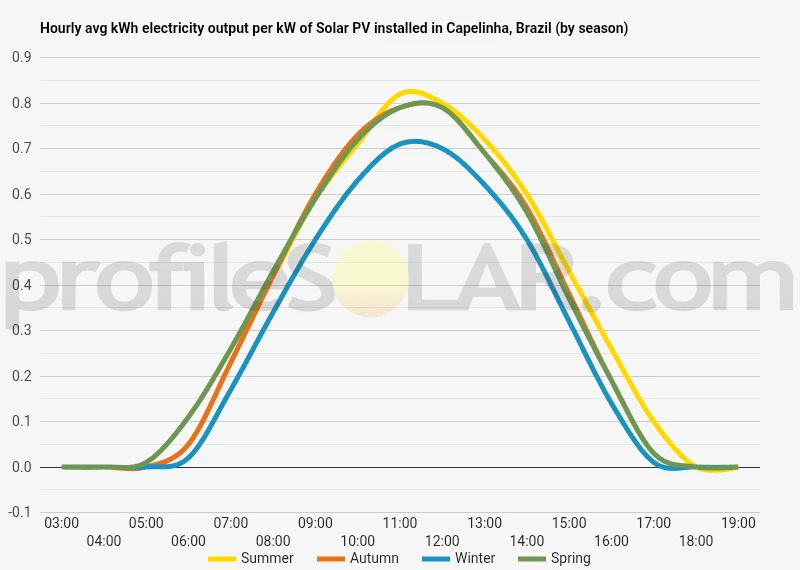

Solar output per kW of installed solar PV by season in Capelinha

Seasonal solar PV output for Latitude: -17.6873, Longitude: -42.5057 (Capelinha, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 17° North in Capelinha, Brazil

To maximize your solar PV system's energy output in Capelinha, Brazil (Lat/Long -17.6873, -42.5057) throughout the year, you should tilt your panels at an angle of 17° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Capelinha, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Capelinha, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 17° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
2° North in Summer	23° North in Autumn	33° North in Winter	12° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Capelinha, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Capelinha, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Capelinha, Brazil

Topographical Features Around Capelinha

Capelinha sits in the northeastern region of Minas Gerais state, nestled within the Jequitinhonha Valley, an area characterized by rolling hills and gentle undulations typical of the Brazilian highlands. The terrain around this municipality features a mix of moderately elevated plateaus and shallow valleys, with elevations generally ranging between 800 and 1,200 meters above sea level. The landscape is part of the broader Serra do Espinhaço mountain range system, though the immediate vicinity of Capelinha itself occupies relatively flatter ground compared to the more dramatic peaks found elsewhere in the region.

The topography is dominated by weathered crystalline formations and sedimentary deposits that have created a gently undulating surface over millions of years. Small streams and seasonal watercourses have carved modest valleys through the terrain, creating a pattern of low ridges separated by shallow depressions. The soil composition varies from sandy to clay-rich depending on elevation and drainage patterns, with many areas showing exposed rock outcroppings that are characteristic of this part of the Brazilian Shield.

Vegetation in the region transitions between cerrado savanna and caatinga dry forest, with sparse tree cover and predominantly grassland areas on the higher, flatter sections. This relatively open landscape, combined with the moderate topography, creates extensive areas of gently sloping or nearly level ground that extends for considerable distances in multiple directions from Capelinha.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Capelinha would be the elevated plateau areas to the west and southwest of the town center. These zones offer several advantages including relatively flat terrain that minimizes grading and construction costs, while maintaining sufficient elevation to ensure good drainage and reduce the risk of seasonal flooding. The gentle southward-facing slopes in these areas would be particularly beneficial for solar panel orientation.

The plateau regions extending toward the neighboring municipalities of Minas Novas and Turmalina present excellent opportunities for solar development. These areas feature extensive stretches of level to gently rolling terrain with minimal vegetation, reducing both land clearing costs and environmental impact. The sparse population density in these zones also means fewer conflicts with existing land uses and easier access to large contiguous parcels suitable for utility-scale installations.

Areas immediately north and northeast of Capelinha, while slightly more undulating, still offer good potential for solar development. The terrain here consists of broad, gentle ridges that could accommodate solar arrays with minimal earthwork. The natural drainage patterns in these locations help ensure that installations would remain above seasonal water accumulation areas.

The eastern approaches toward the Serra do Espinhaço foothills should generally be avoided for large-scale development due to increasing slope angles and more complex terrain. Similarly, the immediate valley bottoms and drainage areas, while flat, may be subject to seasonal water flow and would be better preserved for agricultural use or environmental protection. The optimal development zones maintain the advantages of accessible, relatively level terrain while avoiding both the steeper upland areas and the potentially flood-prone lowlands.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
