Capim, Paraíba, Brazil represents an excellent location for year-round solar photovoltaic energy generation. Located in the tropical region at coordinates -6.8915, -35.183, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than the traditional temperature-based seasons found in temperate climates.

Solar Energy Production Potential

The solar energy output data for Capim demonstrates strong and reliable production throughout the year. Spring emerges as the peak season with an impressive 7.14 kWh per day per kW of installed solar capacity. Summer follows closely with 6.36 kWh/day per kW, while autumn maintains good production at 5.95 kWh/day per kW. Even during the lowest production period in winter, the location still generates a respectable 5.41 kWh/day per kW. This seasonal pattern shows that Capim experiences its best solar generation during spring and summer months, making these periods ideal for maximizing energy harvest. The relatively modest drop in winter production indicates that solar installations remain viable and productive year-round. For optimal performance, fixed solar panel installations at this location should be tilted at 6 degrees toward the north. This specific angle has been calculated to maximize total year-round solar production by accounting for the sun's path throughout the year and the location's proximity to the equator.

Environmental and Weather Challenges

Several environmental factors in Capim could potentially impact solar energy production and require careful consideration during installation planning. The tropical climate brings distinct wet and dry seasons, with the rainy season presenting the most significant challenge. Heavy rainfall and increased cloud cover during wet periods can reduce solar irradiance and energy output. Additionally, frequent rain can lead to increased dust and debris accumulation on panel surfaces once the weather clears. High humidity levels, common in tropical regions, can create condensation issues and may accelerate corrosion of metal components if not properly addressed. The combination of heat and moisture also creates ideal conditions for biological growth, including algae and mold, which can form films on panel surfaces and reduce efficiency. Tropical storms and intense weather events pose another consideration, as they can bring high winds, heavy rains, and potential debris that could damage solar installations.

Preventative Measures and Installation Strategies

Several proven strategies can help maximize solar energy production and system longevity in Capim's tropical environment:

• Install panels with adequate spacing and ventilation to promote air circulation and reduce heat buildup
• Use marine-grade or tropical-rated mounting hardware and electrical components designed to resist corrosion
• Apply anti-reflective and hydrophobic coatings to panel surfaces to improve self-cleaning during rain
• Design mounting systems to withstand higher wind loads typical of tropical storm conditions
• Implement regular cleaning schedules, particularly during and after the dry season when dust accumulation peaks

Proper drainage design around solar installations prevents water pooling and reduces humidity-related issues. Installing monitoring systems helps identify performance drops quickly, allowing for prompt maintenance responses. The selection of high-quality inverters and electrical components rated for tropical conditions ensures reliable operation despite temperature and humidity fluctuations. Regular inspection and maintenance schedules become particularly important in this climate to address any biological growth or corrosion before they significantly impact performance. Despite these environmental considerations, Capim's strong and consistent solar resource makes it highly suitable for solar PV installations when proper planning and maintenance practices are implemented.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

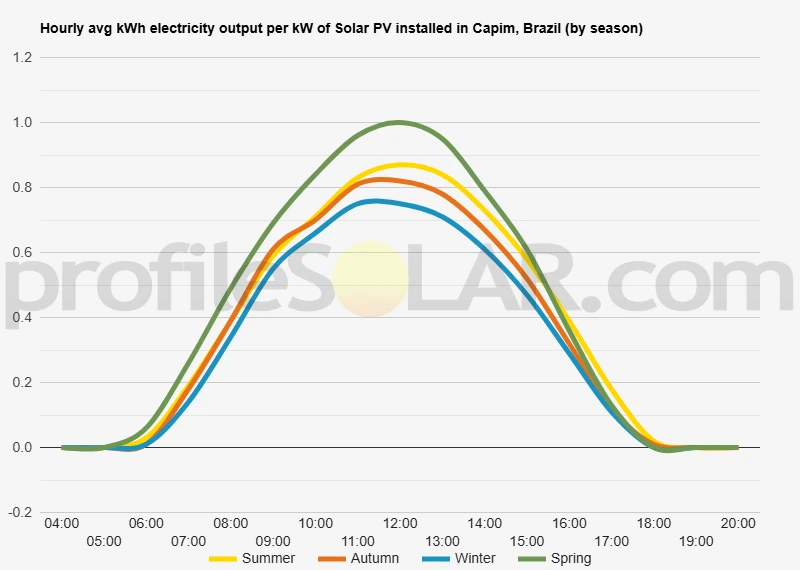

Solar output per kW of installed solar PV by season in Capim

Seasonal solar PV output for Latitude: -6.8915, Longitude: -35.183 (Capim, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 6° North in Capim, Brazil

To maximize your solar PV system's energy output in Capim, Brazil (Lat/Long -6.8915, -35.183) throughout the year, you should tilt your panels at an angle of 6° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Capim, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Capim, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 6° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° South in Summer	13° North in Autumn	23° North in Winter	1° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Capim, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Capim, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Capim, Brazil

Topographical Features Around Capim

Capim is located in the state of Paraíba in northeastern Brazil, situated within a region characterized by relatively gentle rolling terrain typical of the Brazilian Northeast's interior plateau. The landscape around this area features predominantly flat to gently undulating topography with elevations ranging from approximately 400 to 600 meters above sea level. The terrain consists of broad, open plains interspersed with low hills and shallow valleys, creating a landscape that is neither mountainous nor completely flat.

The region sits within the Borborema Plateau, an ancient geological formation that has been weathered over millions of years into relatively smooth, rounded landforms. Rocky outcrops and inselbergs (isolated hills rising abruptly from surrounding plains) occasionally punctuate the landscape, but these features are generally sparse and do not dominate the overall topographical character of the area.

The local drainage patterns are influenced by seasonal rainfall, with intermittent streams and small rivers cutting shallow channels through the landscape. These waterways typically flow in a generally eastward direction toward the Atlantic coast, creating subtle valleys that add gentle variation to the terrain without creating significant topographical obstacles.

Optimal Areas for Large-Scale Solar Development

The expansive flat and gently rolling plains extending to the north and northwest of Capim present the most favorable conditions for large-scale solar photovoltaic installations. These areas offer extensive stretches of relatively level ground with minimal topographical variation, which would significantly reduce site preparation costs and simplify the installation of solar panel arrays. The gentle slopes in these areas, typically less than 5 degrees, are actually beneficial for solar installations as they can provide optimal panel orientation while maintaining good drainage.

Areas to the east and southeast of Capim also show considerable promise for solar development, featuring similar flat terrain characteristics with the added advantage of being slightly more elevated, which can provide better air circulation and potentially improved panel cooling conditions. The higher elevation areas offer good visibility across the landscape and tend to have fewer obstacles such as vegetation or existing infrastructure.

The broad plateau areas extending westward from Capim represent another excellent zone for solar development. These regions combine favorable flat topography with good accessibility, as they are generally well-connected to existing road networks that could facilitate construction and maintenance activities. The stable geological foundation provided by the ancient Borborema Plateau bedrock offers excellent support for large solar installations.

Areas with rocky outcrops or inselbergs should generally be avoided for large-scale solar development, as these features create shading issues and complicate panel placement. Similarly, the shallow valleys and drainage channels, while not presenting major obstacles, would require additional consideration for proper water management and might be better utilized as buffer zones or access corridors within larger solar installations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
