Solar Energy Potential in Caraguatatuba, São Paulo, Brazil

Caraguatatuba, São Paulo, Brazil, located in the Southern Sub Tropics at coordinates -23.6302, -45.4911, offers promising conditions for solar energy generation throughout the year. The location experiences relatively consistent solar energy potential across seasons, though with notable seasonal variations. The solar PV output follows a predictable seasonal pattern, with the highest energy production occurring during summer months. During summer, each kilowatt of installed solar capacity can generate approximately 6.24 kWh per day. This drops slightly to 5.10 kWh per day during autumn and further decreases to 4.12 kWh per day in winter, which represents the annual low point for solar generation. Spring brings a recovery in solar potential with 5.20 kWh per day.

Seasonal Variations and Optimal Installation

For fixed solar panel installations in Caraguatatuba, São Paulo, the ideal tilt angle to maximize year-round energy production is 22 degrees facing North. This specific angle has been calculated to optimize the total annual solar energy capture based on the location's latitude and seasonal solar patterns. Summer and spring represent the most productive periods for solar generation in this location, making these seasons particularly valuable for energy production. While winter shows a notable decrease in daily output, the overall annual production remains favorable compared to many other global locations.

Environmental and Weather Considerations

Several environmental factors may impact solar production in Caraguatatuba:

• Coastal humidity and salt exposure: Being a coastal city, salt spray and high humidity levels can gradually degrade solar panel efficiency and electrical components.
• Seasonal rainfall: The region experiences significant precipitation, particularly during summer months, which can temporarily reduce solar output.
• Occasional tropical storms: The Atlantic coast of Brazil can experience severe weather events that may damage installations if not properly secured.

To mitigate these challenges, solar installations in Caraguatatuba should incorporate corrosion-resistant mounting hardware, marine-grade electrical components, and regular cleaning protocols to remove salt deposits. Additionally, robust mounting systems designed to withstand tropical storm conditions are advisable, as is the use of micro-inverters or power optimizers to minimize the impact of partial shading from clouds during rainy periods. Despite these considerations, Caraguatatuba's consistent solar resource throughout the year makes it a viable location for solar PV installations, with proper system design and maintenance practices in place.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

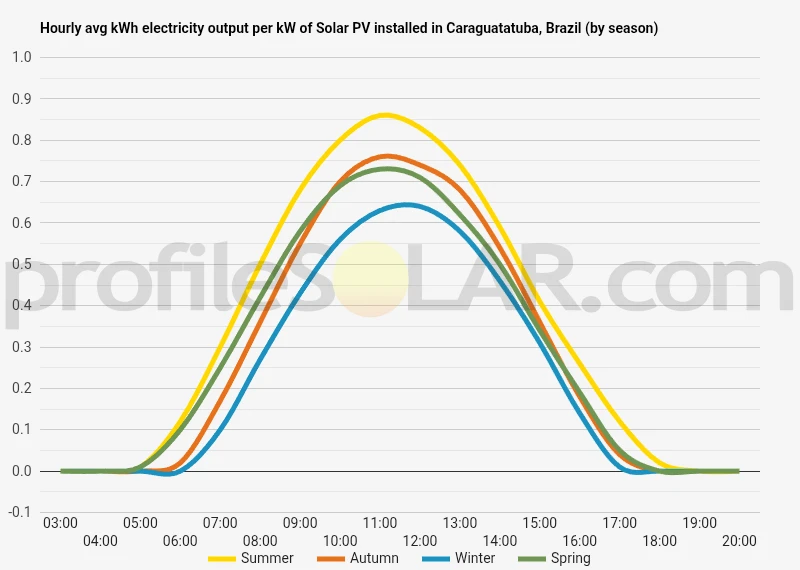

Solar output per kW of installed solar PV by season in Caraguatatuba

Seasonal solar PV output for Latitude: -23.6302, Longitude: -45.4911 (Caraguatatuba, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° North in Caraguatatuba, Brazil

To maximize your solar PV system's energy output in Caraguatatuba, Brazil (Lat/Long -23.6302, -45.4911) throughout the year, you should tilt your panels at an angle of 22° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Caraguatatuba, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Caraguatatuba, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° North in Summer	29° North in Autumn	39° North in Winter	17° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Caraguatatuba, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Caraguatatuba, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Caraguatatuba, Brazil

Caraguatatuba is a coastal city nestled in the São Paulo state of Brazil, characterized by a dramatic and varied topography. The landscape surrounding Caraguatatuba features a striking contrast between the Atlantic Ocean to the east and the imposing Serra do Mar mountain range to the west. This mountainous backdrop rises steeply from the coastal plain, creating a natural amphitheater that cradles the urban areas. The Serra do Mar mountains near Caraguatatuba reach elevations of over 800 meters in many places, with some peaks exceeding 1,000 meters. These mountains are densely covered with Atlantic Forest vegetation, a rich tropical rainforest ecosystem. The steep slopes of these mountains create numerous valleys, ravines, and watersheds that channel rainwater down to the coastal areas. Between the mountains and the ocean lies a relatively narrow coastal plain where most of the city's urban development is concentrated. This plain varies in width but is generally constrained by the proximity of the mountains to the shoreline. Several rivers flow through this coastal plain, including the Juqueriquerê, Santo Antônio, and Lagoa rivers, creating fertile alluvial areas but also zones susceptible to flooding during heavy rainfall events.

Solar PV Potential in the Region

For large-scale solar photovoltaic (PV) installations, the topographical considerations around Caraguatatuba present both challenges and opportunities. The most suitable areas would be found in the relatively flat portions of the coastal plain, particularly in the northern and southern extensions where the plain widens slightly. These areas offer the advantage of easier construction access and fewer shading issues from the mountainous terrain. The inland valleys between the mountain ridges might also offer potential sites, though these would need careful assessment for solar exposure throughout the day. Many of these valleys run in a roughly east-west orientation, which could potentially provide good exposure to the northern sun (important in the southern hemisphere for maximizing solar gain). Areas to avoid would include the steeper mountain slopes, not only because of construction difficulties but also due to environmental protections that cover much of the Serra do Mar range as part of conservation efforts for the Atlantic Forest biome. Additionally, the immediate coastal areas face challenges related to salt spray, which can accelerate corrosion of solar equipment, and potential flooding risks. The municipality of Paraibuna, located inland to the northwest of Caraguatatuba, features some more gently rolling terrain that might be more conducive to large-scale solar installations. Similarly, heading north toward Ubatuba or south toward São Sebastião, there are pockets where the coastal plain widens, potentially offering suitable locations for solar farms. Any large-scale solar development in this region would need to carefully balance land use considerations with environmental protections, as the area's natural beauty and ecological significance are major assets for the region's tourism economy and biodiversity conservation efforts.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
