Solar Energy Potential in Carangola, Minas Gerais, Brazil

Carangola, Minas Gerais, located in Brazil at latitude -20.7084 and longitude -42.1052, offers promising conditions for solar energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns, though with some seasonal variations between wet and dry periods rather than dramatic temperature shifts. The solar energy production potential shows moderate seasonal fluctuations. Summer months yield the highest output at 6.17 kWh per day for each kilowatt of installed capacity. Autumn follows with 5.53 kWh/day, while spring produces 5.30 kWh/day. Winter represents the lowest production period with 4.67 kWh/day per installed kilowatt. For maximum efficiency with fixed solar panel installations in Carangola, Minas Gerais, panels should be tilted at 20 degrees facing North. This specific angle has been calculated to optimize year-round solar energy capture based on Carangola's particular latitude and the seasonal solar elevation patterns.

Seasonal Considerations

The data reveals that summer (December-February) represents the prime solar generation period in Carangola. This makes sense given the increased solar radiation during these months when the sun's position is most favorable. The transition seasons of autumn (March-May) and spring (September-November) offer moderate but still substantial solar generation potential. Winter (June-August) shows approximately 24% less daily production compared to summer, but still maintains respectable output levels. This relatively modest seasonal variation is characteristic of tropical locations and represents an advantage for consistent year-round energy production compared to locations at higher latitudes.

Potential Challenges and Mitigation Strategies

Several environmental factors could potentially impact solar production in Carangola:

• Heavy rainfall during the wet season may reduce solar efficiency due to cloud cover and panel soiling. Installing panels at the optimal 20-degree tilt helps with natural cleaning during rains, while a regular cleaning schedule during dry periods can maximize efficiency.
• High humidity levels typical of tropical regions can accelerate degradation of electrical components. Using humidity-resistant equipment and proper sealing of electrical connections is essential.
• Potential dust accumulation during dry seasons can reduce panel efficiency. Automated cleaning systems or regular maintenance visits should be scheduled.
• Possible vegetation growth in this tropical climate could create shading issues. Regular site maintenance and strategic vegetation management around the installation area is recommended.

Despite these challenges, Carangola's solar potential remains quite favorable. The relatively minor seasonal variation in output (approximately 1.5 kWh/day difference between peak and low seasons) indicates that a properly designed solar PV system would provide relatively consistent energy production throughout the year, making it a viable renewable energy option for this location.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

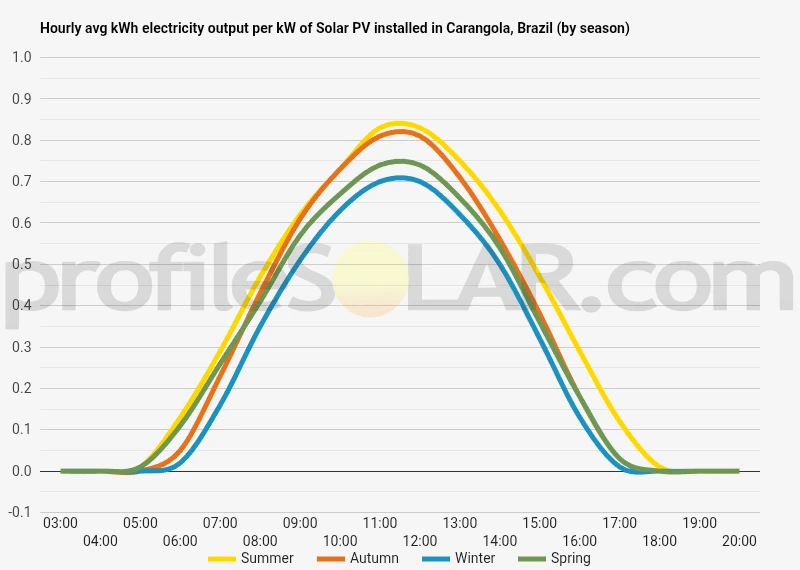

Solar output per kW of installed solar PV by season in Carangola

Seasonal solar PV output for Latitude: -20.7084, Longitude: -42.1052 (Carangola, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Carangola, Brazil

To maximize your solar PV system's energy output in Carangola, Brazil (Lat/Long -20.7084, -42.1052) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Carangola, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Carangola, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	26° North in Autumn	36° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Carangola, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Carangola, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Carangola, Brazil

The topography around Carangola, Brazil, is characterized by rolling hills and mountains as part of the broader Atlantic Forest region. Situated in the southeastern part of Minas Gerais state, the area features significant elevation changes with altitudes ranging from approximately 400 to 1200 meters above sea level. The landscape consists of undulating terrain with numerous valleys formed by rivers and streams that have carved through the topography over millennia. Carangola sits in a valley surrounded by higher terrain, with the most prominent mountains being part of the Serra da Mantiqueira mountain range, which extends through this region. This mountainous character creates a varied topography with slopes of different gradients throughout the area. The Rio Carangola flows through the region, creating fertile valleys amid the hillier sections.

Vegetation and Land Cover

The natural vegetation around Carangola consists primarily of Atlantic Forest remnants, though much of the original forest has been converted to agricultural use over centuries of settlement. The remaining forested areas tend to be concentrated on steeper slopes and higher elevations where farming is less practical. Lower and flatter areas have largely been transformed into pastures, coffee plantations, and other agricultural activities that define much of the local economy.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic installations, several factors must be considered beyond just solar radiation. The ideal areas around Carangola for such development would be: The northern and northeastern regions of Carangola offer more favorable conditions for solar PV deployment. These areas tend to have gentler slopes and more consistent exposure to sunlight throughout the day. Some plateaus and highland areas with relatively flat terrain would minimize the costs associated with land preparation and maximize the efficiency of panel placement. Areas with south-facing slopes should generally be avoided as they receive less direct sunlight in the Southern Hemisphere. Instead, north-facing gentle slopes with inclinations between 5 and 20 degrees would provide optimal natural orientation for solar panels without excessive grading requirements. The areas where agricultural productivity is lower, particularly in the drier upland zones with well-drained soils, could be repurposed for solar installations with minimal impact on food production. These zones often have sparser vegetation and require less clearing.

Topographical Challenges

The mountainous nature of the region does present certain challenges for large-scale solar development. The varied terrain means that some potential sites may require significant earthwork to create suitable foundations for solar arrays. Additionally, the numerous valleys can create shadowing effects during parts of the day, potentially reducing overall energy production. Access to these sites is another consideration, as the rugged topography may limit the existing road infrastructure needed for construction and maintenance of solar facilities. The higher elevation areas, while potentially receiving excellent solar exposure, might be more difficult to develop due to access limitations and increased wind loads on the panels. Despite these challenges, the region does offer substantial opportunities for solar PV development, particularly in the more gently sloping areas that balance good solar exposure with reasonable development costs. With careful site selection that considers both topographical and environmental factors, viable large-scale solar projects could be established in the vicinity of Carangola.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
