Solar Energy Potential in Cardoso Moreira, Rio de Janeiro, Brazil

Cardoso Moreira, Rio de Janeiro, Brazil, located in the tropics at latitude -21.5117 and longitude -41.4612, offers favorable conditions for solar energy production throughout the year. This location benefits from the tropical climate's consistent sunlight patterns, where seasonal changes are more defined by wet and dry periods rather than dramatic shifts in daylight duration. The solar energy production potential varies across seasons but remains relatively strong year-round. During summer months, solar panels can generate approximately 6.63 kWh per day for each kilowatt of installed capacity, representing the peak production period. Autumn sees a moderate decrease to 5.50 kWh per day, while winter production drops to the annual minimum of 4.55 kWh per day. As spring arrives, generation increases to 5.14 kWh per day.

Optimal Panel Installation

For fixed solar panel installations in Cardoso Moreira, Rio de Janeiro, the ideal tilt angle to maximize year-round energy production is 20 degrees facing North. This specific angle optimizes solar capture throughout the year, accounting for the location's position in the Southern Hemisphere and seasonal variations in sun position.

Seasonal Considerations

Summer (December-February) represents the prime period for solar generation, with production approximately 46% higher than during winter months. This makes summer an excellent time for energy-intensive activities or for storing excess energy if battery systems are available. The transition seasons of autumn and spring offer moderate production levels, with autumn slightly outperforming spring in this location. Even during winter (June-August), when production reaches its lowest point, the output remains substantial enough for reliable energy generation.

Environmental and Weather Challenges

Several factors could potentially impact solar production in Cardoso Moreira:

• Heavy rainfall during wet seasons may temporarily reduce solar efficiency due to cloud cover and panel soiling.
• High temperatures in summer can slightly decrease panel efficiency, as photovoltaic cells typically lose efficiency above certain temperature thresholds.
• Dust accumulation is a common issue in tropical regions, gradually reducing panel transparency and efficiency.

Preventative Measures

To maximize solar production despite these challenges, several preventative measures are recommended:

• Install panels with sufficient spacing and elevation to promote airflow and reduce operating temperatures.
• Implement regular cleaning schedules, particularly before and after the wet season, to remove dust and debris.
• Consider self-cleaning panel technologies or hydrophobic coatings to minimize maintenance requirements.
• Install a monitoring system to track performance and quickly identify any unexpected decreases in production.
• Use high-efficiency panels rated for tropical conditions that perform better in higher temperatures.

With proper installation and maintenance, Cardoso Moreira's consistent solar resource can provide reliable renewable energy throughout the year, with only moderate seasonal variations compared to locations at higher latitudes.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

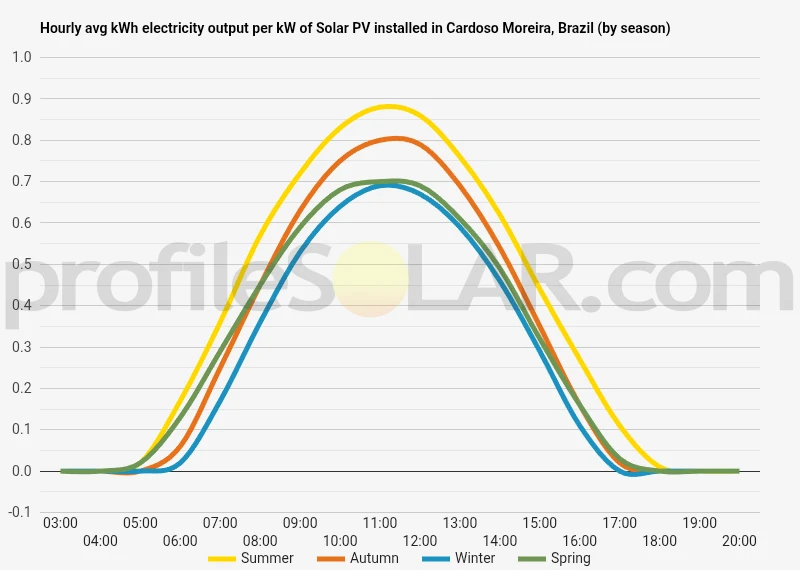

Solar output per kW of installed solar PV by season in Cardoso Moreira

Seasonal solar PV output for Latitude: -21.5117, Longitude: -41.4612 (Cardoso Moreira, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Cardoso Moreira, Brazil

To maximize your solar PV system's energy output in Cardoso Moreira, Brazil (Lat/Long -21.5117, -41.4612) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cardoso Moreira, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cardoso Moreira, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	27° North in Autumn	37° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cardoso Moreira, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cardoso Moreira, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cardoso Moreira, Brazil

The topography around Cardoso Moreira, Brazil presents a varied landscape characterized by undulating terrain, river valleys, and modest hills. Located in the northern part of Rio de Janeiro state, this municipality sits within the Paraíba do Sul River basin, one of the major waterways in southeastern Brazil.

Landscape Features

The region exhibits a transitional topography between the coastal lowlands and the more elevated interior highlands. Cardoso Moreira itself is situated at a relatively low elevation of approximately 25 meters above sea level. The terrain gradually rises as one moves away from the main river valley, with scattered hills reaching elevations of 100-300 meters in the surrounding countryside. The Paraíba do Sul River meanders through this landscape, creating fertile floodplains that have historically been utilized for agriculture. These flatter alluvial areas contrast with the more rugged terrain found at higher elevations. The municipality is dotted with smaller tributary streams and drainage channels that have carved shallow valleys throughout the region. The overall topographical pattern reflects the geological history of eastern Brazil, where ancient crystalline rock formations have weathered over millions of years, creating a landscape of gentle hills interspersed with broader valleys. The soil composition varies from fertile alluvial deposits near watercourses to less productive lateritic soils on hillsides.

Solar PV Potential Areas

The topographical characteristics of the Cardoso Moreira region offer several promising areas for large-scale solar photovoltaic development. The most suitable locations would include: The gently sloping hills that rise above the river valleys provide excellent sites for solar installations. These elevated areas typically have good drainage, reduced flood risk, and favorable sun exposure throughout the day. The north-facing slopes (in the Southern Hemisphere) would be particularly advantageous for maximizing solar radiation capture. The broader plateaus and flatter upland areas surrounding Cardoso Moreira present opportunities for extensive solar arrays. These locations often have minimal shading from surrounding terrain features and could accommodate larger installations with less need for extensive land grading. Former agricultural lands on the higher ground away from the river floodplains could be repurposed for solar development. These areas typically have existing access roads and may be less ecologically sensitive than undisturbed natural habitats. Areas to avoid would include the immediate floodplains of the Paraíba do Sul River and its tributaries, which face periodic inundation risks. Similarly, the steepest hillsides would present construction challenges and potential erosion concerns. The region's climate complements its topographical advantages for solar energy development. The area experiences a tropical climate with a dry season, providing abundant solar radiation potential throughout the year. The higher elevation sites would also benefit from slightly cooler temperatures compared to the valley floors, which can improve photovoltaic efficiency.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
