Carmo da Cachoeira, Brazil presents a very favorable location for year-round solar energy generation, with consistently strong solar output throughout all seasons. Located in the tropical region, this area benefits from abundant sunlight that varies relatively little between seasons compared to locations at higher latitudes.

Seasonal Solar Performance

The solar energy output at this location shows excellent consistency across the year. Summer delivers the highest production at 6.53 kWh per day per kW of installed capacity, while winter shows the lowest output at 5.08 kWh per day per kW. Spring and autumn fall in between at 5.97 and 5.70 kWh respectively. This relatively small variation between seasons makes it an ideal location for solar installations, as energy production remains reliable throughout the year. The optimal months for solar generation are during the summer period, though the difference between peak and minimum production is only about 28%. This consistency means that solar installations can provide dependable energy output regardless of the time of year, making it an excellent investment for both residential and commercial applications.

Optimal Panel Configuration

For maximum year-round energy production at Carmo da Cachoeira, solar panels should be installed at a fixed tilt angle of 20 degrees facing north. This angle has been calculated to optimize total annual solar collection by accounting for the sun's varying elevation throughout the year and weighting these angles based on solar irradiance data.

Environmental and Weather Considerations

Being located in a tropical climate zone, Carmo da Cachoeira does face several environmental factors that could potentially impact solar panel performance:

Seasonal Rainfall Patterns

The tropical climate typically brings distinct wet and dry seasons, with heavy rainfall during wet periods potentially reducing solar output temporarily. However, rain can also provide a beneficial cleaning effect on solar panels, washing away dust and debris that might otherwise accumulate and reduce efficiency.

Humidity and Moisture

High humidity levels common in tropical regions can lead to moisture-related issues with electrical components if not properly protected. This can potentially cause corrosion or electrical faults over time.

Dust and Vegetation

Tropical environments often have higher levels of airborne particles, pollen, and rapid vegetation growth that can create shading or debris accumulation on solar panels.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production at this location:

• Install panels with adequate ventilation underneath to prevent overheating and allow air circulation in the humid climate
• Use high-quality weatherproof electrical components and junction boxes specifically rated for tropical conditions
• Implement proper drainage systems to prevent water pooling around panel installations
• Schedule regular cleaning and maintenance, particularly after dust storms or heavy pollen seasons

• Ensure vegetation management around the installation site to prevent shading from growing trees or shrubs
• Consider anti-reflective coatings that also provide easier cleaning surfaces
• Install monitoring systems to quickly identify any performance drops due to environmental factors

Despite these considerations, the consistent solar resource and relatively minor seasonal variation make Carmo da Cachoeira an excellent location for solar energy generation. With proper installation techniques and regular maintenance, solar installations at this location can achieve very high performance levels throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

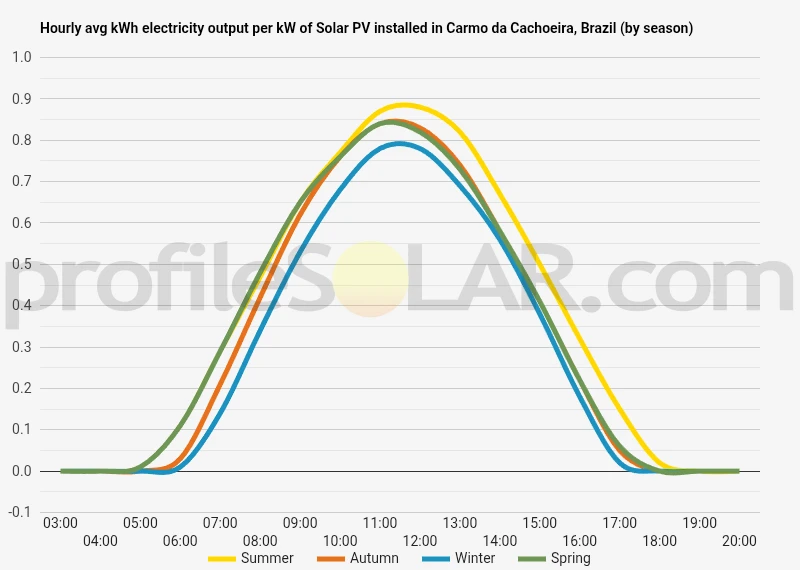

Solar output per kW of installed solar PV by season in Carmo Da Cachoeira

Seasonal solar PV output for Latitude: -21.4316, Longitude: -45.1766 (Carmo Da Cachoeira, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Carmo Da Cachoeira, Brazil

To maximize your solar PV system's energy output in Carmo Da Cachoeira, Brazil (Lat/Long -21.4316, -45.1766) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Carmo Da Cachoeira, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Carmo Da Cachoeira, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	27° North in Autumn	37° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Carmo Da Cachoeira, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Carmo Da Cachoeira, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Carmo Da Cachoeira, Brazil

Topographical Features of Carmo da Cachoeira

Carmo da Cachoeira sits within the mountainous terrain of southern Minas Gerais state, positioned in the Serra da Mantiqueira mountain range. This region is characterized by rolling hills, steep valleys, and elevated plateaus that create a dramatically varied landscape. The town itself rests at a considerable elevation, surrounded by peaks and ridges that form part of the broader Atlantic Plateau system.

The local topography features a mix of gentle slopes and more pronounced inclines, with numerous small streams and tributaries cutting through the terrain as they make their way toward larger waterways. The area's name, which translates to "Carmo of the Waterfall," reflects the presence of cascading water features that are common throughout this mountainous region. Dense Atlantic Forest vegetation covers much of the steeper terrain, while cleared areas on gentler slopes have been converted to agricultural use and pastureland.

The landscape is punctuated by granite outcroppings and rocky formations typical of the Brazilian Highlands. Valleys between the hills often contain fertile soils that support farming activities, while the higher elevations experience cooler temperatures and different vegetation patterns compared to the surrounding lowlands.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations would be found on the broader plateau areas and gentler hillsides to the east and southeast of Carmo da Cachoeira. These areas typically offer more consistent terrain with moderate slopes that can accommodate large arrays while maintaining optimal panel orientation. The elevated plateaus provide excellent exposure to solar radiation throughout the day, with minimal shading from surrounding topographical features.

Agricultural areas with established road access would be particularly well-suited for solar development, as the existing infrastructure reduces installation costs and the relatively flat or gently rolling farmland requires minimal grading. Areas that have been previously cleared for cattle ranching present additional opportunities, especially those on south-facing slopes that can maximize solar exposure.

The region's higher elevation locations, while offering excellent solar exposure, may present challenges due to steeper terrain and limited access. However, some of the elevated plateaus could support solar installations if proper access roads can be established. Areas closer to existing transmission infrastructure would be most economically viable for grid-connected solar farms.

Developers should focus on locations with minimal forest cover to avoid environmental concerns, adequate water access for panel cleaning and maintenance, and proximity to transportation networks. The gentler terrain found in the agricultural valleys, particularly those oriented to capture maximum solar exposure throughout the day, would likely provide the best combination of technical feasibility and economic viability for large-scale solar photovoltaic projects.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]
