Carmo de Minas, Brazil presents a good location for year-round solar energy generation, with consistent production capabilities throughout all seasons. Located in the tropical region at coordinates -22.0892, -45.1538, this area benefits from relatively stable sunlight availability across the calendar year.

Seasonal Solar Production Performance

The solar energy output at Carmo de Minas shows moderate seasonal variation, with summer delivering the highest production at 6.26 kWh per day per kW of installed capacity. Spring follows as the second-best season with 5.75 kWh/day per kW, while autumn generates 5.38 kWh/day per kW. Winter shows the lowest output at 4.82 kWh/day per kW, though this still represents a respectable production level. Summer and spring emerge as the ideal times for solar generation at this location, offering approximately 23% more energy production compared to the winter months. The relatively small gap between the highest and lowest producing seasons indicates that solar panels will maintain reasonable efficiency year-round.

Optimal Panel Installation

For maximum year-round energy production at Carmo de Minas, solar panels should be installed at a fixed tilt angle of 21 degrees facing north. This angle has been calculated by analyzing daily solar elevation patterns, optimal panel positioning, and weighting these factors against actual solar irradiance data throughout the year, accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several local factors at Carmo de Minas could potentially impact solar energy production and require consideration during installation:

• Tropical rainfall patterns: The region experiences distinct wet and dry seasons typical of tropical climates, with heavy rainfall during wet periods that can reduce solar irradiance and create clouding
• High humidity levels: Tropical conditions often bring elevated humidity that can affect panel efficiency and create condensation issues
• Dust and debris accumulation: Dry season conditions may lead to dust buildup on panel surfaces
• Temperature effects: Tropical heat can reduce panel efficiency as photovoltaic cells become less effective at higher temperatures

Preventative Measures for Enhanced Production

To maximize solar energy production despite these environmental challenges, several installation strategies should be implemented: Proper panel spacing and mounting systems should allow adequate airflow underneath panels to reduce heat buildup and improve cooling efficiency. Installing panels with sufficient tilt helps facilitate natural cleaning during rainfall while preventing water pooling. Regular maintenance schedules become crucial, particularly cleaning panels after dry periods to remove accumulated dust and debris. Using anti-reflective coatings and selecting panels with better temperature coefficients can help maintain efficiency during hot weather. Drainage systems should be incorporated into the installation design to handle heavy tropical rainfall effectively. Additionally, choosing corrosion-resistant mounting hardware and electrical components helps ensure long-term performance in the humid tropical environment. Despite these environmental considerations, Carmo de Minas remains a viable location for solar energy generation, with the preventative measures outlined above helping to maintain optimal performance throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

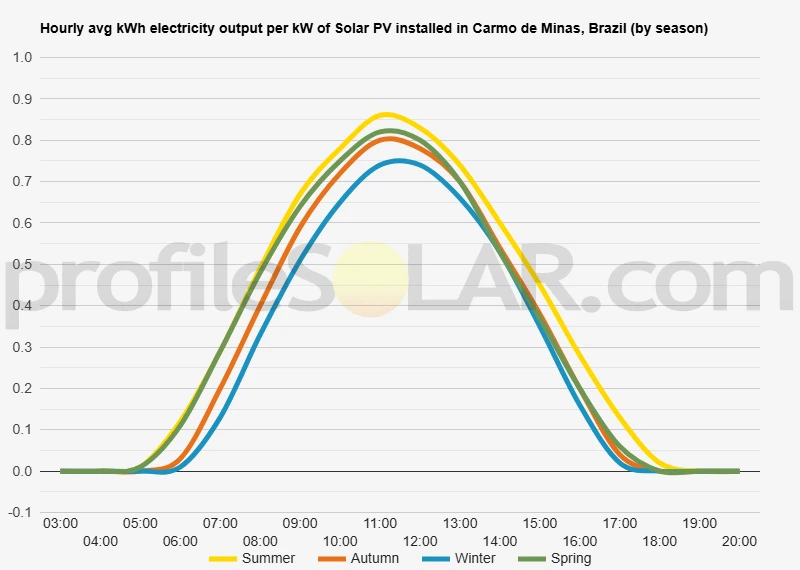

Solar output per kW of installed solar PV by season in Carmo De Minas

Seasonal solar PV output for Latitude: -22.0892, Longitude: -45.1538 (Carmo De Minas, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Carmo De Minas, Brazil

To maximize your solar PV system's energy output in Carmo De Minas, Brazil (Lat/Long -22.0892, -45.1538) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Carmo De Minas, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Carmo De Minas, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Carmo De Minas, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Carmo De Minas, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Carmo De Minas, Brazil

Topographical Features of Carmo de Minas

Carmo de Minas sits in the mountainous region of southern Minas Gerais state, nestled within the Serra da Mantiqueira mountain range. This area is characterized by rolling hills, steep valleys, and elevated plateaus that create a dramatically varied landscape. The terrain rises and falls significantly across short distances, with elevations ranging from approximately 800 meters to over 1,500 meters above sea level in the immediate vicinity.

The region's topography is dominated by ancient geological formations that have been shaped by millions of years of erosion. Deep valleys cut through the landscape, often following the paths of small rivers and streams that drain toward larger waterways. These valleys are typically narrow with steep sides, while the higher elevations feature more gently rolling terrain interspersed with rocky outcrops and exposed granite formations.

The local climate and topography have created an environment well-suited to coffee cultivation, which is evident in the terraced hillsides and agricultural terraces that have been carved into many of the slopes. The mountainous terrain creates distinct microclimates, with significant temperature variations between valley floors and ridge tops.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Carmo de Minas area would be the elevated plateaus and gently sloping highland areas that offer relatively flat or consistently graded terrain. These areas, typically found at elevations between 1,000 and 1,400 meters, provide the stable ground conditions necessary for mounting large arrays of solar panels while minimizing the engineering challenges associated with steep slopes.

The highland plateaus northeast and southwest of the town center present particularly favorable conditions. These areas feature gradual slopes that face generally northward, which is ideal for solar panel orientation in the Southern Hemisphere. The terrain in these locations is less dissected by deep valleys and offers larger contiguous areas of suitable land.

Areas to avoid for solar development include the steep valley walls and deeply incised drainage areas that characterize much of the immediate surroundings. These locations present significant challenges for construction and maintenance access, and the irregular terrain would require extensive grading and terracing that could prove economically unfeasible.

The agricultural terraces that currently exist on many hillsides, while demonstrating that the slopes can be modified for productive use, are generally too small and fragmented for large-scale solar installations. However, some of the broader agricultural areas on gentler slopes could potentially be suitable for solar development, particularly those that have been previously cleared and leveled for farming operations.

Transportation access is another crucial factor in this mountainous region. The most viable solar development sites would be those accessible via existing road networks without requiring extensive new infrastructure. Areas within reasonable distance of the main highways that connect Carmo de Minas to larger population centers would be preferred for their proximity to electrical grid connections and maintenance access.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
