Solar Energy Potential at Carmo do Cajuru, Brazil

Carmo do Cajuru, Brazil offers a promising location for solar PV energy generation throughout the year. Located in the tropics at latitude -20.1878 and longitude -44.714, this site benefits from relatively consistent sunlight patterns that make it suitable for solar energy production across all seasons. The seasonal electricity generation potential shows good year-round performance. During summer, panels can produce approximately 6.37kWh per day for each kilowatt of installed capacity, making this the most productive season. Spring follows with 5.97kWh/day, while autumn yields about 5.77kWh/day per installed kilowatt. Winter shows the lowest but still respectable output at 5.16kWh/day. For fixed solar panel installations at this location, the ideal tilt angle to maximize year-round energy production is 19 degrees facing North. This specific angle has been calculated to optimize solar collection across the changing seasons, accounting for the Earth's elliptical orbit and the site's tropical latitude.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production at this location:

• Seasonal rainfall patterns during the wet season may reduce solar efficiency due to cloud cover and precipitation
• Dust accumulation, particularly during dry periods, can gradually decrease panel efficiency if not addressed
• High temperatures during summer months may slightly reduce panel efficiency, as solar panels typically perform better in cooler conditions

To mitigate these challenges, several preventative measures can be implemented. Regular cleaning schedules should be established to remove dust accumulation, particularly following dry, dusty periods. Installing panels with sufficient elevation from the ground can reduce dust buildup and allow for natural cleaning during rainfall events. Additionally, ensuring adequate ventilation behind panels can help manage temperature-related efficiency losses. Using high-quality panels with better heat tolerance specifications would be beneficial for this tropical location where temperatures can be consistently high. The relatively minor seasonal variation in solar output suggests that a fixed-angle installation at 19 degrees North is a cost-effective approach, though tracking systems could capture additional energy if economically feasible for the specific project requirements.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

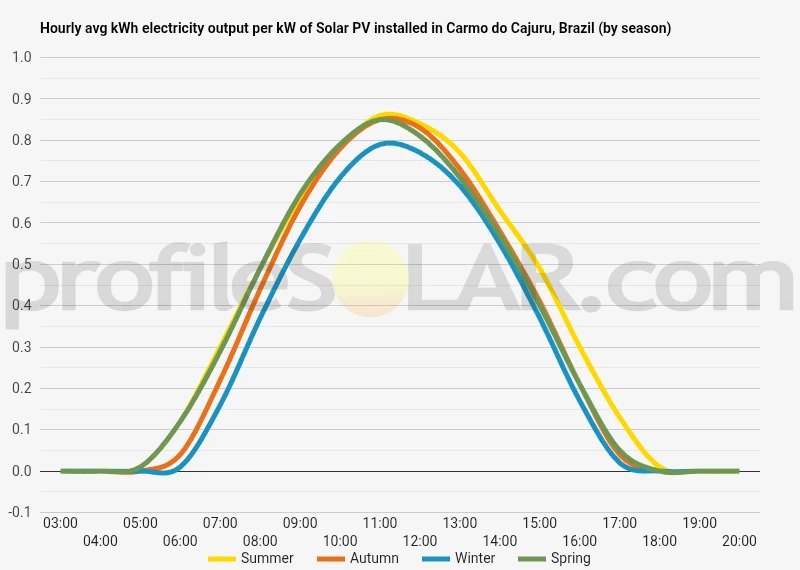

Solar output per kW of installed solar PV by season in Carmo Do Cajuru

Seasonal solar PV output for Latitude: -20.1878, Longitude: -44.714 (Carmo Do Cajuru, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Carmo Do Cajuru, Brazil

To maximize your solar PV system's energy output in Carmo Do Cajuru, Brazil (Lat/Long -20.1878, -44.714) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Carmo Do Cajuru, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Carmo Do Cajuru, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	26° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Carmo Do Cajuru, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Carmo Do Cajuru, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Carmo Do Cajuru, Brazil

Topography of Carmo do Cajuru

Carmo do Cajuru is situated in the state of Minas Gerais in southeastern Brazil, characterized by a diverse and undulating topography. The landscape around this municipality features rolling hills, gentle valleys, and moderate elevations typical of Brazil's interior highlands. The region sits within the broader Brazilian Highlands (Planalto Brasileiro), which dominate much of the country's interior. The terrain generally consists of rounded hills with moderate slopes rather than dramatic mountains or flat plains. Elevations in the area typically range between 750 and 950 meters above sea level, creating a gently undulating landscape. This topographical profile is part of the larger geomorphological unit known as the "Mares de Morros" (Sea of Hills), which is characteristic of southeastern Brazil. Several water bodies influence the local topography, with the Pará River being a significant feature in the region. The river and its tributaries have carved shallow valleys throughout the area, creating natural drainage systems. These waterways have shaped the landscape over millennia, resulting in the current pattern of hills and valleys. The natural vegetation in the region would historically have been a transition zone between the Atlantic Forest and Cerrado biomes, though much of the original vegetation has been modified through agricultural development and urbanization.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, several factors related to the local topography make certain areas around Carmo do Cajuru particularly suitable. The most promising locations would be: The north-facing hillsides (in the Southern Hemisphere, north-facing slopes receive more solar radiation) with gentle to moderate gradients are ideal candidates for solar farms. These areas benefit from optimal sun exposure throughout the day and year while avoiding the shadowing effects that can occur in valleys or on south-facing slopes. Elevated plateaus and hilltops around Carmo do Cajuru offer excellent potential for solar installations. These higher elevation areas typically experience less atmospheric interference and fewer obstructions that could cast shadows. The relatively flat tops of many hills in the region provide stable foundations for large-scale installations without requiring extensive grading. Areas with minimal vegetation cover or those already cleared for agriculture represent practical opportunities for solar development. The gently rolling terrain that has been previously modified for farming can often be repurposed for solar farms with minimal additional land preparation. Regions away from the immediate river valleys would be preferable to avoid potential flooding concerns and to maximize sun exposure. While the valleys offer flat terrain, they may experience more morning fog or mist that could temporarily reduce solar efficiency. The southwestern portions of the municipality, which tend to have slightly lower rainfall patterns compared to areas further east toward the Atlantic, might offer marginally better conditions for consistent solar production. The ideal solar PV locations would combine these topographical advantages with proximity to existing electrical infrastructure and transportation networks, which are important practical considerations for large-scale energy projects. The moderately developed nature of the region suggests that such infrastructure connections may be available near the larger settlements without requiring extensive new construction.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
