Carnaubal, Ceará, Brazil presents an excellent location for year-round solar energy generation, with its tropical climate providing consistent sunlight throughout the year rather than the traditional four-season variations found in temperate regions.

Solar Energy Production Potential

The solar energy output data for Carnaubal demonstrates strong and reliable performance across all seasons. Winter produces the highest energy output at 6.38 kWh per day per kW of installed solar capacity, while spring delivers the peak performance at 6.98 kWh per day per kW. Summer and autumn maintain solid production levels at 5.91 kWh and 5.98 kWh per day per kW respectively. Spring emerges as the ideal time for solar generation at this location, followed closely by winter. This pattern is typical for locations in the Southern Hemisphere tropics, where the sun's angle during these periods optimizes energy capture. For maximum year-round energy production, solar panels should be installed at a fixed tilt angle of 4 degrees facing North. This shallow angle reflects the location's proximity to the equator, where the sun travels high overhead throughout the year.

Environmental and Weather Challenges

Several factors could potentially impact solar energy production in Carnaubal's tropical environment:

• High humidity and frequent rainfall during wet seasons can reduce solar irradiance and create challenges for equipment maintenance
• Dust and debris accumulation on panels, particularly during dry periods when winds carry particles across the landscape
• Intense tropical storms and heavy downpours that could damage equipment or create temporary shading from cloud cover
• High temperatures that can reduce panel efficiency, as photovoltaic cells perform less efficiently in extreme heat

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered. Regular cleaning schedules become essential, with automated washing systems or accessible panel designs that allow for frequent maintenance during dusty periods. Proper ventilation around solar panels helps combat the efficiency losses from high temperatures. Installing panels with adequate spacing beneath them allows air circulation to keep temperatures manageable. Robust mounting systems designed to withstand tropical storms and heavy rainfall ensure long-term reliability. Using corrosion-resistant materials becomes particularly important in the humid tropical environment. Investing in high-quality inverters and electrical components rated for tropical conditions helps maintain system performance over time. Additionally, incorporating monitoring systems allows for quick identification and resolution of any weather-related performance issues. Despite these considerations, Carnaubal's consistent solar output throughout the year makes it a highly favorable location for solar energy investment, with the preventative measures representing standard best practices rather than deal-breaking obstacles.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

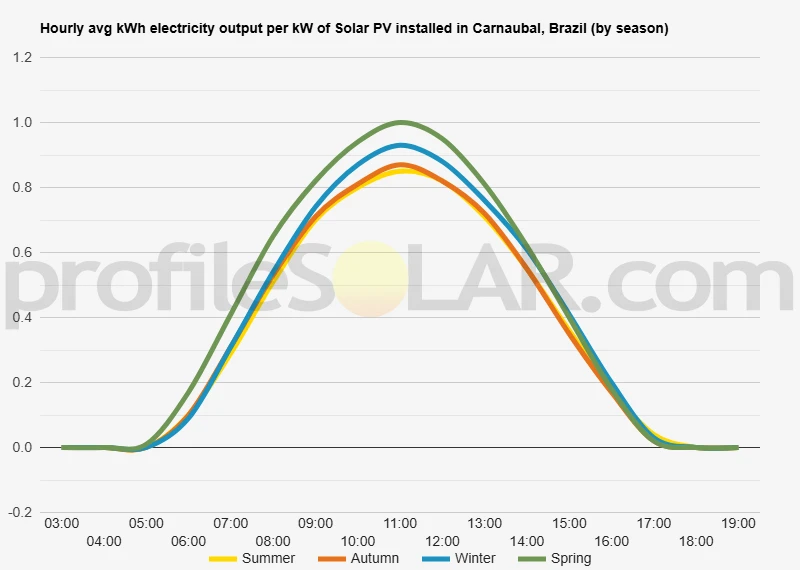

Solar output per kW of installed solar PV by season in Carnaubal

Seasonal solar PV output for Latitude: -4.1196, Longitude: -41.0102 (Carnaubal, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 4° North in Carnaubal, Brazil

To maximize your solar PV system's energy output in Carnaubal, Brazil (Lat/Long -4.1196, -41.0102) throughout the year, you should tilt your panels at an angle of 4° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Carnaubal, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Carnaubal, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 4° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	11° North in Autumn	20° North in Winter	2° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Carnaubal, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Carnaubal, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Carnaubal, Brazil

Topographical Features of the Carnaubal Region

The area surrounding Carnaubal in Brazil's Piauí state is characterized by gently rolling terrain typical of the Brazilian Caatinga biome. This semi-arid landscape features relatively low elevation variations, with the terrain gradually undulating across broad, shallow valleys and modest ridges. The topography is generally favorable for development projects, as steep slopes and dramatic elevation changes are uncommon in this region. The landscape is dominated by sedimentary formations that create a stable geological foundation. These formations have weathered over millennia to produce the characteristic gentle hills and wide, flat-bottomed valleys that define much of the interior Northeast Brazil. The terrain slopes very gradually, creating natural drainage patterns that flow toward larger river systems in the region. Vegetation in the area consists primarily of Caatinga scrubland, featuring drought-resistant trees, shrubs, and cacti adapted to the semi-arid climate. This sparse vegetation coverage means that large areas of relatively open land are available, with minimal tree clearing required for development projects. The soil composition varies from sandy to clay-rich deposits, depending on local drainage patterns and geological history.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be the broader valley floors and gentle ridge tops that characterize this region. These areas offer several key advantages for solar development, including relatively flat terrain that minimizes grading and construction costs while maximizing panel efficiency through optimal positioning. The wide valley floors present particularly attractive development opportunities because they provide large contiguous areas with minimal slope variation. These locations typically have good accessibility for construction equipment and ongoing maintenance operations. The stable sedimentary geology underlying these valleys also provides excellent foundation conditions for solar mounting systems. Ridge tops and gentle hillsides with southern exposure would also be well-suited for solar installations, particularly where the terrain maintains consistent gradients without significant undulations. These elevated positions often benefit from improved air circulation, which can help maintain optimal operating temperatures for photovoltaic panels. Areas with existing road access or proximity to transmission infrastructure would be especially valuable for large-scale development. The relatively sparse population density in this region means that extensive tracts of suitable land are potentially available without significant residential or agricultural conflicts. The combination of stable geology, gentle topography, sparse vegetation, and ample open space makes the Carnaubal region particularly well-positioned for utility-scale solar development across multiple sites of varying sizes.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
