Casca, Rio Grande do Sul, Brazil presents a moderately favorable location for year-round solar photovoltaic energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropics location varies considerably throughout the year. Summer delivers the strongest performance at 7.15 kWh per day per kW of installed capacity, making it an excellent time for solar generation. Spring follows as the second-best season with 5.90 kWh per day per kW, providing solid energy production. Autumn sees a notable decline to 4.83 kWh per day per kW, while winter presents the most challenging period with only 3.55 kWh per day per kW of installed solar capacity. This represents a 50% drop from summer peak performance, which is typical for locations in the Southern Hemisphere's subtropical regions.

Optimal Installation Configuration

For maximum year-round energy production at Casca, Rio Grande do Sul, solar panels should be installed at a fixed tilt angle of 25 degrees facing North. This angle has been calculated using weighted daily solar elevation angles and NASA solar irradiance data to account for Earth's elliptical orbit and maximize total annual output.

Environmental and Weather Considerations

Several local factors could potentially impact solar energy production at this location:

• Subtropical humidity levels may lead to increased moisture and potential condensation on panels, reducing efficiency
• Seasonal rainfall patterns typical of Southern Brazil could result in extended cloudy periods, particularly during autumn and winter months
• Dust and pollen accumulation from surrounding vegetation may reduce panel performance over time
• Potential for severe weather events including hailstorms that could damage solar installations

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Install panels with adequate ventilation spacing to reduce moisture buildup and improve cooling
• Implement regular cleaning schedules, particularly during dry seasons when dust accumulation is highest
• Use tempered glass panels with anti-reflective coatings designed for humid subtropical climates
• Consider impact-resistant panels and proper mounting systems to withstand potential hail damage
• Ensure proper drainage around installations to prevent water pooling during heavy rainfall periods

The location offers reasonable solar potential, particularly during the warmer months, but the significant winter reduction in output means system sizing should account for seasonal variations in energy production.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

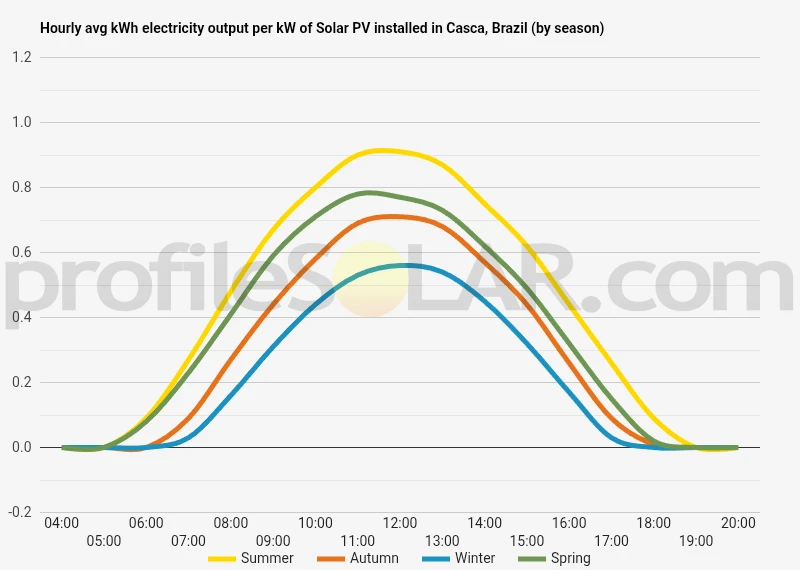

Solar output per kW of installed solar PV by season in Casca

Seasonal solar PV output for Latitude: -28.5759, Longitude: -51.9198 (Casca, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Casca, Brazil

To maximize your solar PV system's energy output in Casca, Brazil (Lat/Long -28.5759, -51.9198) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Casca, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Casca, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° North in Summer	34° North in Autumn	44° North in Winter	21° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Casca, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Casca, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Casca, Brazil

Topographical Features Around Casca

Casca is located in the northern region of Rio Grande do Sul state in southern Brazil, positioned within the Serra Gaúcha region. The area sits at an elevation of approximately 700 meters above sea level, nestled among the rolling hills and plateaus that characterize this part of the Brazilian highlands. The topography here is dominated by gentle to moderate slopes, with the landscape shaped by ancient geological processes that created a series of undulating hills and broad valleys.

The terrain around Casca features a mix of agricultural lands, pastures, and remaining fragments of Atlantic Forest. The region experiences a subtropical highland climate, with the elevation providing cooler temperatures than the coastal areas. The landscape is generally well-drained, with numerous small streams and tributaries flowing through the valleys, eventually making their way to larger river systems.

The surrounding countryside is characterized by a patchwork of small to medium-sized properties, typical of the European immigrant settlement patterns that shaped this region's development. The topography includes both cultivated fields on the gentler slopes and steeper areas that remain forested or are used for livestock grazing.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Casca would be the broader plateau areas and gentle south-facing slopes that offer relatively flat or mildly undulating terrain. These areas provide the stable foundation necessary for mounting large arrays of solar panels while minimizing the need for extensive ground preparation or terracing.

The agricultural lands on the wider valley floors present excellent opportunities for solar development, particularly areas that are currently used for pasture or less intensive farming operations. These locations typically offer good access to existing road networks and electrical infrastructure, which is crucial for connecting solar installations to the regional power grid.

The elevated plateaus to the east and west of the town center would be particularly well-suited for solar installations due to their relatively flat topography and reduced shading from surrounding hills. These areas also tend to have good natural drainage, which helps prevent water accumulation around solar equipment and reduces maintenance requirements.

Areas with gentle gradients of less than 10 degrees would be ideal, as they allow for optimal panel positioning while maintaining cost-effective installation procedures. The open agricultural lands that stretch across the broader valleys provide the best combination of suitable topography, accessibility, and minimal environmental impact for large-scale solar development.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
