Casimiro de Abreu, Brazil presents a moderately good location for year-round solar energy generation, though it experiences significant seasonal variation in solar output. Located in the tropical region where sunlight remains fairly consistent throughout the year, this area shows the typical wet and dry seasonal patterns rather than traditional temperature-based seasons.

Seasonal Solar Performance

The solar energy production at this location varies considerably across the seasons. Summer delivers the strongest performance at 6.39 kWh per day per kW of installed solar capacity, making it the ideal time for maximum energy generation. Spring follows as the second-best season with 4.90 kWh per day per kW, while autumn produces 5.19 kWh per day per kW. Winter shows the lowest output at 4.24 kWh per day per kW of installed capacity. For optimal year-round energy production from a fixed panel installation at this location, solar panels should be tilted at 21 degrees facing north. This angle maximizes the total annual solar output by accounting for the sun's path throughout the year and the area's specific latitude.

Environmental and Weather Challenges

Several local factors could significantly impact solar energy production in Casimiro de Abreu. The tropical climate brings substantial rainfall during wet seasons, which can reduce solar irradiance and create cloud cover that blocks sunlight from reaching the panels. High humidity levels common in tropical regions can also affect panel efficiency and create moisture-related issues. The coastal proximity of this region may expose solar installations to salt air and corrosive marine environments, which can damage panel surfaces and mounting equipment over time. Additionally, tropical areas often experience intense storms and high winds that could potentially damage solar installations.

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies can be employed:

• Install panels with anti-reflective and self-cleaning coatings to minimize the impact of dust and water spots from frequent rainfall
• Use corrosion-resistant mounting systems made from marine-grade materials to withstand salt air exposure
• Ensure proper drainage and ventilation around panel installations to prevent moisture buildup and maintain optimal operating temperatures
• Design mounting systems to withstand high wind loads typical of tropical storm conditions
• Implement regular cleaning and maintenance schedules to remove accumulated debris, salt deposits, and organic growth that can reduce panel efficiency

Despite these challenges, the consistent tropical sunlight and relatively good seasonal output make Casimiro de Abreu a viable location for solar energy generation with proper planning and installation techniques.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

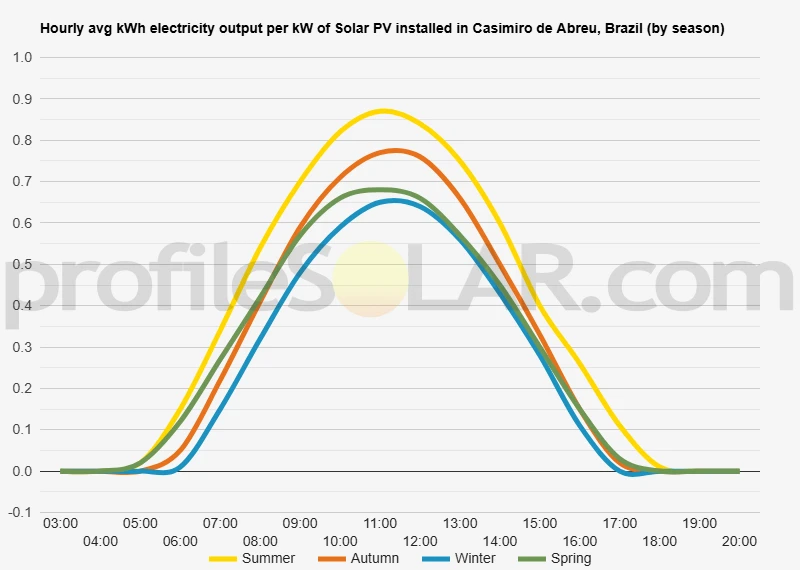

Solar output per kW of installed solar PV by season in Casimiro De Abreu

Seasonal solar PV output for Latitude: -22.4857, Longitude: -42.147 (Casimiro De Abreu, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Casimiro De Abreu, Brazil

To maximize your solar PV system's energy output in Casimiro De Abreu, Brazil (Lat/Long -22.4857, -42.147) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Casimiro De Abreu, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Casimiro De Abreu, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Casimiro De Abreu, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Casimiro De Abreu, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Casimiro De Abreu, Brazil

Topographical Features of Casimiro de Abreu Region

Casimiro de Abreu sits in the coastal lowlands of Rio de Janeiro state, positioned between the Atlantic Ocean to the south and the rolling hills of the Serra do Mar mountain range to the north. The immediate area around the municipality features relatively flat to gently undulating terrain, with elevations typically ranging from sea level to approximately 200 meters above sea level. This coastal plain extends inland for several kilometers before gradually rising toward the more mountainous interior regions.

The landscape is characterized by a mix of agricultural lands, scattered urban development, and remnant Atlantic Forest vegetation. Small streams and rivers meander through the area, flowing generally southward toward the Atlantic coast. The terrain becomes increasingly hilly as one moves northward from the municipality center, transitioning into the foothills of the Serra do Mar range.

To the east and west of Casimiro de Abreu, the topography remains relatively consistent with the broader coastal plain pattern, featuring gentle slopes and occasional low hills. The soil composition varies from sandy coastal soils near the ocean to more clay-rich soils further inland, reflecting the geological transition from marine sediments to continental deposits.

Optimal Areas for Large-Scale Solar Development

The most suitable areas for large-scale solar photovoltaic installations would be found on the flatter portions of the coastal plain, particularly in the southern and southwestern sections of the region. These areas offer several advantages including minimal grading requirements, reduced installation costs, and easier access for construction and maintenance equipment. The relatively level terrain would allow for optimal panel positioning and spacing while minimizing shading between panel rows.

Areas with gentle south-facing slopes in the region could also prove beneficial for solar installations, as they would naturally orient panels toward the sun's path across the sky. However, the predominantly flat coastal plain areas would likely be more cost-effective for large-scale development due to simpler engineering requirements and reduced earthwork needs.

The agricultural lands surrounding Casimiro de Abreu present potential opportunities for solar development, particularly areas that are currently used for less intensive farming or grazing. These locations often have existing road access and electrical infrastructure nearby, which would reduce development costs. Areas closer to existing transmission lines and substations would be particularly attractive for large-scale solar projects.

Developers should avoid the steeper terrain to the north near the Serra do Mar foothills, as these areas would require significant site preparation and could face challenges with drainage and erosion control. Similarly, areas too close to the coast might face increased maintenance challenges due to salt air exposure, though this concern diminishes rapidly with distance from the shoreline.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
