Castanheira, Mato Grosso, Brazil represents an excellent location for year-round solar photovoltaic energy generation. Located in the tropical region at coordinates -10.8793, -58.651, this area benefits from the consistent sunlight patterns typical of tropical climates, where seasonal variations are primarily distinguished by wet and dry periods rather than dramatic temperature changes.

Seasonal Solar Performance

The solar energy output at Castanheira varies moderately throughout the year, with winter providing the highest generation potential. During winter months, solar panels can produce 6.03 kWh per day per kW of installed capacity, making this the optimal season for solar energy generation. Spring follows closely with 5.85 kWh per day per kW, while autumn generates 5.40 kWh per day per kW. Summer shows the lowest output at 4.94 kWh per day per kW, though this figure still represents strong solar potential. The relatively high and consistent output across all seasons makes Castanheira particularly attractive for solar installations, as there are no extended periods of poor solar generation that might require significant backup power systems.

Optimal Panel Configuration

For fixed panel installations at this location, the ideal tilt angle to maximize total year-round solar production is 12 degrees facing North. This angle is calculated by analyzing daily solar elevation angles at the latitude, determining optimal panel tilt for each day, and weighting these angles based on solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several local factors could potentially impact solar production efficiency at Castanheira:

• Heavy rainfall during wet season: Extended periods of cloud cover and rain can significantly reduce solar irradiance
• High humidity levels: Tropical humidity can lead to moisture-related equipment issues and reduced panel efficiency
• Dust and debris accumulation: Dry season conditions may cause dust buildup on panel surfaces
• Extreme heat: High temperatures can reduce photovoltaic cell efficiency

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Elevated mounting systems: Install panels with adequate ground clearance to improve air circulation and reduce heat buildup
• Quality weatherproof equipment: Use corrosion-resistant mounting hardware and weatherproof electrical components designed for tropical climates
• Regular cleaning protocols: Establish routine panel cleaning schedules, particularly during dry seasons when dust accumulation is highest
• Proper drainage design: Ensure installation sites have excellent drainage to prevent water pooling during heavy rains
• Ventilation considerations: Design mounting systems that allow airflow behind panels to reduce operating temperatures

Despite these potential challenges, the consistently strong solar output throughout the year makes Castanheira a highly favorable location for solar PV installations, with proper planning and installation techniques easily addressing most environmental concerns.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

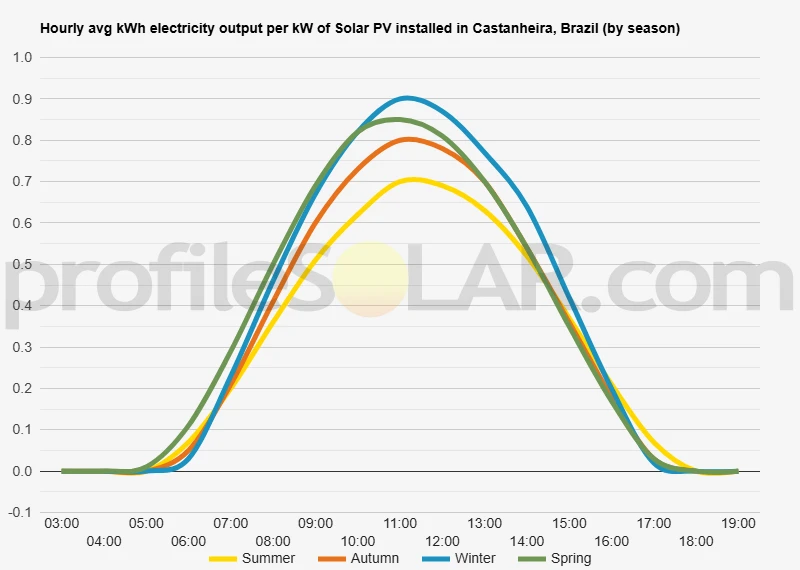

Solar output per kW of installed solar PV by season in Castanheira

Seasonal solar PV output for Latitude: -10.8793, Longitude: -58.651 (Castanheira, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 12° North in Castanheira, Brazil

To maximize your solar PV system's energy output in Castanheira, Brazil (Lat/Long -10.8793, -58.651) throughout the year, you should tilt your panels at an angle of 12° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Castanheira, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Castanheira, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 12° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° South in Summer	17° North in Autumn	27° North in Winter	5° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Castanheira, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Castanheira, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Castanheira, Brazil

Topographical Features Around Castanheira

The region surrounding Castanheira in Brazil is characterized by relatively flat to gently undulating terrain typical of the southern Amazon Basin transition zone. This area sits within the broader Mato Grosso plateau system, where elevations generally range from 200 to 400 meters above sea level. The landscape consists primarily of expansive plains with occasional low hills and gentle ridges that create subtle variations in the otherwise predominantly level topography.

The terrain here represents a transition between the Amazon rainforest to the north and the Cerrado savanna ecosystem to the south. Rolling grasslands interspersed with patches of gallery forest along waterways dominate much of the immediate area. The soil composition varies from sandy loams to clay-rich deposits, with good drainage characteristics across most of the region due to the gentle slopes and permeable underlying geology.

Several small streams and seasonal watercourses flow through the area, creating shallow valleys and minor topographical depressions. These waterways generally follow north-south orientations, flowing toward larger tributaries of the Amazon river system. The presence of these water features creates localized variations in elevation, though the overall relief remains modest throughout the region.

Optimal Areas for Large-Scale Solar Development

The extensive flat and gently sloping plains that stretch eastward and southward from Castanheira present the most favorable conditions for large-scale solar photovoltaic installations. These areas offer minimal grading requirements and allow for efficient panel arrangement across vast continuous tracts of land. The consistent elevation and gentle gradients reduce construction complexity and infrastructure costs while maximizing the potential for uniform solar exposure across installation sites.

The elevated plateau areas to the southeast of Castanheira are particularly well-suited for solar development due to their combination of level terrain and slightly higher elevations that provide excellent atmospheric conditions. These locations benefit from reduced atmospheric moisture compared to lower-lying areas, while maintaining the topographical advantages of minimal slope variation. The stable geological conditions in these plateau regions also provide reliable foundations for large-scale solar infrastructure.

Areas with good road access and proximity to existing electrical transmission infrastructure, particularly those along the major transportation corridors extending south and east from the town, offer additional advantages for solar development. The open grassland areas in these zones require minimal vegetation clearing while providing the expansive flat surfaces necessary for utility-scale solar installations. The well-drained soils and stable terrain in these locations minimize environmental concerns and construction challenges associated with large solar projects.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
