Solar Energy Potential in Castelo, Espírito Santo, Brazil

Castelo, Espírito Santo, Brazil, located at latitude -20.5367 and longitude -41.2047, offers promising conditions for solar energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns, with seasonal variations defined more by wet and dry periods rather than extreme temperature changes. The solar energy production potential in Castelo demonstrates good year-round performance, though with noticeable seasonal fluctuations. During summer months, solar panels can generate approximately 6.12 kWh per day for each kilowatt of installed capacity, representing the peak production period. Autumn follows with a slightly reduced output of 5.50 kWh per day. Winter shows the lowest generation at 4.56 kWh per day, while spring rebounds to 5.13 kWh per day per kilowatt installed.

Optimal Panel Positioning

For maximizing solar energy capture in Castelo, Espírito Santo, fixed solar panels should be installed at a tilt angle of 19 degrees facing North. This specific angle has been calculated to optimize year-round energy production by accounting for the location's position relative to the sun's path throughout the year.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production in Castelo. The region experiences a distinct rainy season, typically during summer months, which can temporarily reduce solar output despite this being otherwise the most productive season. Cloud cover during these wet periods may significantly diminish energy generation. High humidity levels common in tropical locations can lead to accelerated degradation of solar equipment if not properly protected. Additionally, dust accumulation during dry seasons can gradually reduce panel efficiency if regular maintenance is neglected.

Preventative Measures

To maximize solar energy production in Castelo, Espírito Santo, several preventative measures should be considered:

• Installing panels with high-quality protective coatings resistant to humidity and moisture damage
• Implementing regular cleaning schedules, particularly during dry seasons when dust accumulation is highest
• Considering slightly oversized systems to compensate for reduced output during the rainy season
• Using microinverters or power optimizers to minimize the impact of partial shading from cloud cover
• Ensuring proper drainage around ground-mounted systems to prevent flooding during heavy rains

With these considerations addressed, Castelo presents a favorable location for solar PV installation, offering good energy production potential throughout the year with the highest yields during summer and autumn months.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

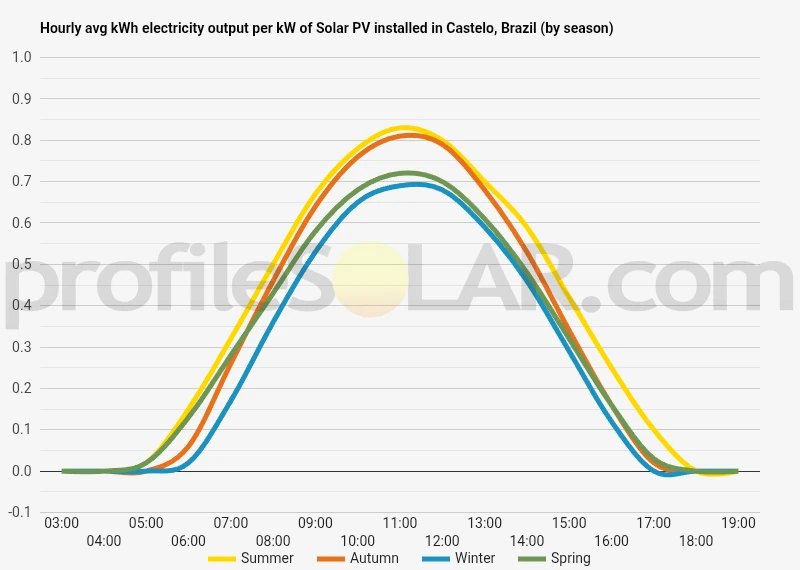

Solar output per kW of installed solar PV by season in Castelo

Seasonal solar PV output for Latitude: -20.5367, Longitude: -41.2047 (Castelo, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Castelo, Brazil

To maximize your solar PV system's energy output in Castelo, Brazil (Lat/Long -20.5367, -41.2047) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Castelo, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Castelo, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	26° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Castelo, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Castelo, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Castelo, Brazil

The topography around Castelo, Brazil is characterized by dramatic and varied terrain within the state of Espírito Santo. This region sits within the Atlantic Forest biome and features a diverse landscape dominated by mountainous formations, valleys, and undulating hills. Castelo itself is nestled in a valley surrounded by mountains of the Serra do Castelo range, which forms part of the larger Serra da Mantiqueira mountain system. The elevation in the Castelo area varies significantly, with the town center situated at approximately 100 meters above sea level, while the surrounding mountains rise to heights exceeding 1,500 meters in some places. This mountainous topography creates numerous microclimates throughout the region, with temperature and precipitation patterns varying based on elevation and aspect.

Mountain Features

The mountains surrounding Castelo display steep slopes and irregular profiles typical of Brazil's eastern highlands. These mountains are part of ancient geological formations that have undergone extensive weathering and erosion over millions of years. The higher elevations tend to have thinner soils and more exposed rock formations, while the valleys contain deeper, more fertile soils from accumulated sediments. Several notable peaks exist in the vicinity, including Pedra do Forno Grande, which reaches approximately 2,039 meters above sea level. These prominent geological features not only define the visual landscape but also influence local weather patterns, creating rain shadows and wind corridors that affect the distribution of precipitation and sunshine.

Hydrological Features

The region contains numerous watercourses, with the main river being the Rio Castelo, which flows through the municipality. This river and its tributaries have carved valleys between the mountain ranges, creating a network of smaller plains and terraced landscapes. These river systems have played a significant role in shaping the topography through erosion and sediment deposition. Several small lakes and reservoirs are scattered throughout the area, many resulting from both natural processes and human intervention for agricultural and municipal water supplies. These water bodies occupy the lower elevations of the landscape and are often surrounded by more gently sloping terrain.

Vegetation and Land Use

The natural vegetation of the region varies with elevation and aspect. Lower elevations and valleys historically supported dense Atlantic Forest, though much has been converted to agricultural use, particularly coffee plantations, which are well-suited to the hilly terrain. Higher elevations still retain some native forest cover, especially on steeper slopes unsuitable for cultivation. The pattern of forest clearing has created a mosaic landscape where patches of native vegetation intermingle with agricultural areas and human settlements. This fragmented landscape pattern is visible throughout the municipality and surrounding areas.

Solar PV Suitability

For large-scale solar photovoltaic development, the most suitable areas near Castelo would be the relatively flat plateaus and gentler slopes found at moderate elevations. These areas offer several advantages for solar installation: The plateaus located to the east and northeast of Castelo, where the terrain begins to flatten out toward the coast, present promising opportunities. These areas have more consistent topography with gradual slopes that minimize the engineering challenges and costs associated with site preparation. The reduced shadowing effect from nearby mountains also ensures more consistent solar exposure throughout the day. Some of the broader valley floors, particularly those oriented east-west, could also accommodate larger solar installations. These valleys typically have good solar access during mid-day periods when solar radiation is most intense. The Rio Castelo valley contains several wider sections that could potentially host solar facilities while avoiding flood-prone areas immediately adjacent to the river. The gently rolling hills in the southeastern portion of the municipality offer another potential zone for development. These areas have sufficient elevation to avoid morning fog that sometimes forms in the lowest valleys but are not so high as to experience the increased cloud cover common at the highest elevations. Areas to avoid would include the steepest mountain slopes, particularly those facing south, which receive significantly less direct sunlight in the Southern Hemisphere. The densely forested conservation areas and the most productive agricultural lands should also be excluded from consideration to minimize environmental impacts and preserve food production capacity. The northwestern regions of the municipality, where some mining activities occur, might offer opportunities for dual land use or reclamation projects that incorporate solar development on previously disturbed lands, providing environmental and economic benefits simultaneously.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
