Castro, Paraná, Brazil, located in the Southern Sub Tropics at coordinates -24.8307, -49.857, presents a moderately favorable location for year-round solar energy generation, though with notable seasonal variations that potential solar installers should understand.

Seasonal Solar Performance

The solar energy output at Castro varies significantly throughout the year. Summer delivers the strongest performance at 6.34 kWh per day per kW of installed solar capacity, making it the prime season for solar generation. Spring follows as the second-best performing season with 5.38 kWh per day per kW, while autumn drops to 4.77 kWh per day per kW. Winter presents the most challenging conditions with only 4.02 kWh per day per kW of production. This seasonal pattern means that Castro experiences a substantial 58% difference between peak summer and minimum winter solar output. The strongest solar generation period spans from October through March (spring and summer), while the weaker production months fall between April and September (autumn and winter).

Optimal Panel Configuration

For maximum year-round energy production at Castro, Paraná, solar panels should be installed at a fixed tilt angle of 22 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and weighting the angles based on actual solar irradiance data and daily photovoltaic potential.

Environmental and Weather Challenges

Castro's location in the Southern Sub Tropics presents several environmental factors that could impact solar energy production:

• High humidity and frequent rainfall: The subtropical climate brings substantial moisture and regular precipitation, especially during summer months, which can reduce solar irradiance and create more cloudy days
• Hail risk: The region experiences occasional severe thunderstorms that can produce hail, potentially damaging solar panels
• Temperature fluctuations: Significant seasonal temperature variations can affect panel efficiency and cause thermal stress on equipment
• Dust and pollen accumulation: The agricultural nature of the region can lead to dust, pollen, and organic debris settling on panels

Preventative Measures for Better Performance

Several installation strategies can help maximize solar energy production despite these environmental challenges: Installing panels with anti-reflective and hydrophobic coatings can help shed water more effectively and reduce soiling from dust and organic matter. These coatings also help maintain efficiency during the frequent rain events common in subtropical climates. Choosing panels with higher impact resistance ratings and reinforced mounting systems provides better protection against hail damage. Some installers also recommend slightly increasing the tilt angle beyond the optimal 22 degrees to improve water runoff and self-cleaning capabilities. Implementing a regular cleaning schedule becomes particularly important in Castro's climate. Monthly cleaning during dry periods and post-storm inspections can prevent significant efficiency losses from accumulated debris. Proper drainage around ground-mounted systems and ensuring adequate ventilation behind panels helps manage the high humidity levels that could otherwise lead to reduced performance and potential equipment degradation over time. Castro offers reasonable solar potential for much of the year, but the pronounced seasonal variation and subtropical weather patterns require careful planning and maintenance to achieve optimal long-term performance from solar installations.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

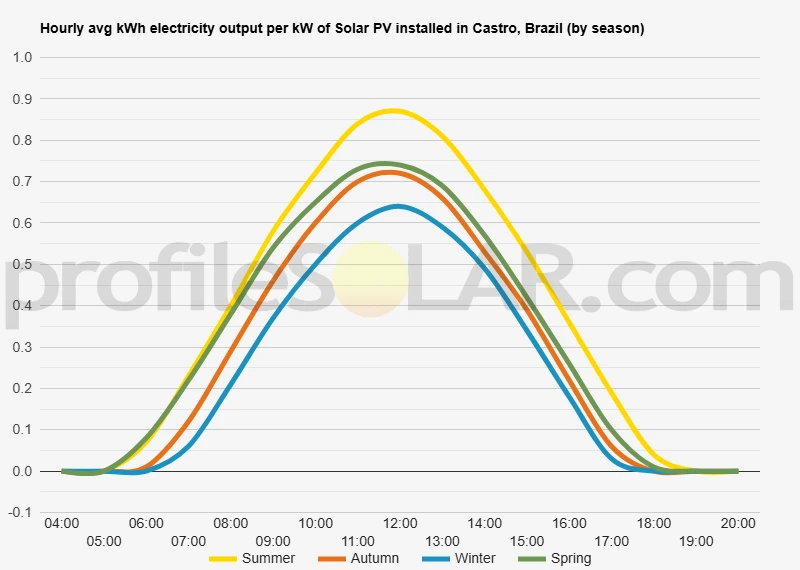

Solar output per kW of installed solar PV by season in Castro

Seasonal solar PV output for Latitude: -24.8307, Longitude: -49.857 (Castro, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° North in Castro, Brazil

To maximize your solar PV system's energy output in Castro, Brazil (Lat/Long -24.8307, -49.857) throughout the year, you should tilt your panels at an angle of 22° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Castro, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Castro, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° North in Summer	30° North in Autumn	40° North in Winter	18° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Castro, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Castro, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Castro, Brazil

Topographical Characteristics of Castro, Brazil

Castro is situated in the state of Paraná in southern Brazil, positioned within the Second Plateau region of the state's distinctive three-plateau geological formation. The city sits at an elevation of approximately 1,000 meters above sea level, making it one of the higher-altitude municipalities in Paraná. This elevated position places Castro within the Campos Gerais region, characterized by rolling hills, expansive grasslands, and relatively gentle topographical variations.

The landscape around Castro features predominantly undulating terrain with moderate slopes and broad valleys. The region is part of the Paraná Plateau, which was formed by ancient volcanic activity that created extensive basaltic formations. These geological foundations have resulted in fertile soils and a topography that transitions gradually between elevated areas and lower-lying valleys, rather than featuring dramatic elevation changes or steep mountainous terrain.

The surrounding countryside is marked by extensive agricultural lands, with large open fields that stretch across the gently rolling landscape. Natural vegetation in the area includes mixed grasslands and patches of Araucaria forest, though much of the original forest cover has been cleared for agricultural purposes over the decades. The terrain is generally well-drained, with several small rivers and streams flowing through the valleys, creating a network of waterways that contribute to the region's agricultural productivity.

Optimal Areas for Large-Scale Solar Development

The topographical characteristics around Castro present several advantages for large-scale solar photovoltaic installations. The extensive areas of gently rolling terrain provide ideal conditions for solar farms, as they offer sufficient space for panel arrays while maintaining relatively consistent elevation profiles that minimize shading issues between panel rows.

The most suitable locations for solar development would be the broad, open agricultural areas extending to the north and northwest of Castro, where the terrain is particularly flat to gently undulating. These areas benefit from minimal topographical obstructions and offer the large contiguous land parcels necessary for utility-scale solar installations. The consistent elevation and gradual slopes in these regions would facilitate efficient panel placement and maintenance access.

Areas to the east and southeast of Castro also show promise, particularly where the landscape opens into wider valleys with southern-facing slopes. These locations would benefit from optimal solar exposure while maintaining the gentle gradients that make construction and maintenance more manageable. The well-drained nature of the soils in these areas would also be advantageous for solar infrastructure development.

The higher elevation of the Castro region compared to other parts of Paraná provides additional benefits for solar installations, including clearer atmospheric conditions and reduced humidity levels that can affect panel efficiency. The open grassland areas that characterize much of the surrounding landscape offer minimal shading from vegetation, while the relatively stable geological foundation of the basaltic plateau provides solid ground conditions for mounting systems.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
