Solar Energy Potential in Cataguases, Minas Gerais, Brazil

Cataguases, Minas Gerais, Brazil, located at latitude -21.3462 and longitude -42.6477, offers promising conditions for solar photovoltaic (PV) energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns compared to regions at higher latitudes. The seasonal solar production shows a clear pattern with varying energy output across the year. During summer months, solar panels can generate approximately 6.45 kWh per day for each kilowatt of installed capacity, making this the most productive season. Autumn sees a moderate decrease to 5.40 kWh/day, while winter represents the annual low point with 4.49 kWh/day. Spring performance improves to 5.17 kWh/day as daylight increases.

Optimal Panel Installation

For fixed solar panel installations in Cataguases, Minas Gerais, the ideal tilt angle to maximize year-round energy production is 20 degrees facing North. This specific angle has been calculated to optimize solar capture across seasonal variations, accounting for the Earth's elliptical orbit and the location's position in the Southern Hemisphere.

Environmental and Weather Considerations

Several factors could potentially impact solar production in Cataguases:

• Heavy rainfall during the wet season can reduce solar efficiency due to cloud cover and direct precipitation on panels.
• High humidity levels may cause condensation on panels, potentially reducing light transmission.
• Dust accumulation is common in tropical regions, particularly during dry seasons.
• Occasional tropical storms could damage installations if not properly secured.

Preventative Measures

To maximize energy production despite these challenges, several preventative measures are recommended:

• Install self-cleaning panels or implement regular cleaning schedules, especially during dry seasons when dust accumulation is highest.
• Use corrosion-resistant mounting hardware suitable for high-humidity environments.
• Consider slight adjustments to the tilt angle (±5°) based on whether wet or dry season production is prioritized.
• Install robust mounting systems rated for tropical storm conditions.
• Implement lightning protection systems, as thunderstorms are common in tropical regions.

Despite the seasonal variations, Cataguases maintains relatively strong solar potential throughout the year. The difference between the highest producing season (summer) and lowest (winter) is less dramatic than in temperate regions, making this location quite favorable for consistent solar energy generation with appropriate system design and maintenance.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

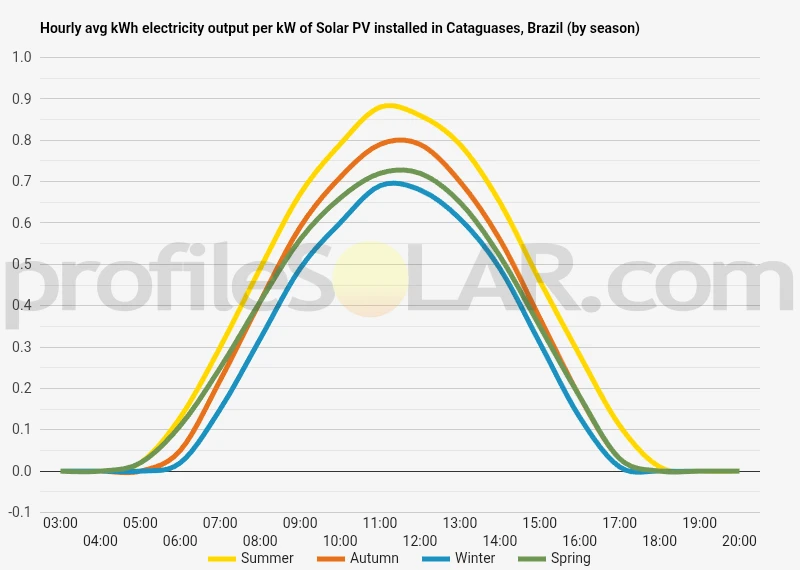

Solar output per kW of installed solar PV by season in Cataguases

Seasonal solar PV output for Latitude: -21.3462, Longitude: -42.6477 (Cataguases, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Cataguases, Brazil

To maximize your solar PV system's energy output in Cataguases, Brazil (Lat/Long -21.3462, -42.6477) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cataguases, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cataguases, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	27° North in Autumn	37° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cataguases, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cataguases, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cataguases, Brazil

The terrain surrounding Cataguases, Brazil is characterized by rolling hills and valleys typical of the Atlantic Forest region in the state of Minas Gerais. Cataguases sits in the Zona da Mata region at an elevation of approximately 170 meters above sea level, nestled within the Paraíba do Sul river basin. The landscape features undulating topography with moderate elevation changes, creating a patchwork of hills interspersed with flatter areas along river valleys.

Surrounding Terrain Features

The broader region around Cataguases presents a varied topographical profile. To the north and west, the terrain gradually rises toward the interior highlands of Minas Gerais, with scattered hills becoming more pronounced. The southern and eastern approaches to the city feature relatively gentler slopes as the land descends toward the state of Rio de Janeiro. The Paraíba do Sul River and its tributaries have carved natural valleys throughout the region, creating natural drainage pathways. Vegetation in the area historically consisted of dense Atlantic Forest, though much has been converted to agricultural use, pastureland, and urban development over centuries of settlement. The remaining forest patches typically occupy steeper hillsides where agriculture is less practical.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, several areas in the vicinity of Cataguases offer promising characteristics. The most suitable locations would be: The gently sloping plateaus to the north and northwest of Cataguases present favorable conditions for solar development. These areas offer relatively flat terrain with minimal shadowing from surrounding hills, providing consistent sun exposure throughout the day. The moderate elevation also contributes to slightly reduced temperatures compared to lower-lying areas, which can benefit PV panel efficiency. Several cleared agricultural areas that feature south-facing slopes (in the Southern Hemisphere, north-facing slopes receive more direct sunlight) would be particularly advantageous for solar installations. These locations naturally maximize solar radiation capture without requiring extensive land recontouring. The broader valleys along the Paraíba do Sul River basin, particularly sections with minimal flooding risk that have already been cleared of dense vegetation, offer expansive flat areas suitable for large-scale installations. These locations typically have good road access, simplifying construction and maintenance logistics. Areas to avoid would include the steeper hillsides with gradients exceeding 15-20 degrees, densely forested sections that would require significant clearing, and low-lying areas prone to seasonal flooding or morning fog accumulation, which could reduce solar generation potential. The region's proximity to existing transmission infrastructure, particularly near the urban center of Cataguases, also enhances the practicality of solar development in the surrounding rural areas, potentially reducing interconnection costs for new solar facilities.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
