Solar Energy Potential in Catanduva, São Paulo, Brazil

Catanduva, São Paulo, Brazil, situated in the tropical region at latitude/longitude -21.1259, -48.9641, offers promising conditions for solar photovoltaic (PV) energy generation throughout the year. Located in the tropics, this municipality benefits from relatively consistent sunlight patterns compared to locations closer to the poles. The seasonal solar generation potential shows notable variation throughout the year. Summer months produce the highest electricity output at 6.85 kWh per day for each kilowatt of installed solar capacity. Spring follows closely with 6.34 kWh/day. Autumn sees a moderate decrease to 5.69 kWh/day, while winter represents the annual low point with 4.97 kWh/day per installed kilowatt. This seasonal pattern reflects Catanduva's tropical location, where the difference between the highest and lowest producing seasons is less dramatic than in temperate regions. Even during winter, the solar output remains substantial at nearly 5 kWh/day, making year-round solar generation viable.

Optimal Panel Installation

For fixed solar panel installations in Catanduva, São Paulo, the ideal tilt angle to maximize year-round electricity production is 19 degrees facing North. This specific angle optimizes solar capture across seasons, accounting for the sun's changing position throughout the year and the site's location in the Southern Hemisphere.

Environmental and Weather Considerations

Several environmental factors may affect solar production in Catanduva:

• Dust and agricultural particulates: Catanduva's location in an agricultural region means dust and particulate matter can accumulate on panels, potentially reducing efficiency by 5-15% if not addressed.
• Seasonal rainfall patterns: The region experiences a distinct wet season that can temporarily reduce solar output due to cloud cover, though rain helps naturally clean panels.
• High temperatures: Summer temperatures regularly exceeding 30°C (86°F) can slightly reduce panel efficiency, as most photovoltaic panels lose efficiency above 25°C (77°F).

Preventative Measures

To maximize solar production in Catanduva, São Paulo, several practical measures can be implemented: Installing panels with a few extra inches of elevation from the roof or ground surface allows for better airflow and cooling. Regular cleaning schedules, particularly during the dry season when dust accumulation is highest, will maintain optimal performance. Using panels with low temperature coefficients (those designed to maintain better efficiency at higher temperatures) is particularly beneficial for this tropical location. Additionally, implementing a slight adjustment to the standard 19-degree tilt angle might be considered during installation to account for local microclimatic factors, though this would require site-specific assessment by qualified solar installers.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

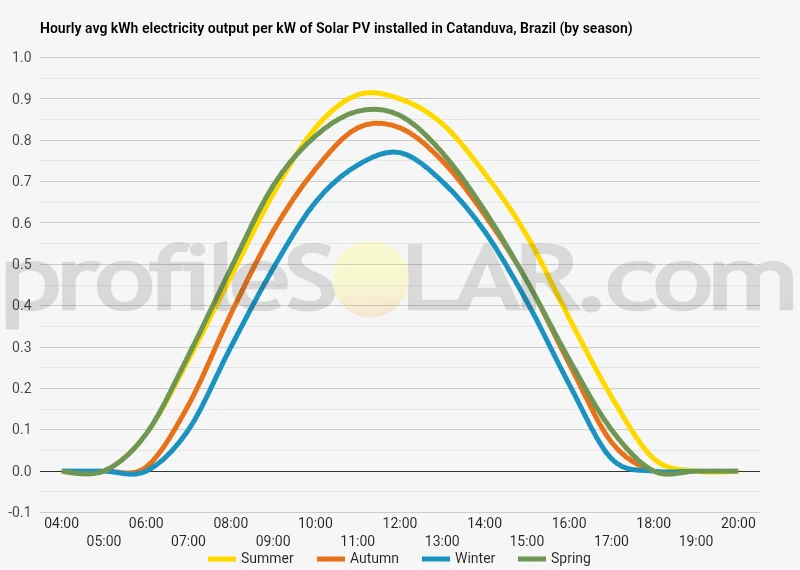

Solar output per kW of installed solar PV by season in Catanduva

Seasonal solar PV output for Latitude: -21.1259, Longitude: -48.9641 (Catanduva, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Catanduva, Brazil

To maximize your solar PV system's energy output in Catanduva, Brazil (Lat/Long -21.1259, -48.9641) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Catanduva, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Catanduva, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	27° North in Autumn	37° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Catanduva, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Catanduva, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Catanduva, Brazil

Catanduva sits in the northwestern portion of São Paulo state in Brazil, characterized by gently rolling hills and plateau landscapes typical of the region. The terrain around Catanduva features modest elevation changes, with the city itself situated at approximately 500 meters above sea level. The topography consists primarily of undulating plains that gradually rise and fall across the landscape, creating a series of low hills and shallow valleys. The surrounding area belongs to the broader Paraná Plateau geological formation, with the predominant soil types being the fertile terra roxa (purple earth), which developed from basaltic rock weathering. This region has been extensively modified by agricultural activities, particularly sugarcane cultivation, which has replaced much of the original Atlantic Forest vegetation.

Hydrography and Drainage

The São Domingos River flows through the Catanduva region, forming part of the Turvo/Grande watershed basin. Numerous smaller streams and tributaries create a dendritic drainage pattern across the landscape. These waterways have carved shallow valleys throughout the region, contributing to the gently undulating character of the topography.

Optimal Areas for Solar PV Development

The most suitable areas for large-scale solar photovoltaic development near Catanduva would be the elevated plateau sections that feature relatively flat terrain. These areas offer several advantages: The northwestern portions of the region, extending toward São José do Rio Preto, present particularly favorable conditions with extensive flat or gently sloping terrain. These areas experience minimal shading issues due to the absence of steep hills or mountains that could cast shadows on solar arrays. Former agricultural lands, especially those previously dedicated to sugarcane cultivation but now less productive, offer excellent opportunities for solar development. These sites typically have good road access, minimal natural vegetation requiring preservation, and suitable topographic conditions. The slightly elevated areas between Catanduva and Tabapuã provide good drainage conditions, reducing flood risk while maintaining the flat character necessary for efficient solar array installation. These plateau sections avoid the more pronounced valleys where morning fog might temporarily reduce solar efficiency.

Topographic Challenges

While generally favorable, certain areas present challenges for solar development. The riparian zones along the São Domingos River and its tributaries should be avoided due to environmental protection requirements and less favorable topography. Additionally, some sections with more pronounced hills, particularly to the southeast of Catanduva, would require more extensive land grading, increasing development costs. Areas with significant north-facing slopes (in the Southern Hemisphere) would be advantageous for maximizing solar radiation capture throughout the year. Conversely, south-facing slopes would be less optimal and might require additional engineering solutions to achieve comparable efficiency. Overall, the topography around Catanduva presents favorable conditions for solar PV development, with abundant gently sloping or flat terrain that would require minimal preparation for installation of large-scale solar facilities.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
