Catanduvas, Paraná, Brazil, located in the Southern Sub Tropics at coordinates -25.2622, -53.173, offers moderate to good conditions for year-round solar energy generation, though with significant seasonal variation that potential solar installers should carefully consider.

Seasonal Solar Performance

The location shows strong seasonal differences in solar energy production. Summer delivers the highest output at 7.02 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best performing season with 6.11 kWh per day per kW, while autumn drops to 5.30 kWh per day per kW. Winter presents the most challenging conditions with only 3.96 kWh per day per kW of installed capacity. This seasonal pattern means that summer and spring are the ideal times for solar generation at Catanduvas, Paraná, producing nearly twice as much energy as the winter months. The substantial difference between peak summer and winter production reflects the location's position in the Southern Hemisphere, where winter coincides with shorter days and lower sun angles.

Optimal Panel Configuration

For fixed panel installations at this location, the ideal tilt angle to maximize total year-round solar production is 22 degrees facing North. This angle has been calculated to optimize energy capture across all seasons by accounting for the sun's changing position throughout the year and weighting for daily solar potential.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Catanduvas:

• Subtropical humidity and moisture: The Southern Sub Tropical climate typically brings high humidity levels, which can lead to moisture buildup on solar panels and reduce their efficiency
• Seasonal rainfall patterns: Subtropical regions often experience distinct wet and dry seasons, with heavy rainfall potentially blocking sunlight and creating cloud cover during certain periods
• Temperature fluctuations: While solar panels need sunlight, excessive heat can actually reduce their efficiency, and the subtropical climate may bring temperature extremes
• Dust and debris accumulation: During dry periods, dust can accumulate on panels, while wet seasons may bring organic debris that blocks sunlight

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies can help: Regular cleaning schedules become essential, with panels needing more frequent cleaning during dusty dry periods and after storms that may deposit debris. Installing panels with adequate ventilation space underneath helps manage heat buildup and allows air circulation to keep operating temperatures optimal. Choosing high-quality panels with good moisture resistance and anti-reflective coatings can help maintain efficiency in humid conditions. Proper drainage around the installation site prevents water pooling that could create humidity problems or attract debris. Installing monitoring systems allows for quick identification of performance drops due to environmental factors, enabling prompt maintenance. Additionally, ensuring panels are mounted securely to withstand potential severe weather events common in subtropical climates protects the long-term investment. Overall, while Catanduvas presents some environmental challenges typical of subtropical locations, proper installation techniques and maintenance can help ensure reliable solar energy production throughout the year, with particularly strong performance during the summer and spring months.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

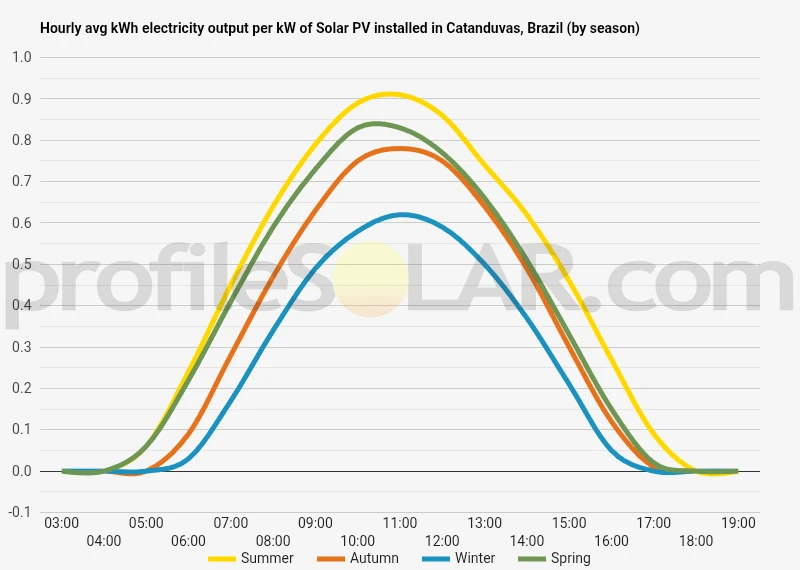

Solar output per kW of installed solar PV by season in Catanduvas

Seasonal solar PV output for Latitude: -25.2622, Longitude: -53.173 (Catanduvas, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° North in Catanduvas, Brazil

To maximize your solar PV system's energy output in Catanduvas, Brazil (Lat/Long -25.2622, -53.173) throughout the year, you should tilt your panels at an angle of 22° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Catanduvas, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Catanduvas, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° North in Summer	31° North in Autumn	40° North in Winter	18° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Catanduvas, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Catanduvas, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Catanduvas, Brazil

Topographical Features of the Catanduvas Region

The area surrounding Catanduvas in Brazil presents a moderately undulating landscape typical of the western Paraná state region. This territory sits within the broader Paraná Plateau, characterized by gently rolling hills and relatively stable terrain formed by ancient volcanic activity. The elevation in this region generally ranges between 400 to 600 meters above sea level, creating a landscape that avoids the extreme topographical challenges found in more mountainous areas of Brazil. The terrain around Catanduvas features predominantly gentle slopes interspersed with flatter valley areas and modest ridgelines. These rolling hills are the result of long-term erosional processes acting on the underlying basaltic bedrock, creating a landscape that undulates without presenting severe gradients or dramatic elevation changes. The region benefits from well-drained soils and stable geological conditions, making it suitable for various land uses including agriculture and potential renewable energy development.

Drainage Patterns and Land Use

The local watershed consists of numerous small streams and tributaries that flow through the valleys between the hills, creating a dendritic drainage pattern. These waterways have carved shallow valleys that provide natural breaks in the terrain, while the interfluves between drainage lines offer elevated, well-drained locations. The existing land use pattern shows a mix of agricultural activities, including crop cultivation and pasture lands, along with patches of remaining Atlantic Forest vegetation on steeper slopes and along watercourses. The agricultural development in the region has resulted in extensive cleared areas with relatively uniform topography, as farmers have historically selected the most workable land for cultivation. This human modification of the landscape has created numerous large, relatively flat parcels that could potentially accommodate alternative land uses while maintaining the region's economic productivity.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Catanduvas would be the elevated plateau areas and gentle south-facing slopes that offer stable, well-drained ground conditions. These areas typically feature gradients of less than five degrees, making them ideal for solar panel installation and maintenance access. The higher elevation sites also benefit from improved air circulation, which helps maintain optimal operating temperatures for photovoltaic equipment. Particularly promising areas include the broader ridgetop locations and the extensive cleared agricultural lands on the gentler slopes. These sites offer the advantage of existing access infrastructure while avoiding the complications associated with steeper terrain or poorly drained valley bottoms. The stable geological conditions throughout the region provide excellent foundation possibilities for solar mounting systems, while the moderate topography allows for efficient panel orientation and spacing. Areas to avoid for solar development would include the steeper valley sides where erosion potential increases, locations prone to seasonal flooding near watercourses, and the remaining forested areas that provide important ecological services. The optimal sites balance topographical advantages with practical considerations such as proximity to existing electrical infrastructure and transportation networks that already serve the agricultural economy of the region.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
