Solar Energy Potential in Catu, Bahia, Brazil

Catu, Bahia, Brazil, located in the tropical region at coordinates -12.3749, -38.3977, offers promising conditions for solar energy generation throughout the year. The location benefits from its tropical positioning, where sunlight remains relatively consistent year-round, with seasonal variations primarily defined by wet and dry periods rather than dramatic changes in daylight hours. The solar energy production potential in Catu demonstrates good performance across all seasons. During summer, solar panels can generate approximately 6.19kWh per day for each kilowatt installed, representing the peak production period. Spring follows closely with 5.98kWh/day, while autumn yields a respectable 5.59kWh/day. Winter shows the lowest output at 4.53kWh/day, but this figure remains substantial compared to non-tropical locations.

Seasonal Variations and Optimal Periods

The data reveals that summer and spring offer the most favorable conditions for solar energy generation in Catu. The relatively small difference between the highest and lowest seasonal outputs (approximately 1.66kWh/day) indicates consistent solar potential throughout the year, which is advantageous for reliable energy planning. For maximizing solar energy capture with fixed panels in this location, the ideal tilt angle is 11 degrees facing North. This specific angle has been calculated to optimize year-round energy production based on Catu's geographical position and the sun's path throughout the year.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production in Catu:

• Heavy rainfall during the wet season can temporarily reduce solar output due to cloud cover and direct precipitation on panels
• Dust and pollen accumulation, common in tropical areas, may gradually decrease panel efficiency if not addressed
• High humidity levels can occasionally lead to condensation on panel surfaces

Preventative Measures for Optimal Performance

To mitigate these challenges and ensure consistent energy production, several preventative measures should be considered during solar installation: Installing panels at the recommended 11-degree North-facing tilt not only maximizes energy capture but also promotes natural cleaning during rainfall events. Incorporating an automated cleaning system or establishing a regular maintenance schedule can prevent dust and pollen buildup. Using high-quality panels with anti-reflective coatings and tempered glass can improve performance in humid conditions. Additionally, ensuring proper spacing between panels and adequate ventilation can prevent overheating and maintain efficiency during the hottest periods. Overall, Catu's location offers favorable conditions for year-round solar energy generation, with relatively minor seasonal variations that can be effectively managed through proper system design and maintenance practices.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

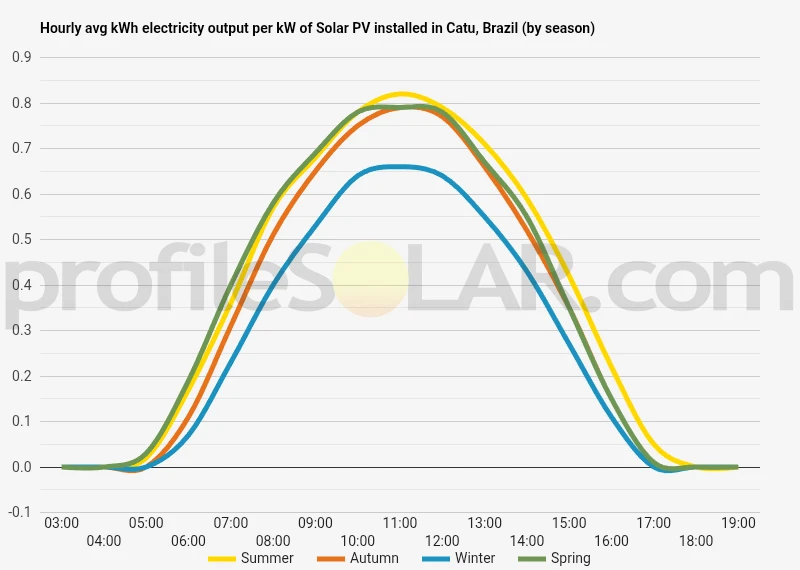

Solar output per kW of installed solar PV by season in Catu

Seasonal solar PV output for Latitude: -12.3749, Longitude: -38.3977 (Catu, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 11° North in Catu, Brazil

To maximize your solar PV system's energy output in Catu, Brazil (Lat/Long -12.3749, -38.3977) throughout the year, you should tilt your panels at an angle of 11° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Catu, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Catu, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 11° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° South in Summer	18° North in Autumn	28° North in Winter	6° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Catu, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Catu, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Catu, Brazil

The region surrounding Catu, Brazil presents a diverse topographic landscape characteristic of Brazil's northeastern interior. Located in the state of Bahia, approximately 78 kilometers north of Salvador, Catu sits within a transitional zone between coastal lowlands and the higher elevations of the Brazilian Highlands. The terrain around Catu features gently rolling hills interspersed with shallow valleys. Elevation generally ranges between 200-300 meters above sea level throughout the immediate vicinity. This moderate relief creates a landscape that undulates rather than presents dramatic changes in elevation. The topography becomes gradually more pronounced as one moves westward away from the Atlantic coast, with increasing hill formations that eventually connect to the broader Brazilian plateau. Several small rivers and streams traverse the landscape, including the Catu River itself, which has historically shaped the local topography through erosion processes. These waterways have carved shallow valleys between the rolling hills, creating natural drainage systems throughout the region.

Vegetation and Land Cover

The natural vegetation around Catu reflects a transition between coastal Atlantic Forest remnants and the drier caatinga biome. However, much of the original vegetation has been modified by human activities, particularly agriculture. The landscape today consists of a patchwork of agricultural fields, pastures, secondary forest growth, and some remaining native vegetation.

Potential Areas for Solar PV Development

When considering large-scale solar photovoltaic development near Catu, several factors related to topography become important. The most suitable areas would include: The gently sloping hillsides facing north, northeast, and northwest provide ideal orientation for solar collection throughout the year. These areas benefit from minimal shadowing effects and good exposure to the sun's path across the sky. Many of these moderately elevated areas can be found within a 15-20 kilometer radius of Catu's center. The relatively flat plateaus that top many of the region's hills offer excellent potential for solar development. These areas typically have minimal vegetation obstruction and provide natural elevation that reduces the risk of morning fog or low-level humidity interference. Several such plateaus can be identified to the west and southwest of Catu. Former agricultural lands that have been cleared present opportunities for solar development with minimal additional land preparation requirements. These areas are abundant throughout the region and often feature accessible terrain with established access roads. Areas to avoid would include the riparian zones along waterways, which tend to be more humid, potentially foggy, and ecologically sensitive. Similarly, the more densely vegetated slopes would require significant clearing, potentially increasing both environmental impact and project costs. The region's proximity to existing transmission infrastructure also enhances its suitability for solar development, as Catu's position near established energy corridors connecting to Salvador provides potential integration points for new generation capacity. The combination of moderate elevation, gently rolling terrain, and substantial areas of already-cleared land makes the broader Catu region generally favorable for solar PV development from a topographical perspective.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
